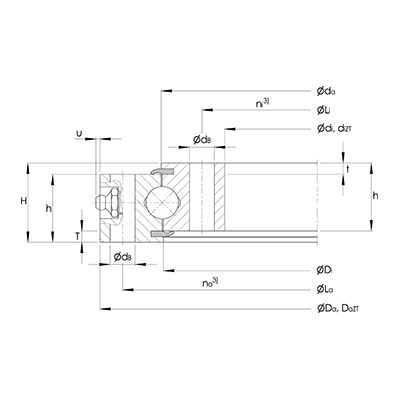

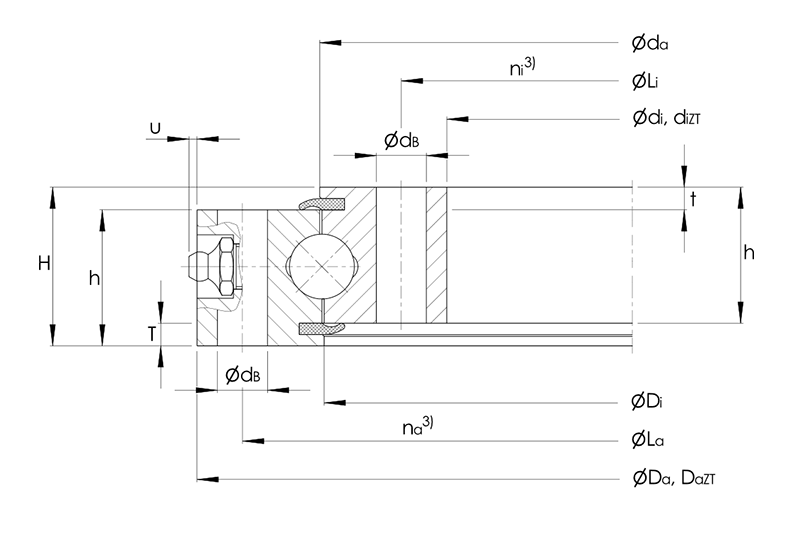

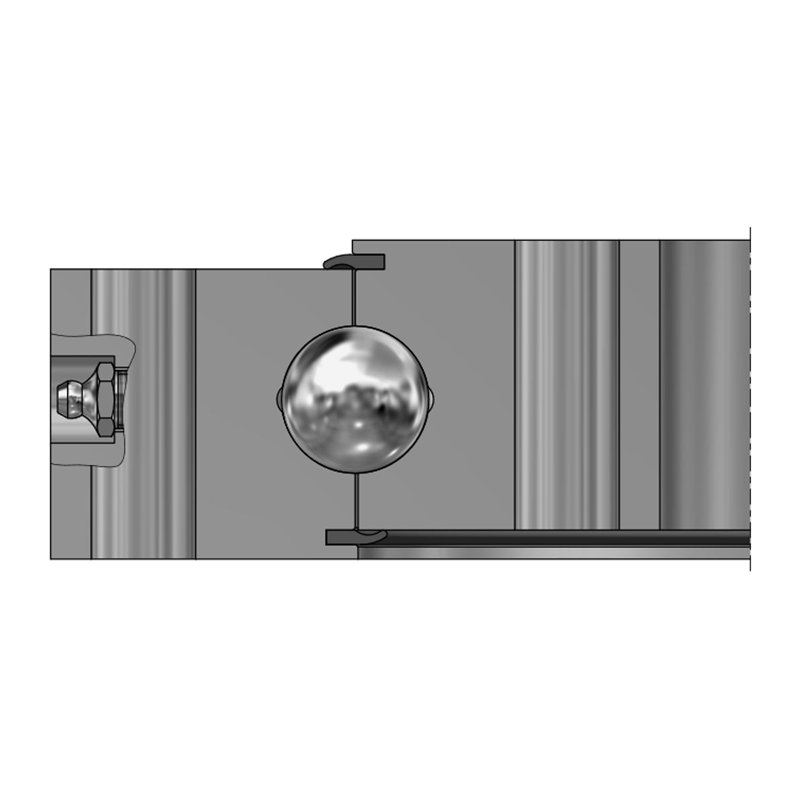

Four-point contact slewing bearing VU, non-toothed, bearing clearance selectable, sealed, Grease nipple on the circumference of the outer ring
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d[[sub]]a[[/sub]] | H | h | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d[[sub]]a[[/sub]] | H | h | |||
| mm | mm | mm | |||
| 10093853 | VU140179 | 234.00 | 35.00 | 30.00 | |
| 10093852 | VU130225 | 290.00 | 24.00 | 24.00 | |
| 10093855 | VU200220 | 302.00 | 46.00 | 41.00 | |
| 10093856 | VU200260 | 329.00 | 46.00 | 41.00 | |
| 10093854 | VU140325 | 380.00 | 35.00 | 30.00 | |
| 10093857 | VU200405 | 474.00 | 46.00 | 41.00 | |
| 10093858 | VU250380 | 485.00 | 55.00 | 50.00 | |
| 10093859 | VU250433 | 522.00 | 55.00 | 50.00 | |
| 10093860 | VU300574 | 680.00 | 68.00 | 61.00 | |
| 10093861 | VU360680 | 795.00 | 79.00 | 72.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
