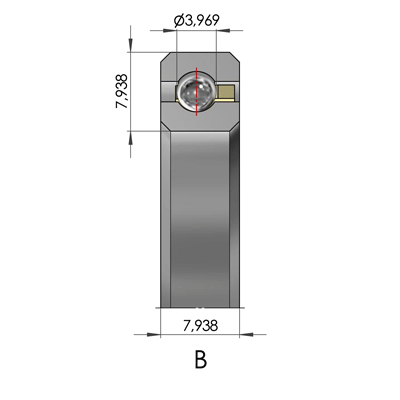

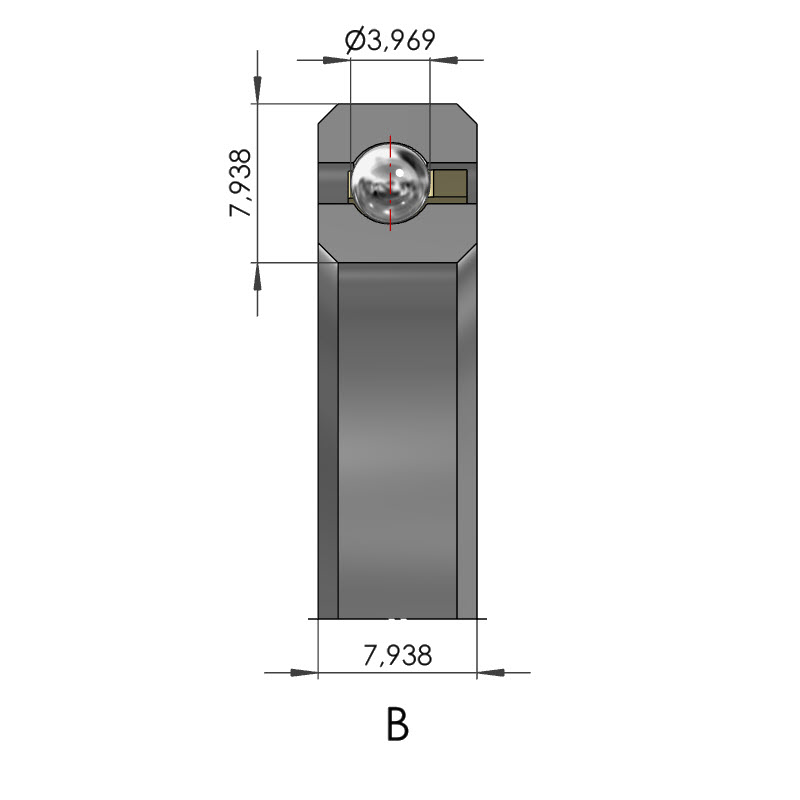

Thin section deep groove ball bearing - CSCB

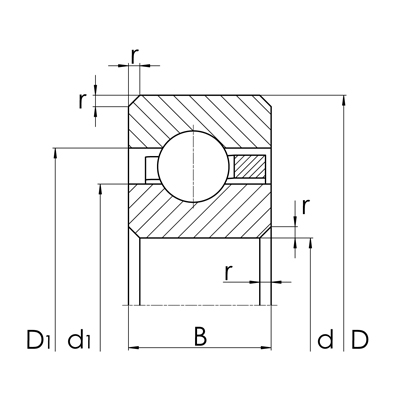

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147569 | CSCB020 | 50.80 | 66.68 | 7.94 | |
| 10147570 | CSCB025 | 63.50 | 79.38 | 7.94 | |
| 10147571 | CSCB030 | 76.20 | 92.08 | 7.94 | |
| 10147572 | CSCB035 | 88.90 | 104.78 | 7.94 | |
| 10147573 | CSCB040 | 101.60 | 117.48 | 7.94 | |
| 10147574 | CSCB042 | 107.95 | 123.83 | 7.94 | |
| 10147575 | CSCB045 | 114.30 | 130.18 | 7.94 | |
| 10157135 | CSCB047 | 120.65 | 136.53 | 7.94 | |
| 10147576 | CSCB050 | 127.00 | 142.88 | 7.94 | |
| 10157137 | CSCB055 | 139.70 | 155.58 | 7.94 | |
| 10147577 | CSCB060 | 152.40 | 168.28 | 7.94 | |
| 10147578 | CSCB065 | 165.10 | 180.98 | 7.94 | |
| 10147579 | CSCB070 | 177.80 | 193.68 | 7.94 | |
| 10147580 | CSCB075 | 190.50 | 206.38 | 7.94 | |
| 10147581 | CSCB080 | 203.20 | 219.08 | 7.94 | |
| 10157139 | CSCB090 | 228.60 | 244.48 | 7.94 | |
| 10157141 | CSCB100 | 254.00 | 269.88 | 7.94 | |
| 10157143 | CSCB110 | 279.40 | 295.28 | 7.94 | |
| 10157145 | CSCB120 | 304.80 | 320.68 | 7.94 | |
| 10157147 | CSCB140 | 355.60 | 371.48 | 7.94 | |
| 10157149 | CSCB160 | 406.40 | 422.28 | 7.94 | |
| 10157151 | CSCB180 | 457.20 | 473.08 | 7.94 | |
| 10157153 | CSCB200 | 508.00 | 523.88 | 7.94 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
