  • 52200

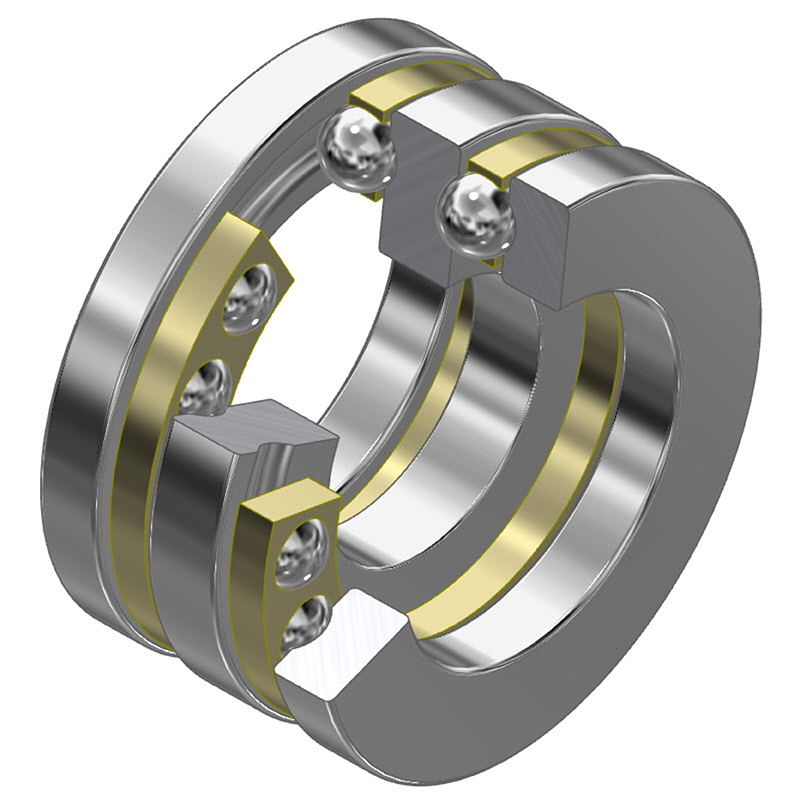

    Axial deep grove ball bearing, Serie 522, two-sided acting

    • Axial deep groove ball bearing 522
      Axial deep groove ball bearing 522
    • Axial deep groove ball bearing 522
      Axial deep groove ball bearing 522
    • Axial deep groove ball bearing 522
      Axial deep groove ball bearing 522

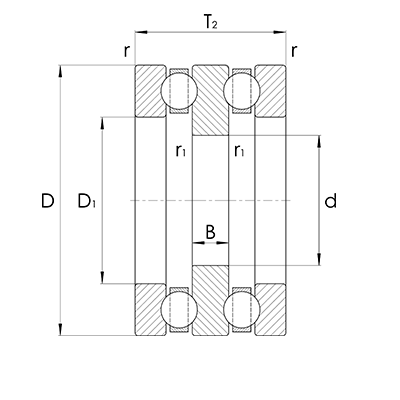

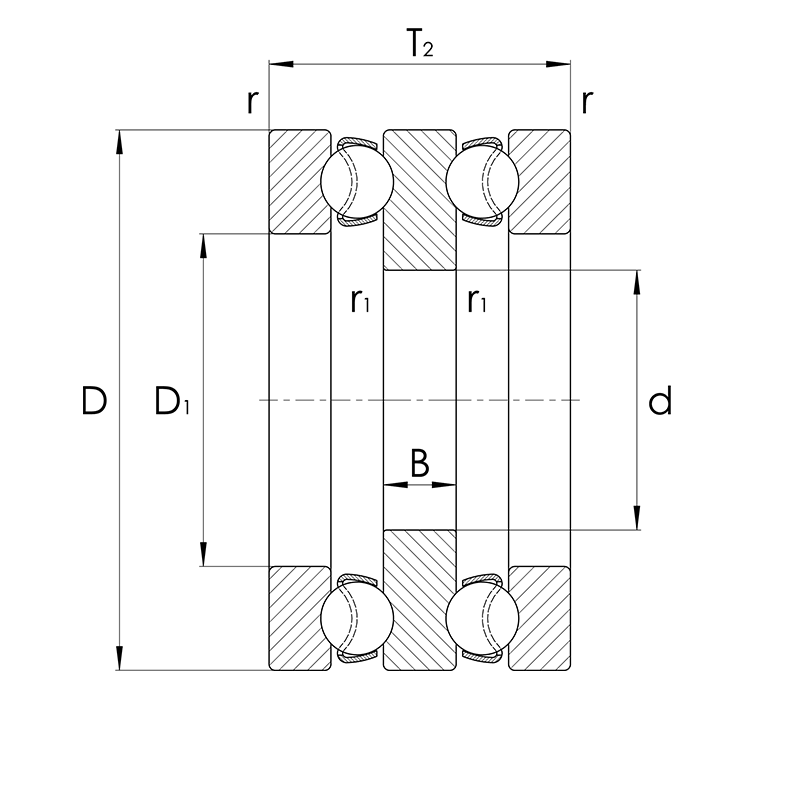

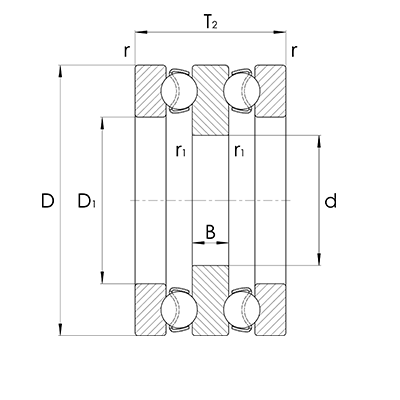

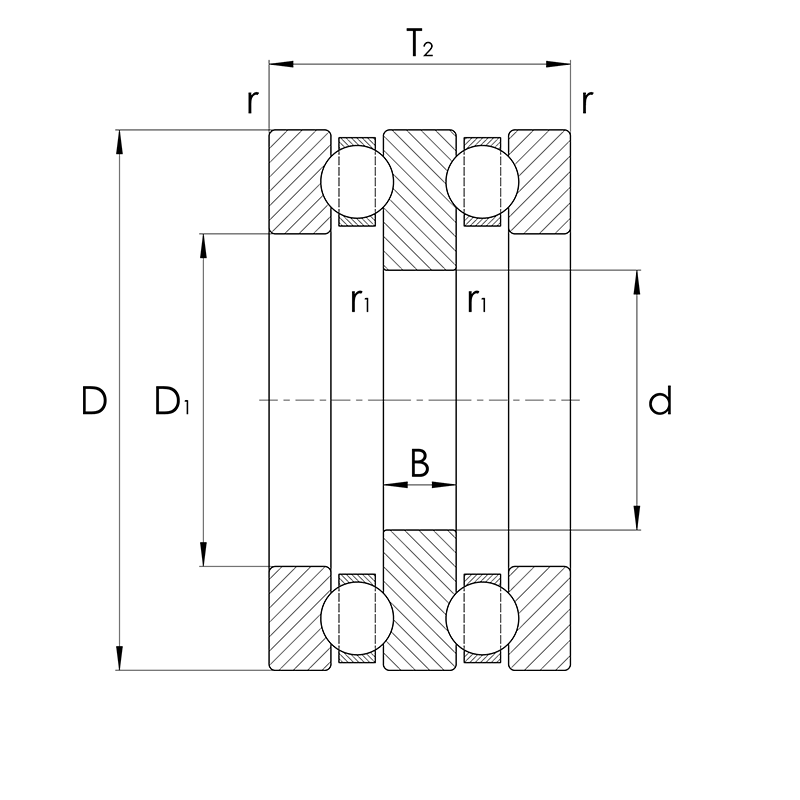

      Description Main dimensions Functions
      d D T2
      mm mm mm
      SKU Description Main dimensions Functions
      d D T2
      mm mm mm
      10082350 52202 10.00 32.00 22.00
      10082351 52204 15.00 40.00 26.00
      10082352 52205 20.00 47.00 28.00
      10082353 52206 25.00 52.00 29.00
      10082354 52207 30.00 62.00 34.00
      10082355 52208 30.00 68.00 36.00
      10082356 52209 35.00 73.00 37.00
      10082357 52210 40.00 78.00 39.00
      10082358 52211 45.00 90.00 45.00
      10082359 52212 50.00 95.00 46.00
      10082360 52213 55.00 100.00 47.00
      10082361 52214 55.00 105.00 47.00
      10082362 52215 60.00 110.00 47.00
      10082363 52216 65.00 115.00 48.00
      10082364 52217 70.00 125.00 55.00
      10082365 52218 75.00 135.00 62.00
      10082366 52220 85.00 150.00 67.00
      10082367 52222 95.00 160.00 67.00
      10082368 52224 100.00 170.00 68.00
      10082369 52226 110.00 190.00 80.00
      10082370 52228 120.00 200.00 81.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • 52300

      Axial deep groove ball bearing, Serie 523, two-sided acting

      • Axial deep groove ball bearing 523
        Axial deep groove ball bearing 523
      • Axial deep groove ball bearing 523
        Axial deep groove ball bearing 523
      • Axial deep groove ball bearing 523
        Axial deep groove ball bearing 523
        Description Main dimensions Functions
        d D T2
        mm mm mm
        SKU Description Main dimensions Functions
        d D T2
        mm mm mm
        10082375 52305 20.00 52.00 34.00
        10082376 52306 25.00 60.00 38.00
        10082377 52307 30.00 68.00 44.00
        10082378 52308 30.00 78.00 49.00
        10082379 52309 35.00 85.00 52.00
        10082380 52310 40.00 95.00 58.00
        10082381 52311 45.00 105.00 64.00
        10082382 52312 50.00 110.00 64.00
        10082383 52313 55.00 115.00 65.00
        10082384 52314 55.00 125.00 72.00
        10082385 52315 60.00 135.00 79.00
        10082386 52316 65.00 140.00 79.00
        10365079 52317 70.00 150.00 87.00
        10365080 52318 75.00 155.00 88.00
        10082387 52320 85.00 170.00 97.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      • 52400

        Axial deep groove ball bearing, Serie 524, two-sided acting

        • Axial deep groove ball bearing
          Axial deep groove ball bearing
        • Axial deep groove ball bearing
          Axial deep groove ball bearing
        • Axial deep groove ball bearing
          Axial deep groove ball bearing
          Description Main dimensions Functions
          d D T
          mm mm mm
          SKU Description Main dimensions Functions
          d D T
          mm mm mm
          10082388 52406 20.00 70.00 0
          10082389 52407 25.00 80.00 0
          10082390 52408 30.00 90.00 0
          10082391 52409 35.00 100.00 0
          10365081 52410 40.00 110.00 0
          10082392 52411 45.00 120.00 0
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

        These may also interest you.


        Any questions?

        You can contact our sales representative in the time from 07:00 to 15:00 (CET)

        Catalog

        A catalog for Axial deep groove ball bearing can be download from here.

        Service Bulletin

        There are no documents for Axial deep groove ball bearing published, yet. Please contact your personal sales representative if you have further questions.
