SCH

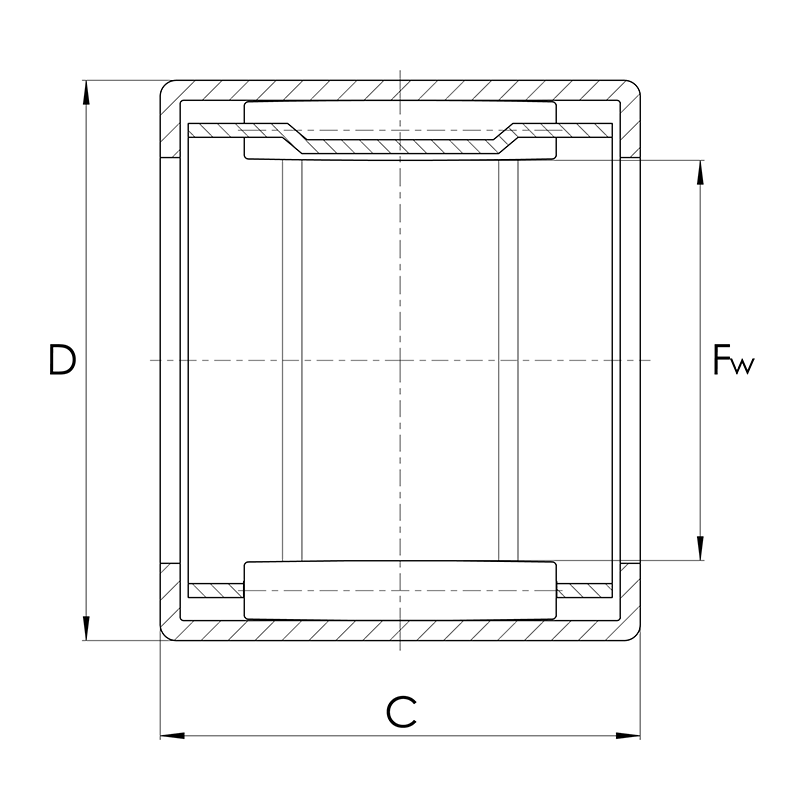

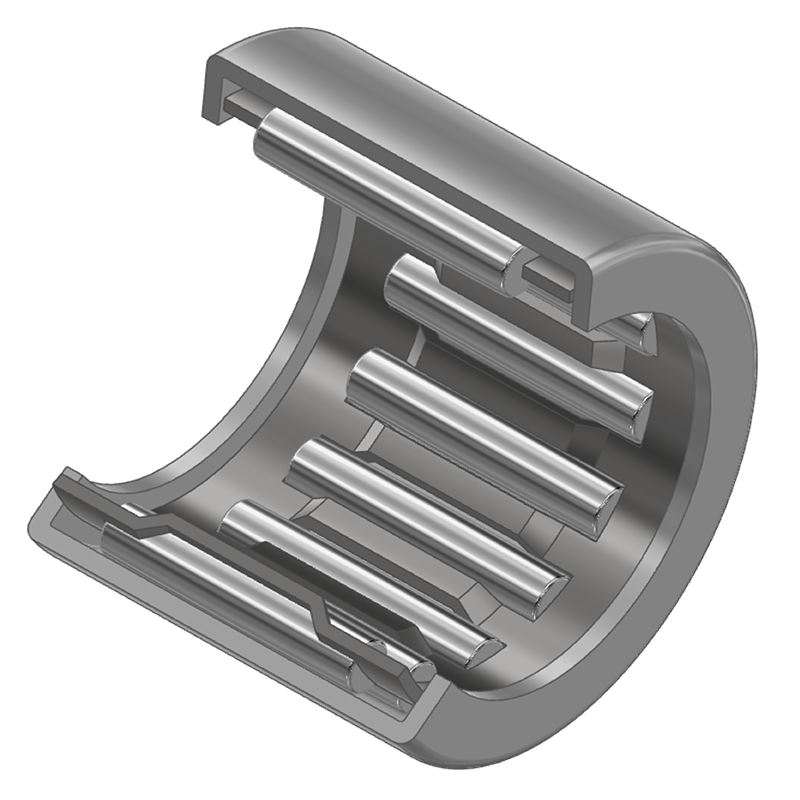

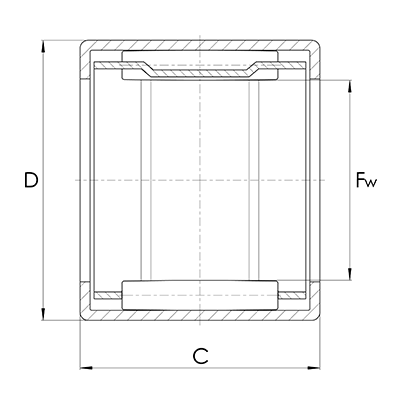

Nadelhülse SCH, ohne Dichtung
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10174556 SCH57 7,94 14,29 11,11 10174557 SCH68 9,53 15,88 12,70 10174558 SCH78 11,11 17,46 12,70 10174559 SCH87 12,70 19,05 11,11 10174560 SCH88 12,70 19,05 12,70 10174561 SCH812 12,70 19,05 19,05 10323953 SCH810 12,70 19,05 15,88 10323956 SCH910 14,29 20,64 15,88 10174562 SCH98 14,29 20,64 12,70 10174563 SCH912 14,29 20,64 19,05 10174565 SCH1010 15,88 22,23 15,88 10323940 SCH1012 15,88 22,23 19,05 10174564 SCH108 15,88 22,23 12,70 10174566 SCH1016 15,88 22,23 25,40 10174568 SCH1112 17,46 23,81 19,05 10323941 SCH117 17,46 23,81 11,11 10174567 SCH1110 17,46 23,81 15,88 10174582 SCH1212 19,05 26,99 19,05 10174569 SCH1310 20,64 28,58 15,88 10323942 SCH1312 20,64 28,58 19,05 10174571 SCH1416 22,23 30,16 25,40 10174570 SCH1412 22,23 30,16 19,05 10174573 SCH1616 25,40 33,34 25,40 10174572 SCH1612 25,40 33,34 19,05 10323944 SCH1610 25,40 33,34 15,88 10174576 SCH1816 28,58 38,10 25,40 10174577 SCH1818 28,58 38,10 28,58 10174575 SCH1810 28,58 38,10 15,88 10174574 SCH1812 28,58 38,10 19,05 10323947 SCH1820 28,58 38,10 31,75 10174578 SCH208 31,75 41,28 12,70 10174579 SCH2016 31,75 41,28 25,40 10174580 SCH2020 31,75 41,28 31,75 10323948 SCH2012 31,75 41,28 19,05 10174581 SCH2212 34,93 44,45 19,05 10323950 SCH2216 34,93 44,45 25,40 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
SCH..-P

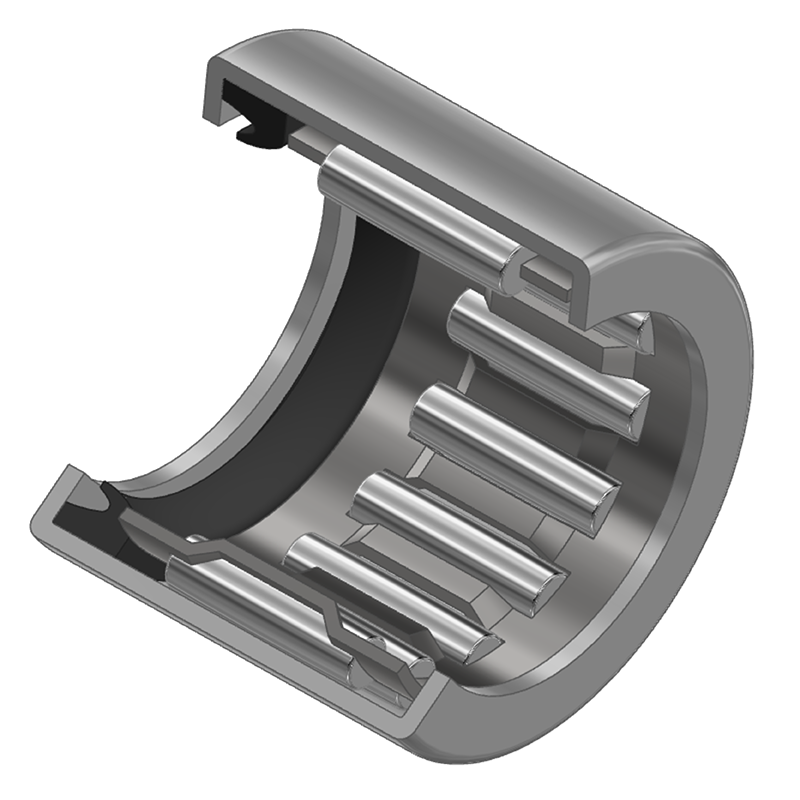

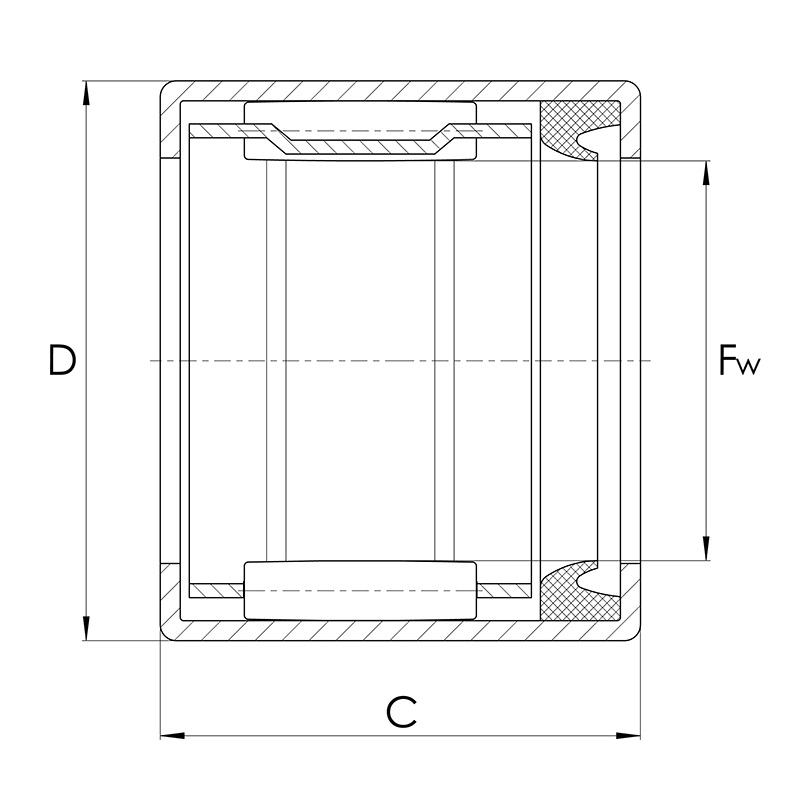

Nadelhülse SCH..-P
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10323951 SCH58-P 7,94 14,29 12,70 10174548 SCH79-P 11,11 17,46 14,29 10174549 SCH913-P 14,29 20,64 20,64 10174550 SCH1413-P 22,23 30,16 20,64 10147826 SCH1614-P 25,40 33,34 22,23 10323945 SCH1613-P 25,40 33,34 20,64 10174551 SCH2018-P 31,75 41,28 28,58 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
SCE..-PP

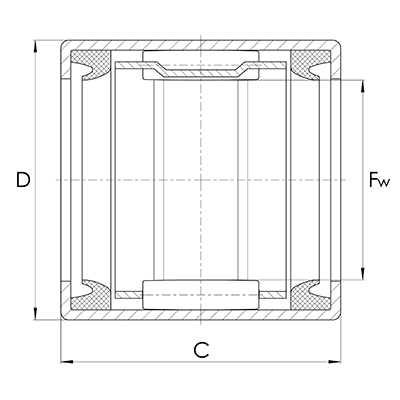

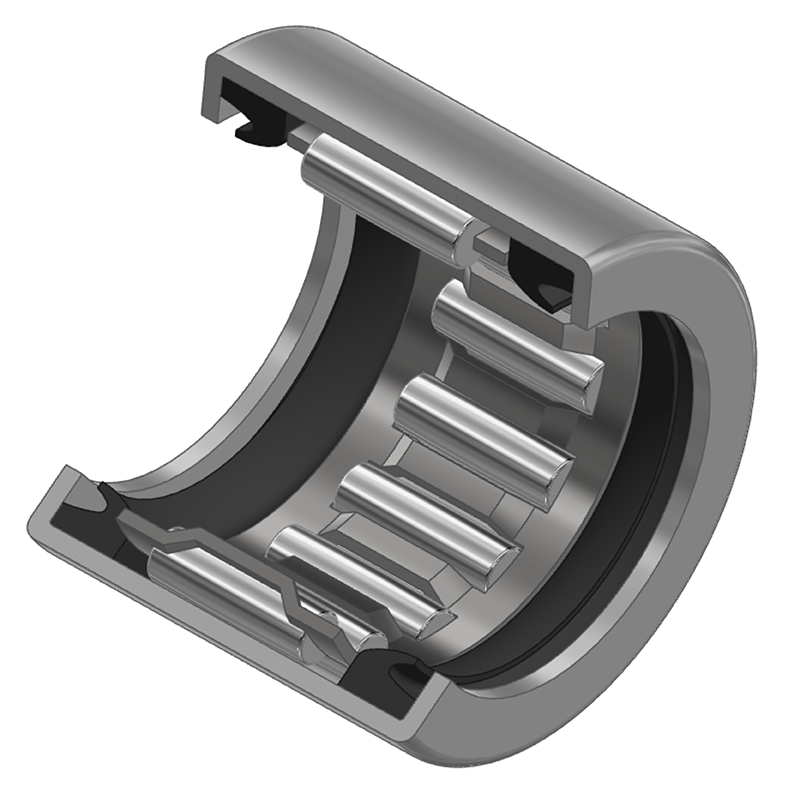

Nadelhülse SCH..-PP
Description Main dimensions Functions Fw D C mm mm mm SKU Description Main dimensions Functions Fw D C mm mm mm 10174552 SCH710-PP 11,11 17,46 15,88 10323954 SCH813-PR 12,70 19,05 20,64 10323957 SCH910-PR 14,29 20,64 15,88 10323939 SCH06604-PR 17,02 23,84 17,48 10174553 SCH1414-PP 22,23 30,16 22,23 10174554 SCH1616-PP 25,40 33,34 25,40 10174555 SCH2020-PP 31,75 41,28 31,75 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
