  • NA49

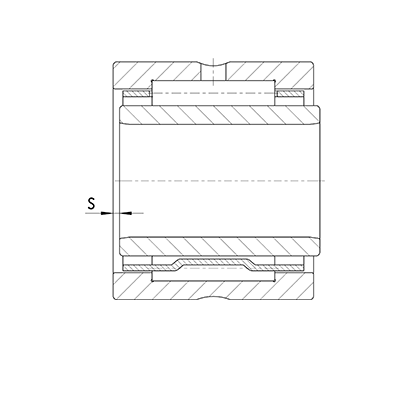

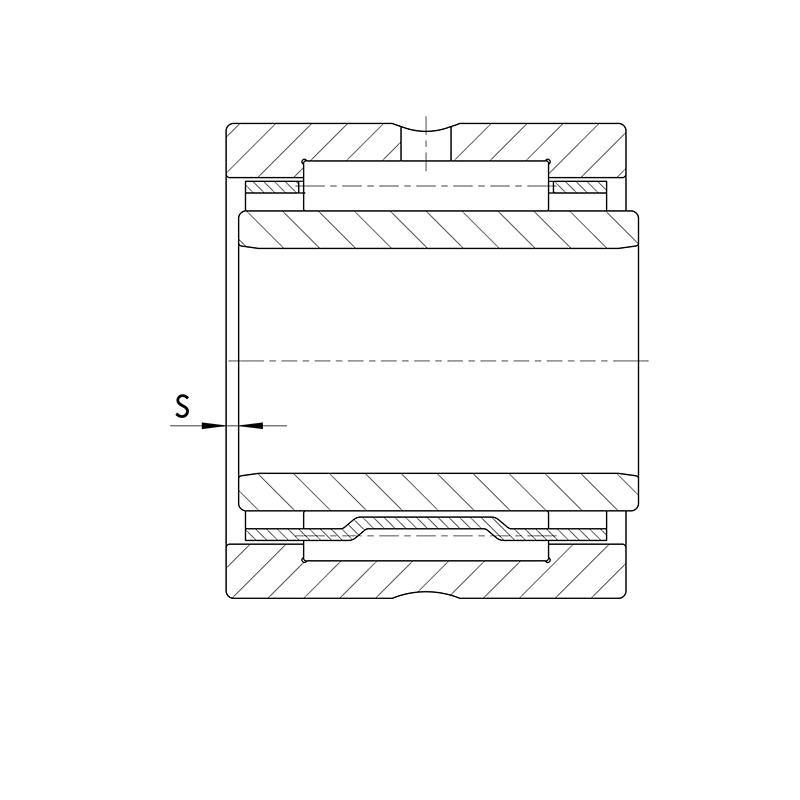

    Nadellager NA49 nach DIN 617-1 / ISO 1206

    • Nadellager NA49
      Nadellager NA49
    • Nadellager NA49
      Nadellager NA49
    • Nadellager NA49
      Nadellager NA49
      Description Main dimensions Functions
      d D C
      mm mm mm
      SKU Description Main dimensions Functions
      d D C
      mm mm mm
      10040922 NA4900 10,00 22,00 13,00
      10040925 NA4901 12,00 24,00 13,00
      10040928 NA4902 15,00 28,00 13,00
      10040931 NA4903 17,00 30,00 13,00
      10040934 NA4904 20,00 37,00 17,00
      10040919 NA49/22 22,00 39,00 17,00
      10040937 NA4905 25,00 42,00 17,00
      10040920 NA49/28 28,00 45,00 17,00
      10040940 NA4906 30,00 47,00 17,00
      10040921 NA49/32 32,00 52,00 20,00
      10040943 NA4907 35,00 55,00 20,00
      10040946 NA4908 40,00 62,00 22,00
      10040949 NA4909 45,00 68,00 22,00
      10040952 NA4910 50,00 72,00 22,00
      10040955 NA4911 55,00 80,00 25,00
      10040956 NA4912 60,00 85,00 25,00
      10040957 NA4913 65,00 90,00 25,00
      10040958 NA4914 70,00 100,00 30,00
      10040959 NA4915 75,00 105,00 30,00
      10040960 NA4916 80,00 110,00 30,00
      10040961 NA4917 85,00 120,00 35,00
      10040962 NA4918 90,00 125,00 35,00
      10040963 NA4919 95,00 130,00 35,00
      10040964 NA4920 100,00 140,00 40,00
      10040965 NA4922 110,00 150,00 40,00
      10040966 NA4924 120,00 165,00 45,00
      10040967 NA4926 130,00 180,00 50,00
      10040968 NA4928 140,00 190,00 50,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • NA49-RSR

      Nadellager NA49 nach DIN 617-1 / ISO 1206

      • Nadellager NA49-RSR
        Nadellager NA49-RSR
      • Nadellager NA49-RSR
        Nadellager NA49-RSR
        Description Main dimensions Functions
        d D C
        mm mm mm
        SKU Description Main dimensions Functions
        d D C
        mm mm mm
        10040924 NA4900-RSR 10,00 22,00 13,00
        10040927 NA4901-RSR 12,00 24,00 13,00
        10040930 NA4902-RSR 15,00 28,00 13,00
        10040933 NA4903-RSR 17,00 30,00 13,00
        10040936 NA4904-RSR 20,00 37,00 17,00
        10040939 NA4905-RSR 25,00 42,00 17,00
        10040942 NA4906-RSR 30,00 47,00 17,00
        10040945 NA4907-RSR 35,00 55,00 20,00
        10040948 NA4908-RSR 40,00 62,00 22,00
        10040951 NA4909-RSR 45,00 68,00 22,00
        10040954 NA4910-RSR 50,00 72,00 22,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      • NA49-2RSR

        Nadellager NA49 nach DIN 617-1 / ISO 1206

        • Nadellager NA49-2RSR
          Nadellager NA49-2RSR
        • Nadellager NA49-2RSR
          Nadellager NA49-2RSR
          Description Main dimensions Functions
          d D C
          mm mm mm
          SKU Description Main dimensions Functions
          d D C
          mm mm mm
          10040923 NA4900-2RSR 10,00 22,00 13,00
          10040926 NA4901-2RSR 12,00 24,00 13,00
          10040929 NA4902-2RSR 15,00 28,00 13,00
          10040932 NA4903-2RSR 17,00 30,00 13,00
          10040935 NA4904-2RSR 20,00 37,00 17,00
          10040938 NA4905-2RSR 25,00 42,00 17,00
          10040941 NA4906-2RSR 30,00 47,00 17,00
          10040944 NA4907-2RSR 35,00 55,00 20,00
          10040947 NA4908-2RSR 40,00 62,00 22,00
          10040950 NA4909-2RSR 45,00 68,00 22,00
          10040953 NA4910-2RSR 50,00 72,00 22,00
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
