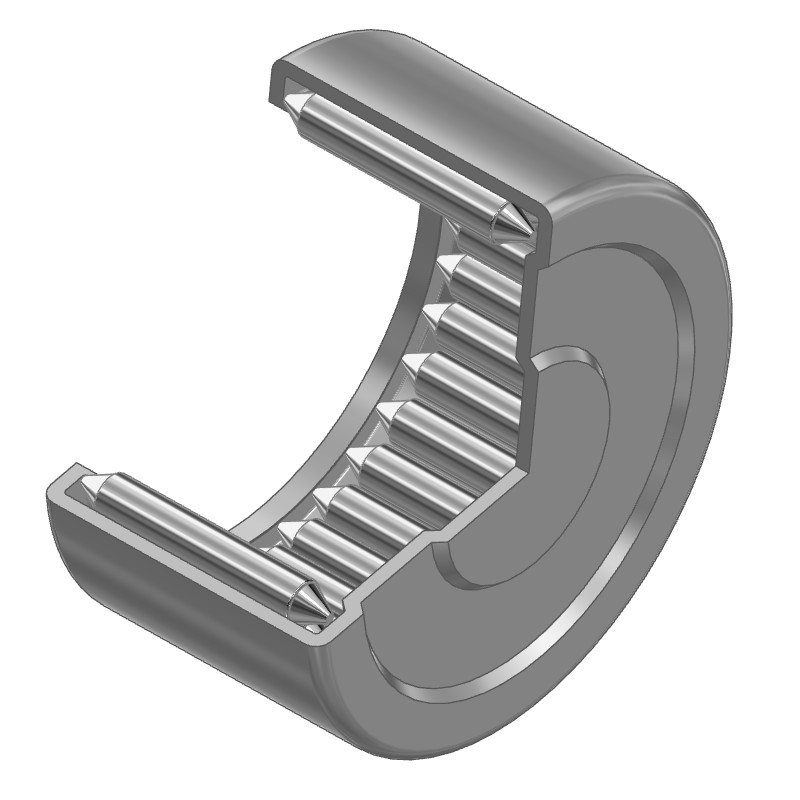

Nadelbüchse DLF

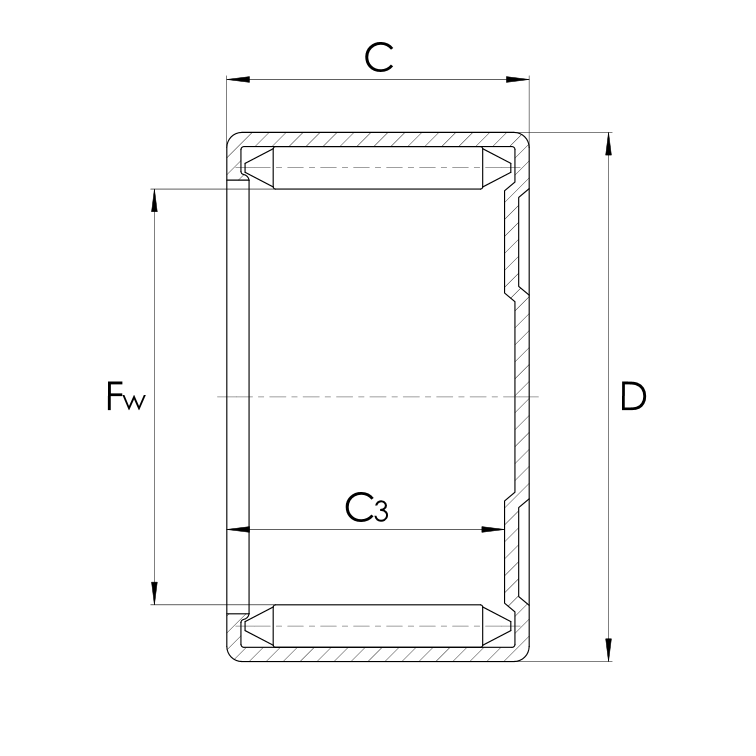

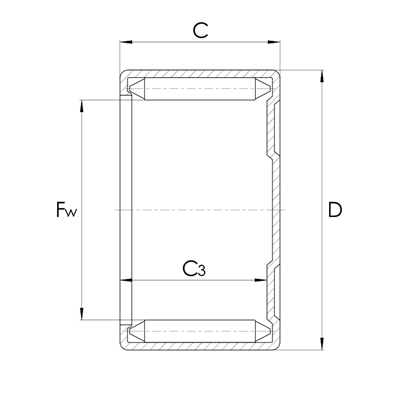

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10147667 | DLF610 | 6,00 | 12,00 | 10,00 | |
| 10147669 | DLF810 | 8,00 | 14,00 | 10,00 | |
| 10147671 | DLF1012 | 10,00 | 16,00 | 12,00 | |
| 10173663 | DLF1210 | 12,00 | 18,00 | 10,00 | |
| 10173664 | DLF1212 | 12,00 | 18,00 | 12,00 | |
| 10173665 | DLF1312 | 13,00 | 19,00 | 12,00 | |
| 10173666 | DLF1412 | 14,00 | 20,00 | 12,00 | |
| 10173667 | DLF1512 | 15,00 | 21,00 | 12,00 | |
| 10173668 | DLF1612 | 16,00 | 22,00 | 12,00 | |
| 10173669 | DLF1712 | 17,00 | 23,00 | 12,00 | |
| 10173670 | DLF1812 | 18,00 | 24,00 | 12,00 | |
| 10173671 | DLF1816 | 18,00 | 24,00 | 16,00 | |
| 10173672 | DLF2012 | 20,00 | 26,00 | 12,00 | |
| 10173673 | DLF2016 | 20,00 | 26,00 | 16,00 | |
| 10173674 | DLF2216 | 22,00 | 28,00 | 16,00 | |
| 10173675 | DLF2516 | 25,00 | 33,00 | 16,00 | |
| 10173676 | DLF2520 | 25,00 | 33,00 | 20,00 | |
| 10173677 | DLF2820 | 28,00 | 36,00 | 20,00 | |
| 10147683 | DLF3020 | 30,00 | 38,00 | 20,00 | |
| 10173678 | DLF3016 | 30,00 | 38,00 | 16,00 | |
| 10173679 | DLF3025 | 30,00 | 38,00 | 25,00 | |
| 10173680 | DLF3516 | 35,00 | 43,00 | 16,00 | |
| 10173681 | DLF3520 | 35,00 | 43,00 | 20,00 | |
| 10173682 | DLF4016 | 40,00 | 48,00 | 16,00 | |
| 10173683 | DLF4020 | 40,00 | 48,00 | 20,00 | |
| 10173684 | DLF4416 | 44,00 | 52,00 | 16,00 | |
| 10173685 | DLF4716 | 47,00 | 55,00 | 16,00 | |
| 10173686 | DLF5012 | 50,00 | 58,00 | 12,00 | |
| 10173687 | DLF5018 | 50,00 | 58,00 | 18,00 | |
| 10173688 | DLF5020 | 50,00 | 58,00 | 20,00 | |
| 10173689 | DLF5520 | 55,00 | 63,00 | 20,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
´
