Keilriemen SPB

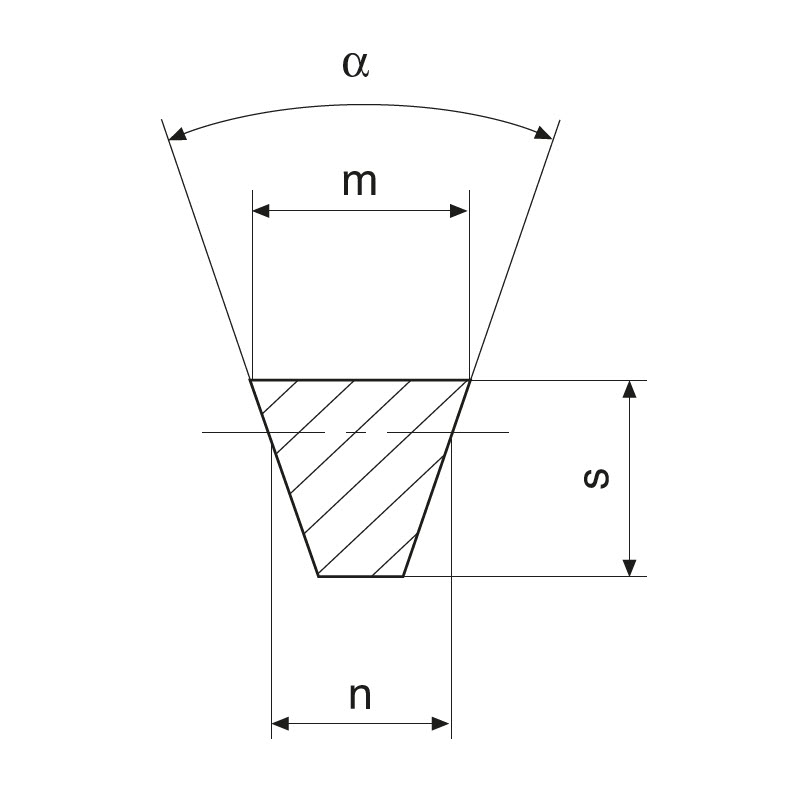

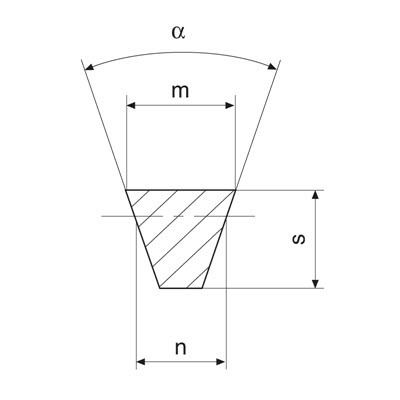

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| m | Lw | La | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| m | Lw | La | |||
| mm | mm | mm | |||
| 10001115 | SPB-04250 | 16,30 | 4.250,00 | 4.272,00 | |
| 10001101 | SPB-02850 | 16,30 | 2.850,00 | 2.872,00 | |
| 10001102 | SPB-02900 | 16,30 | 2.900,00 | 2.922,00 | |
| 10001103 | SPB-03000 | 16,30 | 3.000,00 | 3.022,00 | |
| 10001104 | SPB-03070 | 16,30 | 3.070,00 | 3.092,00 | |
| 10001105 | SPB-03150 | 16,30 | 3.150,00 | 3.172,00 | |
| 10001106 | SPB-03250 | 16,30 | 3.250,00 | 3.272,00 | |
| 10001107 | SPB-03350 | 16,30 | 3.350,00 | 3.372,00 | |
| 10001108 | SPB-03450 | 16,30 | 3.450,00 | 3.472,00 | |
| 10001109 | SPB-03550 | 16,30 | 3.550,00 | 3.572,00 | |
| 10001110 | SPB-03650 | 16,30 | 3.650,00 | 3.672,00 | |
| 10001111 | SPB-03750 | 16,30 | 3.750,00 | 3.772,00 | |
| 10001112 | SPB-03870 | 16,30 | 3.870,00 | 3.892,00 | |
| 10001113 | SPB-04000 | 16,30 | 4.000,00 | 4.022,00 | |
| 10001114 | SPB-04120 | 16,30 | 4.120,00 | 4.142,00 | |
| 10001100 | SPB-02840 | 16,30 | 2.840,00 | 2.862,00 | |
| 10001116 | SPB-04370 | 16,30 | 4.370,00 | 4.392,00 | |
| 10001117 | SPB-04500 | 16,30 | 4.500,00 | 4.522,00 | |
| 10001118 | SPB-04620 | 16,30 | 4.620,00 | 4.642,00 | |
| 10001119 | SPB-04750 | 16,30 | 4.750,00 | 4.772,00 | |
| 10001120 | SPB-04870 | 16,30 | 4.870,00 | 4.892,00 | |
| 10001121 | SPB-05000 | 16,30 | 5.000,00 | 5.022,00 | |
| 10001122 | SPB-05300 | 16,30 | 5.300,00 | 5.322,00 | |
| 10001123 | SPB-05600 | 16,30 | 5.600,00 | 5.622,00 | |
| 10001124 | SPB-06000 | 16,30 | 6.000,00 | 6.022,00 | |
| 10001125 | SPB-06300 | 16,30 | 6.300,00 | 6.322,00 | |
| 10001126 | SPB-06700 | 16,30 | 6.700,00 | 6.722,00 | |
| 10001127 | SPB-07100 | 16,30 | 7.100,00 | 7.122,00 | |
| 10001128 | SPB-07500 | 16,30 | 7.500,00 | 7.522,00 | |
| 10001129 | SPB-08000 | 16,30 | 8.000,00 | 8.022,00 | |
| 10001085 | SPB-01950 | 16,30 | 1.950,00 | 1.972,00 | |
| 10001071 | SPB-01280 | 16,30 | 1.280,00 | 1.302,00 | |
| 10001072 | SPB-01320 | 16,30 | 1.320,00 | 1.342,00 | |
| 10001073 | SPB-01360 | 16,30 | 1.360,00 | 1.382,00 | |
| 10001074 | SPB-01400 | 16,30 | 1.400,00 | 1.422,00 | |
| 10001075 | SPB-01450 | 16,30 | 1.450,00 | 1.472,00 | |
| 10001076 | SPB-01500 | 16,30 | 1.500,00 | 1.522,00 | |
| 10001077 | SPB-01550 | 16,30 | 1.550,00 | 1.572,00 | |
| 10001078 | SPB-01600 | 16,30 | 1.600,00 | 1.622,00 | |
| 10001079 | SPB-01650 | 16,30 | 1.650,00 | 1.672,00 | |
| 10001080 | SPB-01700 | 16,30 | 1.700,00 | 1.722,00 | |
| 10001081 | SPB-01750 | 16,30 | 1.750,00 | 1.772,00 | |
| 10001082 | SPB-01800 | 16,30 | 1.800,00 | 1.822,00 | |
| 10001083 | SPB-01850 | 16,30 | 1.850,00 | 1.872,00 | |
| 10001084 | SPB-01900 | 16,30 | 1.900,00 | 1.922,00 | |
| 10001070 | SPB-01250 | 16,30 | 1.250,00 | 1.272,00 | |
| 10001086 | SPB-02000 | 16,30 | 2.000,00 | 2.022,00 | |
| 10001087 | SPB-02060 | 16,30 | 2.060,00 | 2.082,00 | |
| 10001088 | SPB-02120 | 16,30 | 2.120,00 | 2.142,00 | |
| 10001089 | SPB-02180 | 16,30 | 2.180,00 | 2.202,00 | |
| 10001090 | SPB-02240 | 16,30 | 2.240,00 | 2.262,00 | |
| 10001091 | SPB-02300 | 16,30 | 2.300,00 | 2.322,00 | |
| 10001092 | SPB-02360 | 16,30 | 2.360,00 | 2.382,00 | |
| 10001093 | SPB-02430 | 16,30 | 2.430,00 | 2.452,00 | |
| 10001094 | SPB-02500 | 16,30 | 2.500,00 | 2.522,00 | |
| 10001095 | SPB-02530 | 16,30 | 2.530,00 | 2.552,00 | |
| 10001096 | SPB-02580 | 16,30 | 2.580,00 | 2.602,00 | |
| 10001097 | SPB-02650 | 16,30 | 2.650,00 | 2.672,00 | |
| 10001098 | SPB-02720 | 16,30 | 2.720,00 | 2.742,00 | |
| 10001099 | SPB-02800 | 16,30 | 2.800,00 | 2.822,00 | |
