Name: RE2008-C0-P0
Brand: HFH
SKU: 10297105
Rating: 4 (5 reviews)

+49 3695 8521 0

This email address is being protected from spambots. You need JavaScript enabled to view it.

Mo. - Fr.: 07:00 - 15:00

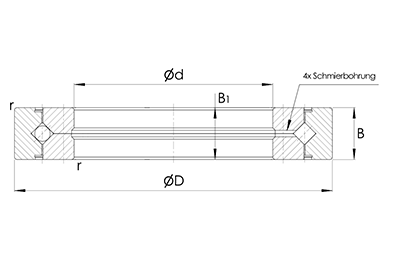

Crossed roller bearing RE - With split inner ring for outer ring rotation

Crossed roller bearing RE
Crossed roller bearing RE
Crossed roller bearing RE

Description	Main dimensions			Functions
	d	D	B
	mm	mm	mm

SKU	Description	Main dimensions
		d	D	B
		mm	mm	mm
10297105	RE2008-C0-P0	20.00	36.00	8.00 _^-0.08
10297159	RE2508-C0-P0	25.00	41.00	8.00 _^-0.08
10297213	RE3010-C0-P0	30.00	55.00	10.00 _^-0.08
10297267	RE3510-C0-P0	35.00	60.00	10.00 _^-0.08
10297321	RE4010-C0-P0	40.00	65.00	10.00 _^-0.08
10297375	RE4510-C0-P0	45.00	70.00	10.00 _^-0.08
10297429	RE5013-C0-P0	50.00	80.00	13.00 _^-0.08
10297483	RE6013-C0-P0	60.00	90.00	13.00 _^-0.08
10297537	RE7013-C0-P0	70.00	100.00	13.00 _^-0.08
10297591	RE8016-C0-P0	80.00	120.00	16.00 _^-0.08
10297645	RE9016-C0-P0	90.00	130.00	16.00 _^-0.08
10297753	RE10020-C0-P0	100.00	150.00	20.00 _^-0.08
10297699	RE10016-C0-P0	100.00	140.00	16.00 _^-0.08
10297807	RE11012-C0-P0	110.00	135.00	12.00 _^-0.08
10297861	RE11015-C0-P0	110.00	145.00	15.00 _^-0.08
10297915	RE11020-C0-P0	110.00	160.00	20.00 _^-0.08
10297969	RE12016-C0-P0	120.00	150.00	16.00 _^-0.08
10298023	RE12025-C0-P0	120.00	180.00	25.00 _^-0.08
10298077	RE13015-C0-P0	130.00	160.00	15.00 _^-0.10
10298131	RE13025-C0-P0	130.00	190.00	25.00 _^-0.10
10298185	RE14016-C0-P0	140.00	175.00	16.00 _^-0.10
10298239	RE14025-C0-P0	140.00	200.00	25.00 _^-0.10
10298401	RE15030-C0-P0	150.00	230.00	30.00 _^-0.10
10298293	RE15013-C0-P0	150.00	180.00	13.00 _^-0.10
10298347	RE15025-C0-P0	150.00	210.00	25.00 _^-0.10
10298455	RE16025-C0-P0	160.00	220.00	25.00 _^-0.10
10298509	RE17020-C0-P0	170.00	220.00	20.00 _^-0.10
10298563	RE18025-C0-P0	180.00	240.00	25.00 _^-0.10
10298617	RE19025-C0-P0	190.00	240.00	25.00 _^-0.10
10298671	RE20025-C0-P0	200.00	260.00	25.00 _^-0.10
10298725	RE20030-C0-P0	200.00	280.00	30.00 _^-0.10
10298779	RE20035-C0-P0	200.00	295.00	35.00 _^-0.10
10298833	RE22025-C0-P0	220.00	280.00	25.00 _^-0.10
10298887	RE24025-C0-P0	240.00	300.00	25.00 _^-0.10
10298995	RE25030-C0-P0	250.00	330.00	30.00 _^-0.10
10299049	RE25040-C0-P0	250.00	355.00	40.00 _^-0.10
10298941	RE25025-C0-P0	250.00	310.00	25.00 _^-0.10
10299103	RE30025-C0-P0	300.00	360.00	25.00 _^-0.12
10299157	RE30035-C0-P0	300.00	395.00	35.00 _^-0.12
10299211	RE30040-C0-P0	300.00	405.00	40.00 _^-0.12
10299265	RE35020-C0-P0	350.00	400.00	20.00 _^-0.15
10299319	RE40035-C0-P0	400.00	480.00	35.00 _^-0.15
10299373	RE40040-C0-P0	400.00	510.00	40.00 _^-0.15
10299427	RE45025-C0-P0	450.00	500.00	25.00 _^-0.15
10299481	RE50025-C0-P0	500.00	550.00	25.00 _^-0.15
10299535	RE50040-C0-P0	500.00	600.00	40.00 _^-0.15
10299589	RE50050-C0-P0	500.00	625.00	50.00 _^-0.15
10299643	RE60040-C0-P0	600.00	700.00	40.00 _^-0.15

Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
