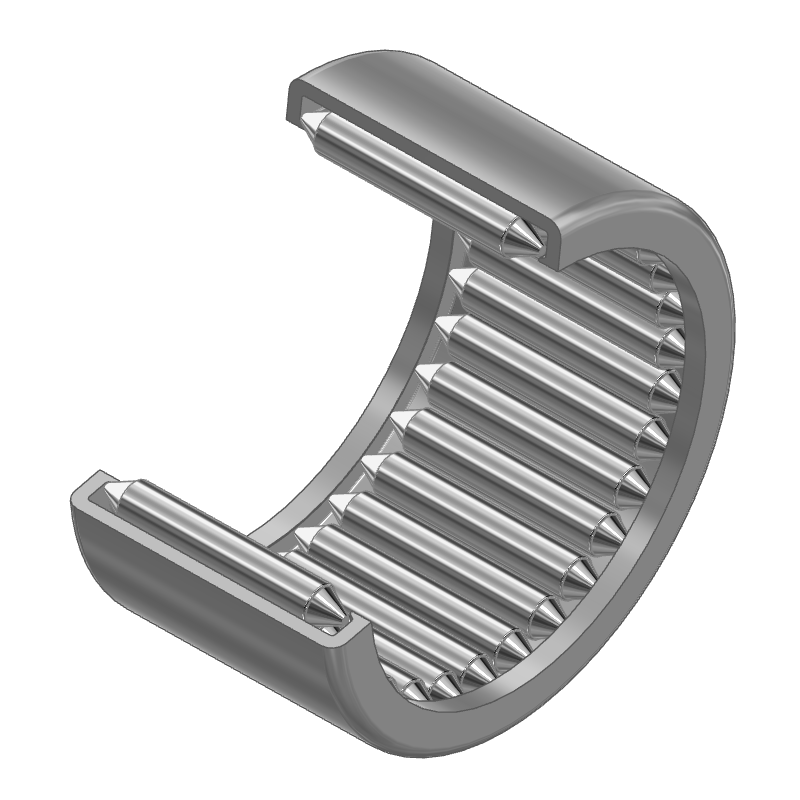

Nadelhülse DL

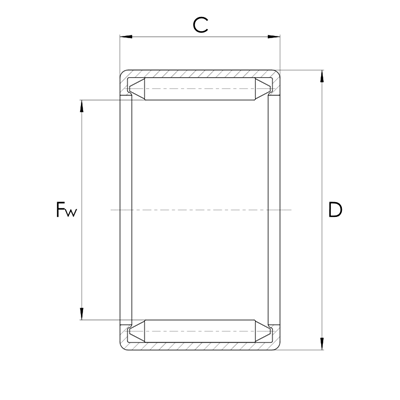

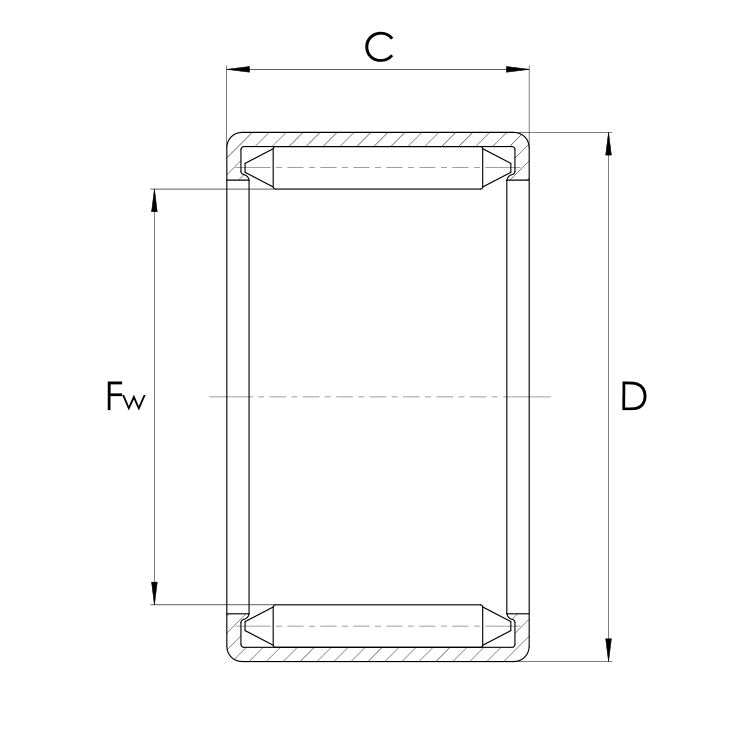

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Fw | D | C | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Fw | D | C | |||
| mm | mm | mm | |||
| 10173645 | DL610 | 6,00 | 12,00 | 10,00 | |
| 10147668 | DL810 | 8,00 | 14,00 | 10,00 | |
| 10147670 | DL1012 | 10,00 | 16,00 | 12,00 | |
| 10173646 | DL1210 | 12,00 | 18,00 | 10,00 | |
| 10147672 | DL1212 | 12,00 | 18,00 | 12,00 | |
| 10173647 | DL1312 | 13,00 | 19,00 | 12,00 | |
| 10173648 | DL1412 | 14,00 | 20,00 | 12,00 | |
| 10147675 | DL1512 | 15,00 | 21,00 | 12,00 | |
| 10147677 | DL1612 | 16,00 | 22,00 | 12,00 | |
| 10147679 | DL1712 | 17,00 | 23,00 | 12,00 | |
| 10147680 | DL1812 | 18,00 | 24,00 | 12,00 | |
| 10173649 | DL1816 | 18,00 | 24,00 | 16,00 | |
| 10147681 | DL2016 | 20,00 | 26,00 | 16,00 | |
| 10173650 | DL2012 | 20,00 | 26,00 | 12,00 | |
| 10151817 | DL2216 | 22,00 | 28,00 | 16,00 | |
| 10147687 | DL2520 | 25,00 | 33,00 | 20,00 | |
| 10173651 | DL2516 | 25,00 | 33,00 | 16,00 | |
| 10173652 | DL2820 | 28,00 | 36,00 | 20,00 | |
| 10147684 | DL3025 | 30,00 | 38,00 | 25,00 | |
| 10147682 | DL3020 | 30,00 | 38,00 | 20,00 | |
| 10173653 | DL3016 | 30,00 | 38,00 | 16,00 | |
| 10147686 | DL3520 | 35,00 | 43,00 | 20,00 | |
| 10173654 | DL3516 | 35,00 | 43,00 | 16,00 | |
| 10147685 | DL4020 | 40,00 | 48,00 | 20,00 | |
| 10173655 | DL4016 | 40,00 | 48,00 | 16,00 | |
| 10173656 | DL4416 | 44,00 | 52,00 | 16,00 | |
| 10173657 | DL4716 | 47,00 | 55,00 | 16,00 | |
| 10173658 | DL5012 | 50,00 | 58,00 | 12,00 | |
| 10173659 | DL5018 | 50,00 | 58,00 | 18,00 | |
| 10173660 | DL5020 | 50,00 | 58,00 | 20,00 | |
| 10173661 | DL5520 | 55,00 | 63,00 | 20,00 | |
