  • 222SM-MA

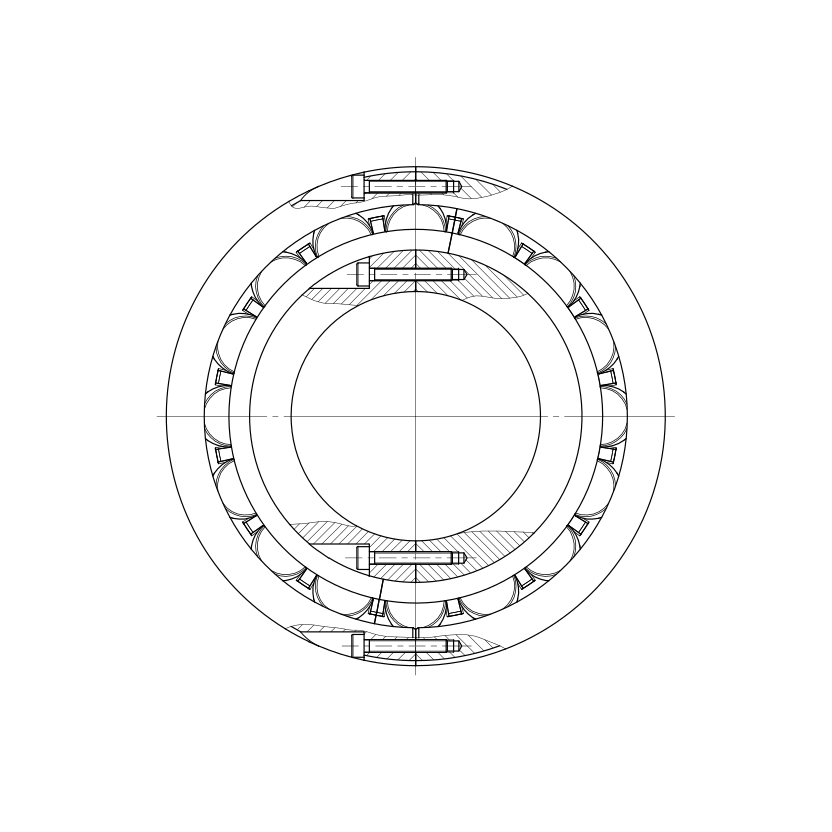

    Spherical roller bearing (divided) Series 222, Main dimensions deviating DIN 635-2, DIN 616 ISO 15:1998

    • Spherical roller bearing (divided) 222
      Spherical roller bearing (divided) 222
    • Spherical roller bearing (divided) 222
      Spherical roller bearing (divided) 222
    • Spherical roller bearing (divided) 222
      Spherical roller bearing (divided) 222

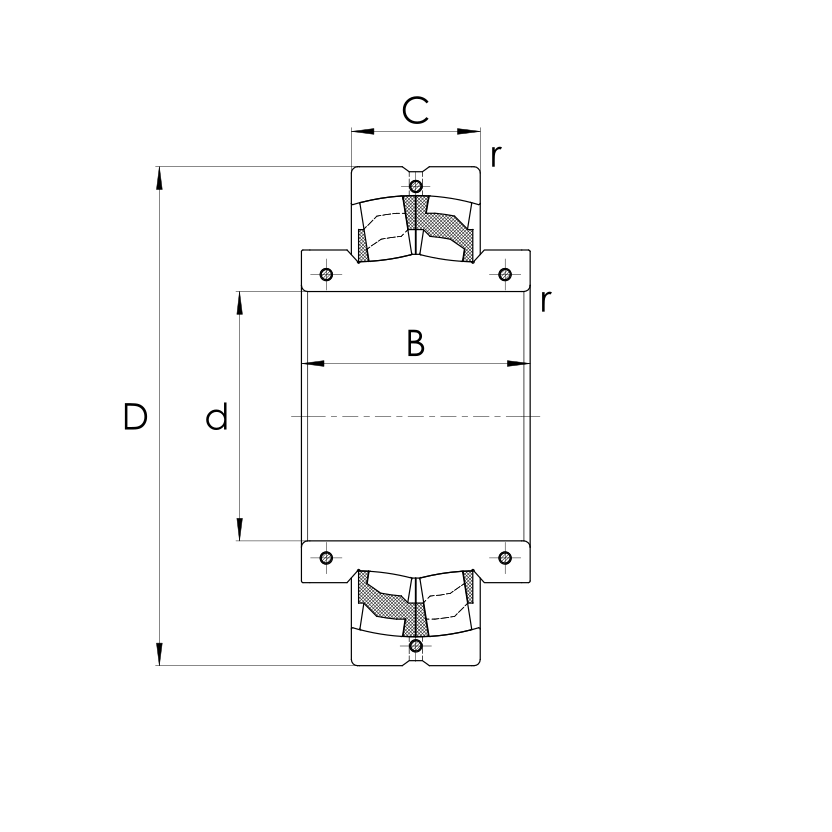

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10603944 222SM55-MA 55.00 110.00 28.00
      10603945 222SM60-MA 60.00 120.00 31.00
      10603946 222SM65-MA 65.00 130.00 31.00
      10603947 222SM70-MA 70.00 140.00 33.00
      10603948 222SM75-MA 75.00 150.00 36.00
      10603949 222SM80-MA 80.00 160.00 40.00
      10603950 222SM85-MA 85.00 170.00 43.00
      10603951 222SM90-MA 90.00 180.00 46.00
      10603952 222SM100-MA 100.00 200.00 53.00
      10603953 222SM110-MA 110.00 215.00 58.00
      10603954 222SM115-MA 115.00 230.00 64.00
      10603955 222SM125-MA 125.00 250.00 68.00
      10603956 222SM135-MA 135.00 270.00 73.00
      10603957 222SM140-MA 140.00 290.00 80.00
      10603958 222SM150-MA 150.00 310.00 86.00
      10603959 222SM160-MA 160.00 320.00 86.00
      10603960 222SM170-MA 170.00 340.00 92.00
      10603822 222SM180-MA 180.00 360.00 98.00
      10603825 222SM200-MA 200.00 400.00 108.00
      10603828 222SM220-MA 220.00 440.00 120.00
      10603831 222SM240-MA 240.00 480.00 130.00
      10603834 222SM260-MA 260.00 500.00 130.00
      10603837 222SM280-MA 280.00 540.00 140.00
      10603840 222SM300-MA 300.00 580.00 150.00
      10603843 222SM320-MA 320.00 620.00 165.00
      10603846 222SM340-MA 340.00 650.00 170.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • 222SM-TVPA

      Spherical roller bearing (divided) Series 222, Main dimensions deviating DIN 635-2, DIN 616 ISO 15:1998

      • Spherical roller bearing (divided) 222
        Spherical roller bearing (divided) 222
      • Spherical roller bearing (divided) 222
        Spherical roller bearing (divided) 222
      • Spherical roller bearing (divided) 222
        Spherical roller bearing (divided) 222
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10603787 222SM55-TVPA 55.00 110.00 28.00
        10603788 222SM60-TVPA 60.00 120.00 31.00
        10603789 222SM65-TVPA 65.00 130.00 31.00
        10603790 222SM70-TVPA 70.00 140.00 33.00
        10603791 222SM75-TVPA 75.00 150.00 36.00
        10603792 222SM80-TVPA 80.00 160.00 40.00
        10603793 222SM85-TVPA 85.00 170.00 43.00
        10603794 222SM90-TVPA 90.00 180.00 46.00
        10603796 222SM100-TVPA 100.00 200.00 53.00
        10603799 222SM110-TVPA 110.00 215.00 58.00
        10603801 222SM115-TVPA 115.00 230.00 64.00
        10603804 222SM125-TVPA 125.00 250.00 68.00
        10603807 222SM135-TVPA 135.00 270.00 73.00
        10603810 222SM140-TVPA 140.00 290.00 80.00
        10603813 222SM150-TVPA 150.00 310.00 86.00
        10603816 222SM160-TVPA 160.00 320.00 86.00
        10603819 222SM170-TVPA 170.00 340.00 92.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      • 222S (Inch)

        Spherical roller bearing (divided) Series 222, inch dimensions

        • Spherical roller bearing (divided) 222
          Spherical roller bearing (divided) 222
        • Spherical roller bearing (divided) 222
          Spherical roller bearing (divided) 222
        • Spherical roller bearing (divided) 222
          Spherical roller bearing (divided) 222
          Description Main dimensions Functions
          d D B
          mm mm mm
          SKU Description Main dimensions Functions
          d D B
          mm mm mm
          10603869 222S.203 55.560 120.00 31.00
          10603870 222S.204 57.150 120.00 31.00
          10603871 222S.207 61.910 130.00 31.00
          10603872 222S.208 63.500 130.00 31.00
          10603873 222S.211 68.260 140.00 33.00
          10603874 222S.215 74.610 150.00 36.00
          10603875 222S.300 76.200 150.00 36.00
          10603876 222S.303 80.960 160.00 40.00
          10603877 222S.304 82.550 160.00 40.00
          10603878 222S.307 87.310 180.00 46.00
          10603879 222S.307-MA 87.310 180.00 46.00
          10603880 222S.308 88.900 180.00 46.00
          10603881 222S.308-MA 88.900 180.00 46.00
          10603882 222S.315 100.010 200.00 53.00
          10603883 222S.400 101.600 200.00 53.00
          10603884 222S.403 106.360 215.00 58.00
          10603885 222S.407 112.710 230.00 64.00
          10603886 222S.408 114.300 230.00 64.00
          10603887 222S.415 125.410 250.00 68.00
          10603888 222S.415-MA 125.410 250.00 68.00
          10603889 222S.500 127.000 250.00 68.00
          10603890 222S.503 131.760 270.00 73.00
          10603891 222S.507 138.110 290.00 80.00
          10603892 222S.507-MA 138.110 290.00 80.00
          10603894 222S.508 139.700 290.00 80.00
          10603895 222S.515 150.810 310.00 86.00
          10603896 222S.600 152.400 310.00 86.00
          10603899 222S.607 163.510 320.00 86.00
          10603900 222S.608 165.100 320.00 86.00
          10603901 222S.615 176.210 340.00 92.00
          10603903 222S.703 182.560 360.00 98.00
          10603904 222S.708 190.500 400.00 108.00
          10603905 222S.715 201.610 400.00 108.00
          10603906 222S.800 203.200 400.00 108.00
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
