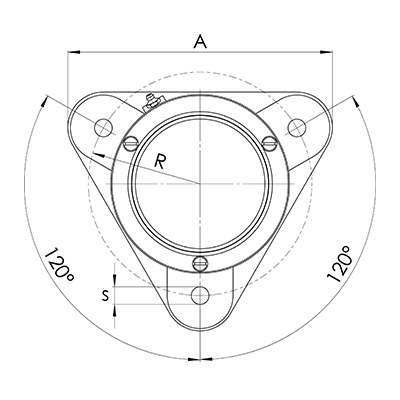

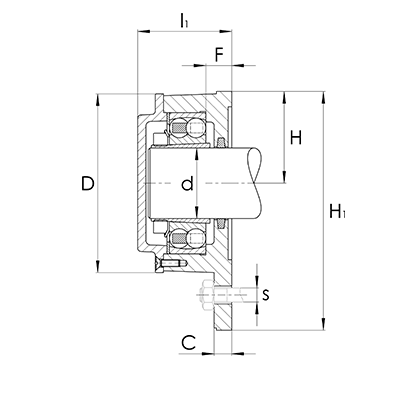

  • 722 DA

    Flanschlagergehäuse 722 DA für Pendelkugellager oder Pendelrollenlager mit Spannhülse

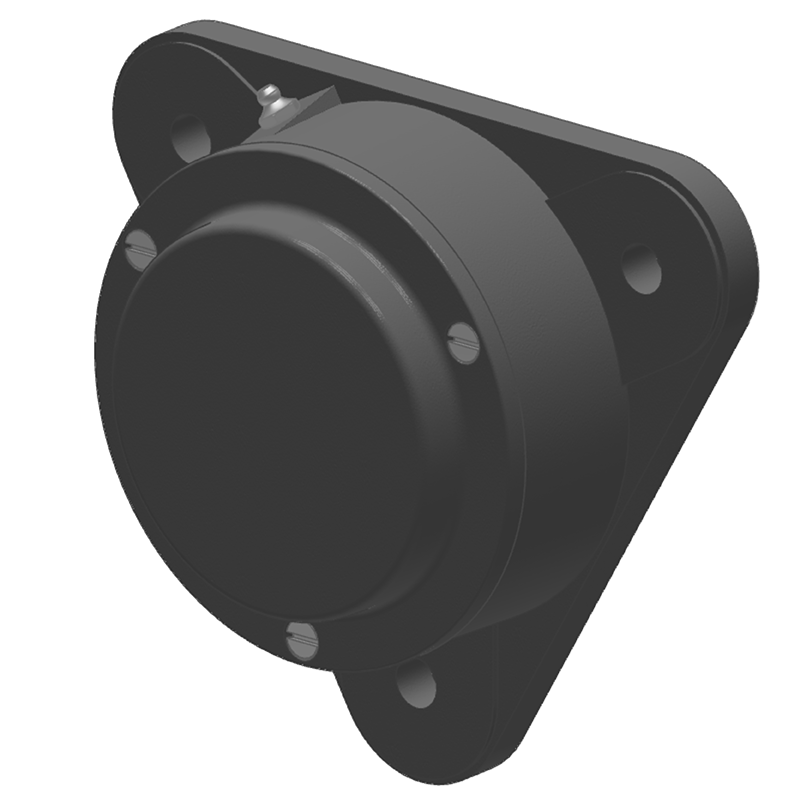

    • Flanschlagergehäuse 722 DA geschlossen
      Flanschlagergehäuse 722 DA geschlossen
    • Flanschlagergehäuse 722 DA
      Flanschlagergehäuse 722 DA
    • Flanschlagergehäuse 722 DA
      Flanschlagergehäuse 722 DA
      Description Main dimensions Functions
      d D A
      mm mm mm
      SKU Description Main dimensions Functions
      d D A
      mm mm mm
      10056281 722505-DA-RAL9005 20,00 75,00 110,00
      10056283 722506-DA-RAL9005 25,00 86,00 130,00
      10056285 722507-DA-RAL9005 30,00 97,00 145,00
      10056287 722508-DA-RAL9005 35,00 108,00 160,00
      10056289 722509-DA-RAL9005 40,00 113,00 180,00
      10056291 722510-DA-RAL9005 45,00 118,00 180,00
      10056293 722511-DA-RAL9005 50,00 128,00 192,00
      10056295 722512-DA-RAL9005 55,00 142,00 210,00
      10056297 722513-DA-RAL9005 60,00 152,00 225,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

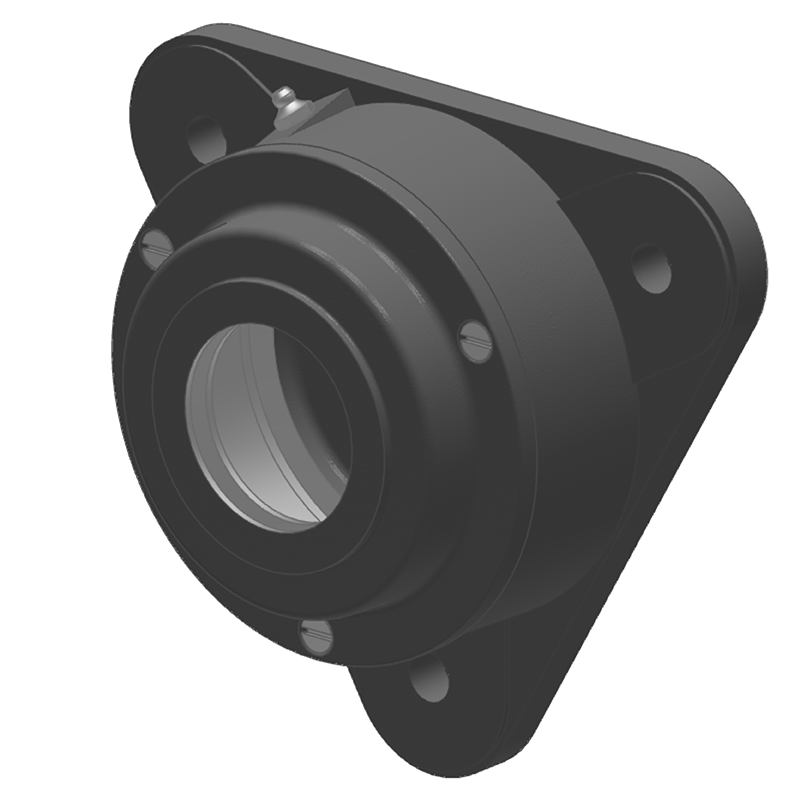

    • 722 DB

      Flanschlagergehäuse 722 DB für Pendelkugellager oder Pendelrollenlager mit Spannhülse

      • Flanschlagergehäuse 722 DB geschlossen
        Flanschlagergehäuse 722 DB geschlossen
      • Flanschlagergehäuse 722 DB
        Flanschlagergehäuse 722 DB
      • Flanschlagergehäuse 722 DB
        Flanschlagergehäuse 722 DB
        Description Main dimensions Functions
        d D A
        mm mm mm
        SKU Description Main dimensions Functions
        d D A
        mm mm mm
        10056282 722505-DB-RAL9005 20,00 75,00 110,00
        10056284 722506-DB-RAL9005 25,00 86,00 130,00
        10056286 722507-DB-RAL9005 30,00 97,00 145,00
        10056288 722508-DB-RAL9005 35,00 108,00 160,00
        10056290 722509-DB-RAL9005 40,00 113,00 180,00
        10056292 722510-DB-RAL9005 45,00 118,00 180,00
        10056294 722511-DB-RAL9005 50,00 128,00 192,00
        10056296 722512-DB-RAL9005 55,00 142,00 210,00
        10056298 722513-DB-RAL9005 60,00 152,00 225,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
