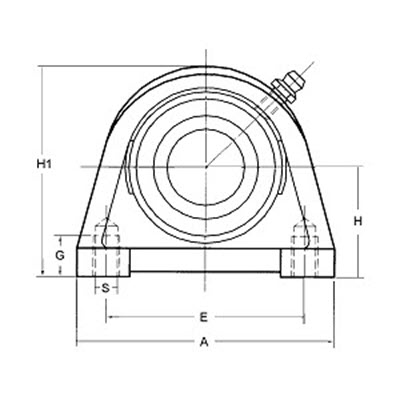

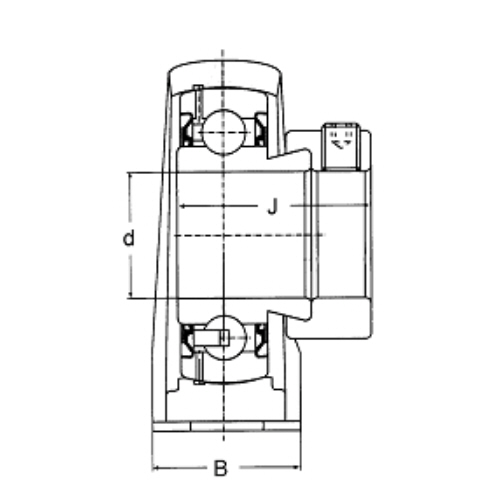

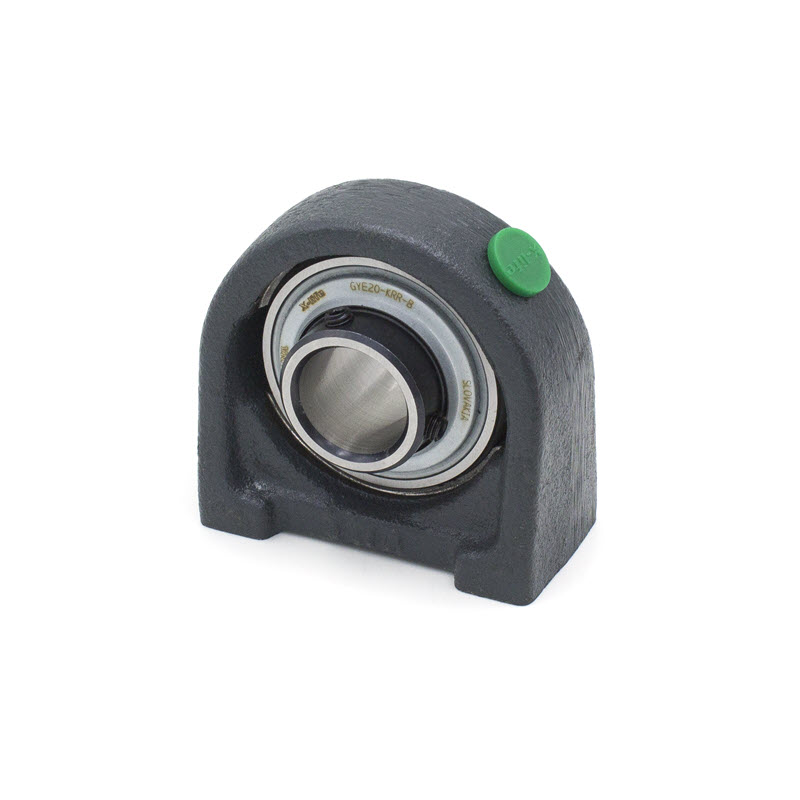

Stehlagereinheit SWG
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | H1 | A | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | H1 | A | |||
| mm | mm | mm | |||
| 30000085 | SWG12 | 12,00 | 57,00 | 63,00 | |
| 30000086 | SWG15 | 15,00 | 57,00 | 63,00 | |
| 30000087 | SWG17 | 17,00 | 57,00 | 63,00 | |
| 30000088 | SWG20 | 20,00 | 64,00 | 65,00 | |
| 30000089 | SWG25 | 25,00 | 70,00 | 70,00 | |
| 30000090 | SWG30 | 30,00 | 82,00 | 98,00 | |
| 30000091 | SWG35 | 35,00 | 93,00 | 103,00 | |
| 30000092 | SWG40 | 40,00 | 99,00 | 116,00 | |
| 30000093 | SWG45 | 45,00 | 107,00 | 120,00 | |
| 30000094 | SWG50 | 50,00 | 115,00 | 135,00 | |
| 30000095 | SWG55 | 55,00 | 126,00 | 151,00 | |
| 30000096 | SWG60 | 60,00 | 140,00 | 151,00 | |
