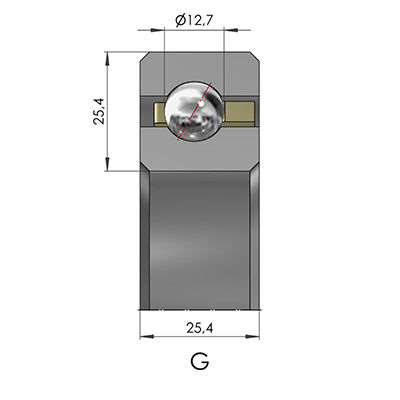

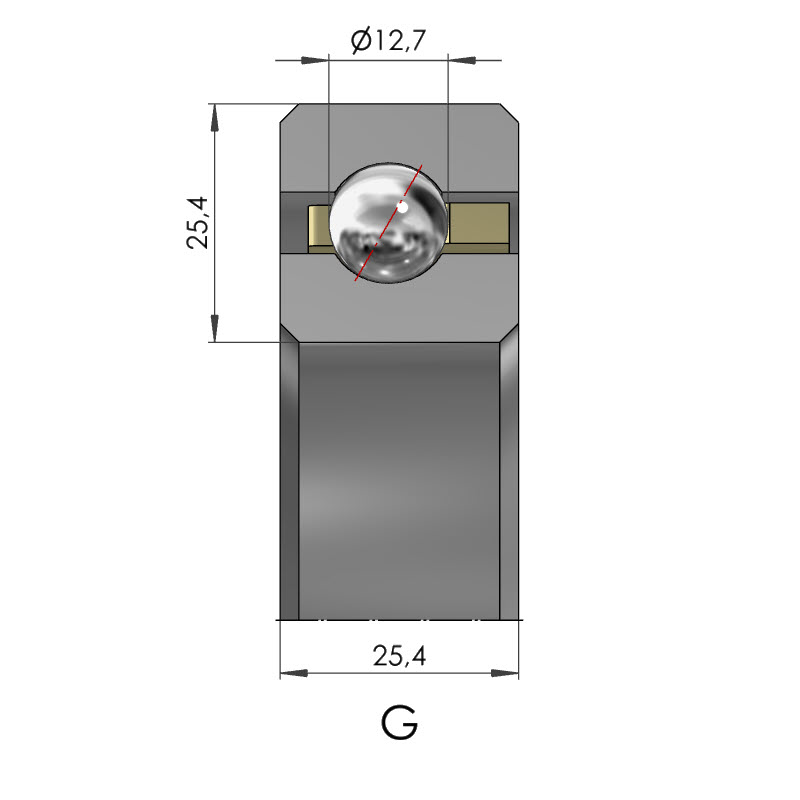

Thin section angular contact ball bearing - CSEG

  • Thin section bearing - CSEG
    Thin section bearing - CSEG
  • Thin section bearing - CSEG
    Thin section bearing - CSEG

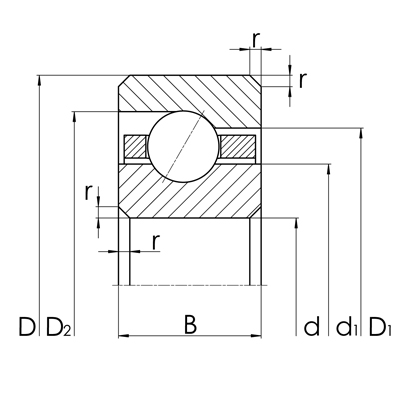

    Description Main dimensions Functions
    d D B
    mm mm mm
    SKU Description Main dimensions Functions
    d D B
    mm mm mm
    10157483 CSEG040 101.60 152.40 25.40
    10157485 CSEG042 107.95 158.75 25.40
    10157487 CSEG045 114.30 165.10 25.40
    10157489 CSEG047 120.65 171.45 25.40
    10157491 CSEG050 127.00 177.80 25.40
    10157493 CSEG055 139.70 190.50 25.40
    10147443 CSEG060 152.40 203.20 25.40
    10157495 CSEG065 165.10 215.90 25.40
    10147444 CSEG070 177.80 228.60 25.40
    10147445 CSEG075 190.50 241.30 25.40
    10147446 CSEG080 203.20 254.00 25.40
    10147447 CSEG090 228.60 279.40 25.40
    10147448 CSEG100 254.00 304.80 25.40
    10157497 CSEG110 279.40 330.20 25.40
    10147449 CSEG120 304.80 355.60 25.40
    10157499 CSEG140 355.60 406.40 25.40
    10157501 CSEG160 406.40 457.20 25.40
    10157503 CSEG180 457.20 508.00 25.40
    10157505 CSEG200 508.00 558.80 25.40
    10157507 CSEG220 558.80 609.60 25.40
    10157509 CSEG250 635.00 685.80 25.40
    10157511 CSEG300 762.00 812.80 25.40
    10157513 CSEG350 889.00 939.80 25.40
    10157515 CSEG400 1,016.00 1,066.80 25.40
    Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
