Axial needle roller and cage assemblies

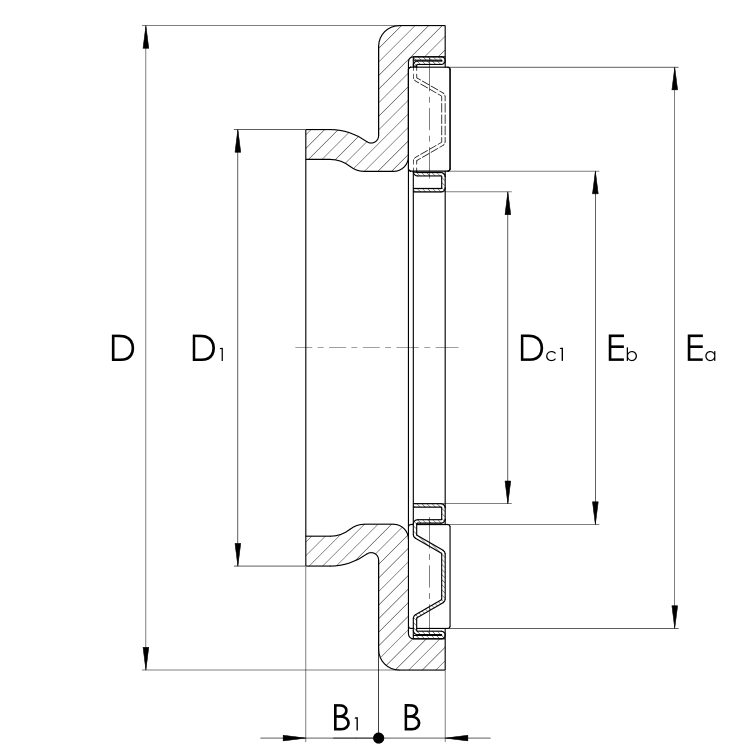

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| Dc1 | D1 | D | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| Dc1 | D1 | D | |||
| mm | mm | mm | |||
| 10555729 | AXW10 | 10,00 | 14,00 | 27,00 | |
| 10555732 | AXW12 | 12,00 | 16,00 | 29,00 | |
| 10555735 | AXW15 | 15,00 | 21,00 | 31,00 | |
| 10555739 | AXW17 | 17,00 | 23,00 | 33,00 | |
| 10555742 | AXW20 | 20,00 | 26,00 | 38,00 | |
| 10555745 | AXW25 | 25,00 | 32,00 | 45,00 | |
| 10555748 | AXW30 | 30,00 | 37,00 | 50,00 | |
| 10555751 | AXW35 | 35,00 | 42,00 | 50,00 | |
| 10555754 | AXW40 | 40,00 | 47,00 | 63,00 | |
| 10555757 | AXW45 | 45,00 | 52,00 | 68,00 | |
| 10555760 | AXW50 | 50,00 | 58,00 | 73,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
´
These may also interest you.
Catalog
Currently, there isn't a catalog for Drawn cup needle roller available. Please use our online datasheet.
Service Bulletin
Manuals for Drawn cup needle roller can be downloaded from [[a class="alert-link" href="https://media.rhia.de/ebooks/Axial needle roller and cage assemblies" target="_new" rel="external" referrerpolicy="no-referrer" title="Axial needle roller and cage assemblies - Drawn cup needle roller"]]here[[/a]].
