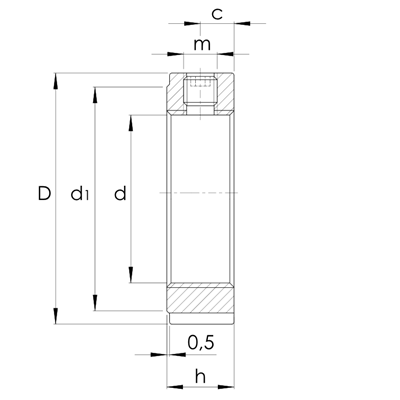

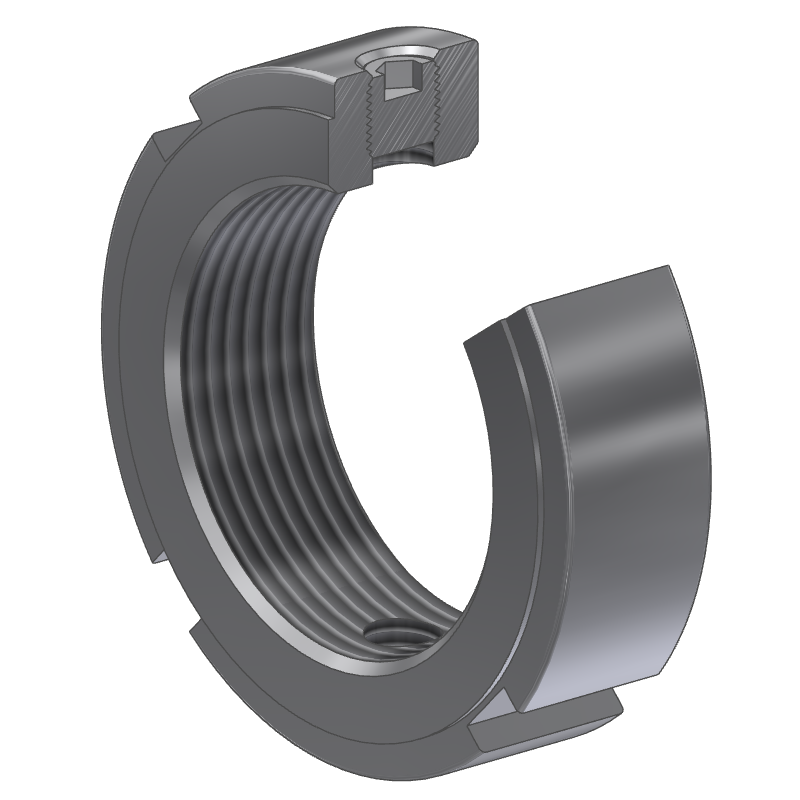

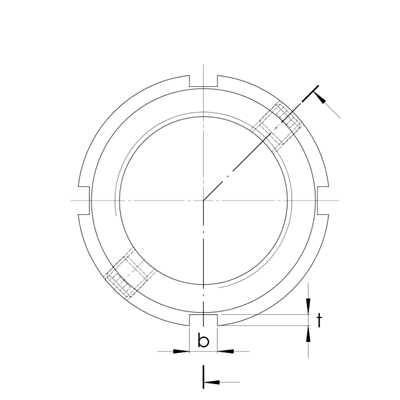

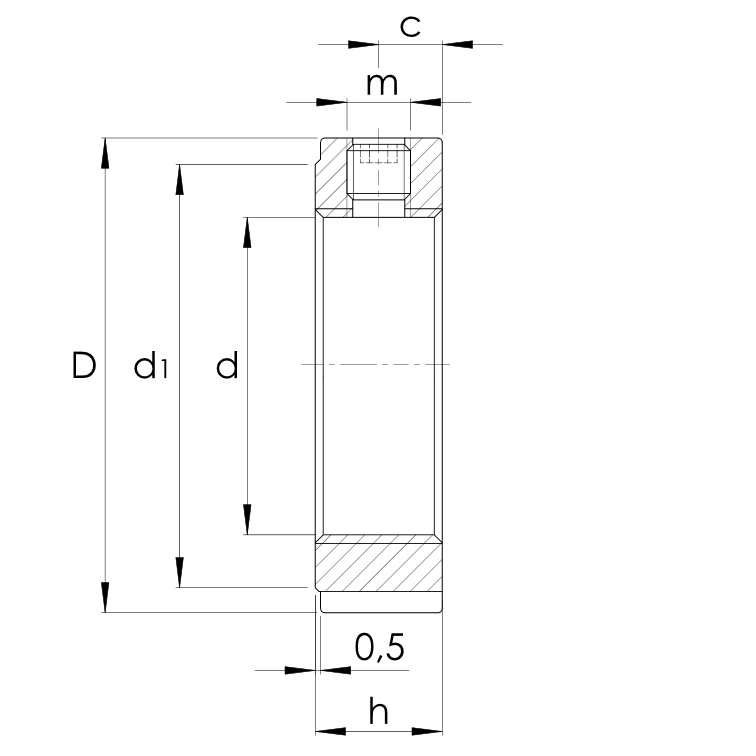

Precision groove lock nut ZMA, radial clampable
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | h | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | h | |||
| mm | mm | mm | |||
| 10170735 | ZMA15/33 | M15x1 | 28.00 | 16.00 | |
| 10170736 | ZMA20/38 | M20x1 | 33.00 | 20.00 | |
| 10170738 | ZMA25/45 | M25x1,5 | 40.00 | 20.00 | |
| 10170737 | ZMA20/52 | M20x1 | 47.00 | 25.00 | |
| 10170740 | ZMA30/52 | M30x1,5 | 47.00 | 22.00 | |
| 10170739 | ZMA25/58 | M25x1,5 | 52.00 | 28.00 | |
| 10170742 | ZMA35/58 | M35x1,5 | 52.00 | 22.00 | |
| 10170744 | ZMA40/62 | M40x1,5 | 56.00 | 22.00 | |
| 10170741 | ZMA30/65 | M30x1,5 | 59.00 | 30.00 | |
| 10170746 | ZMA45/68 | M45x1,5 | 62.00 | 24.00 | |
| 10170743 | ZMA35/70 | M35x1,5 | 64.00 | 30.00 | |
| 10170748 | ZMA50/75 | M50x1,5 | 68.00 | 25.00 | |
| 10170745 | ZMA40/75 | M40x1,5 | 69.00 | 30.00 | |
| 10170747 | ZMA45/85 | M45x1,5 | 78.00 | 32.00 | |
| 10170749 | ZMA50/92 | M50x1,5 | 84.00 | 32.00 | |
| 10170750 | ZMA55/98 | M55x2 | 90.00 | 32.00 | |
| 10170751 | ZMA60/98 | M60x2 | 90.00 | 32.00 | |
| 10170752 | ZMA65/105 | M65x2 | 97.00 | 32.00 | |
| 10170753 | ZMA70/110 | M70x2 | 102.00 | 35.00 | |
| 10170755 | ZMA80/120 | M80x2 | 105.00 | 35.00 | |
| 10170754 | ZMA75/125 | M75x2 | 117.00 | 38.00 | |
| 10170756 | ZMA90/130 | M90x2 | 120.00 | 38.00 | |
| 10170758 | ZMA100/140 | M100x2 | 128.00 | 38.00 | |
| 10170757 | ZMA90/155 | M90x2 | 146.00 | 38.00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
