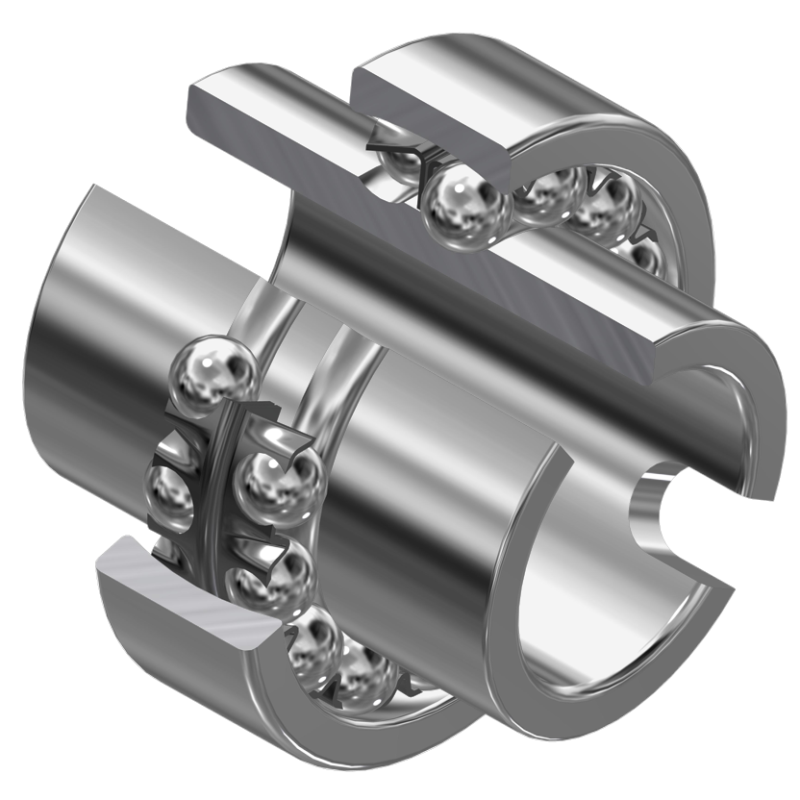

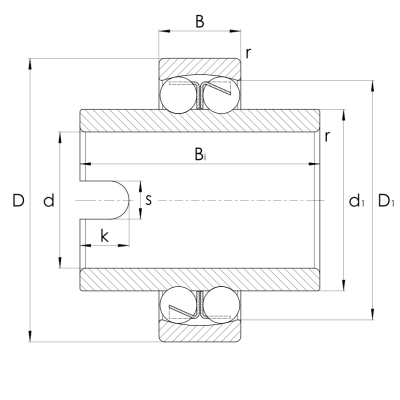

Self-aligning ball bearing 11200, main dimensions according to DIN 617, DIN 630, ISO 15:1998
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10097329 | 11204 | 20.00 | 47.00 | 14.00 | |
| 10097331 | 11205 | 25.00 | 52.00 | 15.00 | |
| 10097333 | 11206 | 30.00 | 62.00 | 16.00 | |
| 10097335 | 11207 | 35.00 | 72.00 | 17.00 | |
| 10097337 | 11208 | 40.00 | 80.00 | 18.00 | |
| 10097339 | 11209 | 45.00 | 85.00 | 19.00 | |
| 10097341 | 11210 | 50.00 | 90.00 | 20.00 | |
| 10097343 | 11211 | 55.00 | 100.00 | 21.00 | |
| 10097345 | 11212 | 60.00 | 110.00 | 22.00 | |
