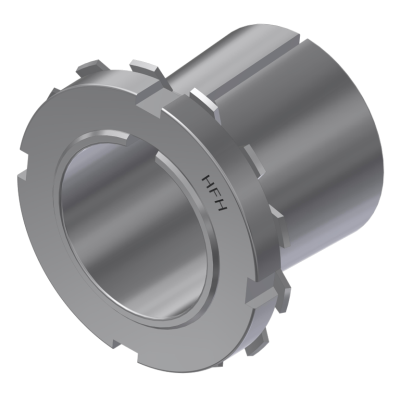

Adapter sleeve H200 according to DIN 5415

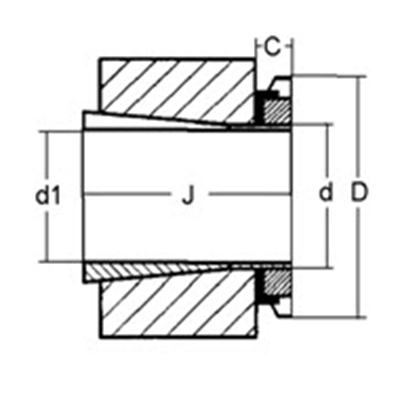

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d1 | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d1 | J | |||
| mm | mm | mm | |||
| 10069658 | H203 | 17,00 | 14,00 | 21,00 | |
| 10069662 | H204 | 20,00 | 17,00 | 24,00 | |
| 10069666 | H205 | 25,00 | 20,00 | 26,00 | |
| 10069670 | H206 | 30,00 | 25,00 | 27,00 | |
| 10069674 | H207 | 35,00 | 30,00 | 29,00 | |
| 10069678 | H208 | 40,00 | 35,00 | 31,00 | |
| 10069682 | H209 | 45,00 | 40,00 | 33,00 | |
| 10069686 | H210 | 50,00 | 45,00 | 35,00 | |
| 10069690 | H211 | 55,00 | 50,00 | 37,00 | |
| 10069694 | H212 | 60,00 | 55,00 | 38,00 | |
| 10069698 | H213 | 65,00 | 60,00 | 40,00 | |
| 10069702 | H214 | 70,00 | 60,00 | 41,00 | |
| 10069706 | H215 | 75,00 | 65,00 | 43,00 | |
| 10069710 | H216 | 80,00 | 70,00 | 46,00 | |
| 10069714 | H217 | 85,00 | 75,00 | 50,00 | |
| 10069718 | H218 | 90,00 | 80,00 | 52,00 | |
| 10069722 | H219 | 95,00 | 85,00 | 55,00 | |
| 10069726 | H220 | 100,00 | 90,00 | 58,00 | |
| 10069730 | H221 | 105,00 | 95,00 | 60,00 | |
| 10069734 | H222 | 110,00 | 100,00 | 63,00 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
