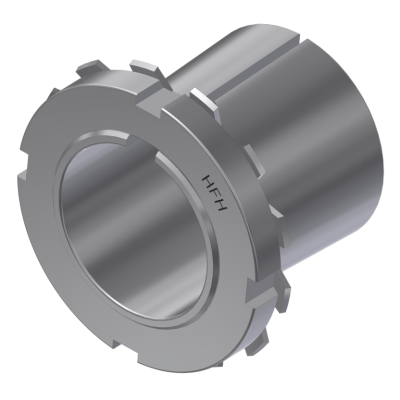

Adapter sleeve H3100 according to 5415

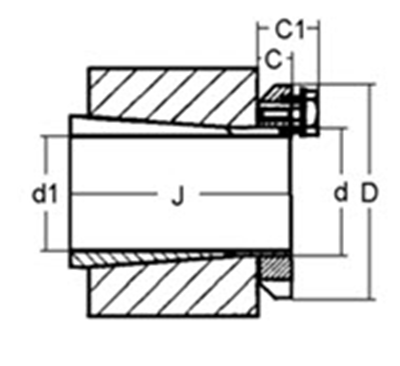

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | d[[sub]]1[[/sub]] | J | |||
| mm | mm | mm | |||
| 10070086 | H3120 | 100.00 | 90.00 | 76.00 | |
| 10070094 | H3122 | 110.00 | 100.00 | 81.00 | |
| 10070098 | H3124 | 120.00 | 110.00 | 88.00 | |
| 10070102 | H3126 | 130.00 | 115.00 | 92.00 | |
| 10070106 | H3128 | 140.00 | 125.00 | 97.00 | |
| 10070114 | H3130 | 150.00 | 135.00 | 111.00 | |
| 10070118 | H3132 | 160.00 | 140.00 | 119.00 | |
| 10070122 | H3134 | 170.00 | 150.00 | 122.00 | |
| 10070126 | H3136 | 180.00 | 160.00 | 131.00 | |
| 10070130 | H3138 | 190.00 | 170.00 | 141.00 | |
| 10070138 | H3140 | 200.00 | 180.00 | 150.00 | |
| 30001043 | H3144 | 220.00 | 200.00 | 161.00 | |
| 30001044 | H3148 | 240.00 | 220.00 | 172.00 | |
| 30001045 | H3152 | 260.00 | 240.00 | 190.00 | |
| 30001046 | H3156 | 280.00 | 260.00 | 195.00 | |
| 10070166 | H3160 | 300.00 | 280.00 | 208.00 | |
| 30001047 | H3164 | 320.00 | 300.00 | 226.00 | |
| 30001048 | H3168 | 340.00 | 320.00 | 254.00 | |
| 30001049 | H3172 | 360.00 | 340.00 | 259.00 | |
| 30001050 | H3176 | 380.00 | 360.00 | 264.00 | |
| 30001051 | H3180 | 400.00 | 380.00 | 272.00 | |
| 30001052 | H3184 | 420.00 | 400.00 | 304.00 | |
| 30001053 | H3188 | 440.00 | 410.00 | 307.00 | |
| 30001054 | H3192 | 460.00 | 430.00 | 326.00 | |
| 30001055 | H3196 | 480.00 | 450.00 | 335.00 | |
