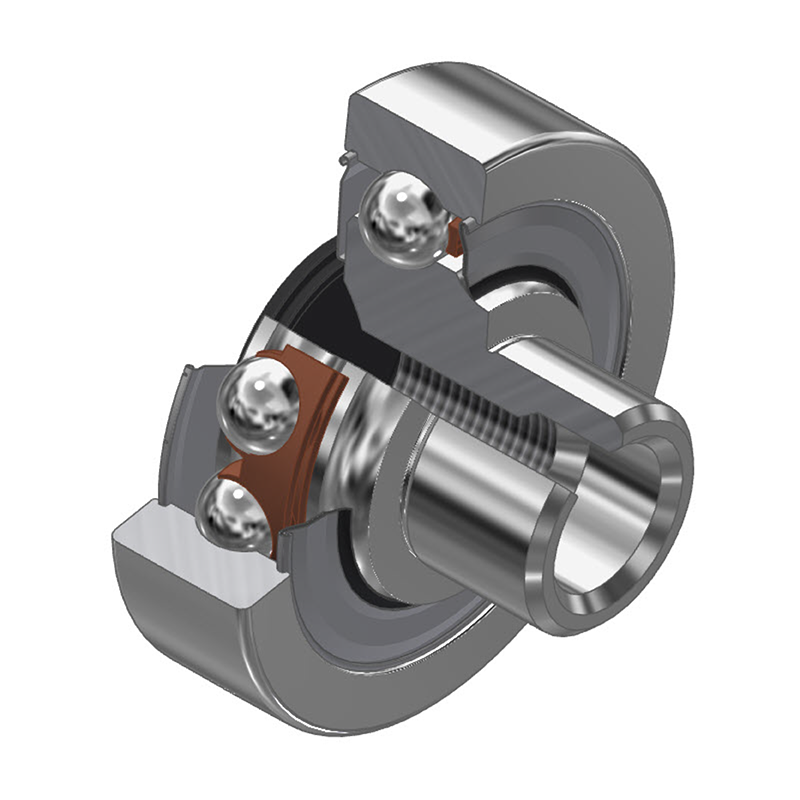

Stud type track roller ZL2..-DRS, single-row, outer surface (bearing) spherical

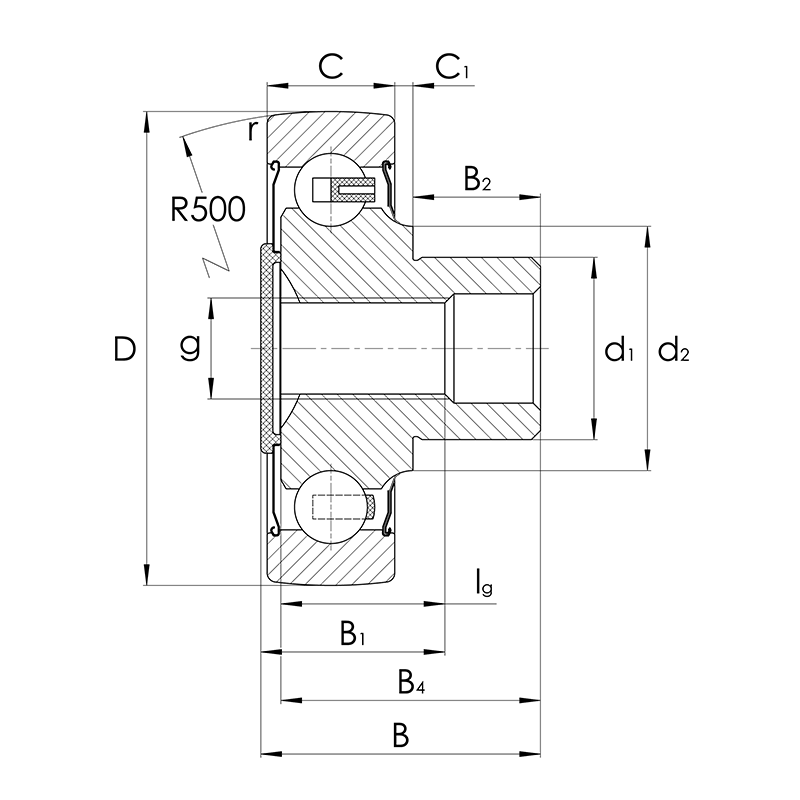

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| D | C | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| D | C | B | |||
| mm | mm | mm | |||
| 10213368 | ZL202-DRS | 40.00 | 11.00 | 23.80 | |
| 10213369 | ZL203-DRS | 47.00 | 12.00 | 26.50 | |
| 10213370 | ZL204-DRS | 52.00 | 14.00 | 30.70 | |
| 10213371 | ZL205-DRS | 62.00 | 15.00 | 33.80 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
Please keep in mind that the maximum possible speed of the rollers can be affected by the following factors. These are:
- permissible operating temperature for rollers
- Type of bearing (deep groove ball bearing or angular contact ball bearing)
- Burden
- Lubrication conditions
- Cooling conditions
- used seal
The specified limit speeds serve as a guide value for optimum operating conditions, taking all factors into consideration.
