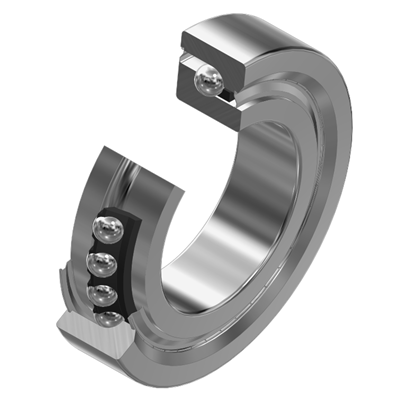

Axial angular contact ball bearing BSB
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10146884 | BSB1747-SU | 17.00 | 47.00 | 15.00 | |
| 10146875 | BSB2047-SU | 20.00 | 47.00 | 15.00 | |
| 10146876 | BSB2562-SU | 25.00 | 62.00 | 15.00 | |
| 10146877 | BSB3062-SU | 30.00 | 62.00 | 15.00 | |
| 10146885 | BSB3572-SU | 35.00 | 72.00 | 15.00 | |
| 10171031 | BSB040090-T | 40.00 | 90.00 | 20.00 | |
| 10171043 | BSB4072-SU | 40.00 | 72.00 | 15.00 | |
| 10171032 | BSB045075-T | 45.00 | 75.00 | 15.00 | |
| 10171731 | BSB045100-T | 45.00 | 100.00 | 20.00 | |
| 10171732 | BSB050100-T | 50.00 | 100.00 | 20.00 | |
| 10171035 | BSB055090-T | 55.00 | 90.00 | 15.00 | |
| 10171734 | BSB055120-T | 55.00 | 120.00 | 20.00 | |
| 10171037 | BSB060120-T | 60.00 | 120.00 | 20.00 | |
