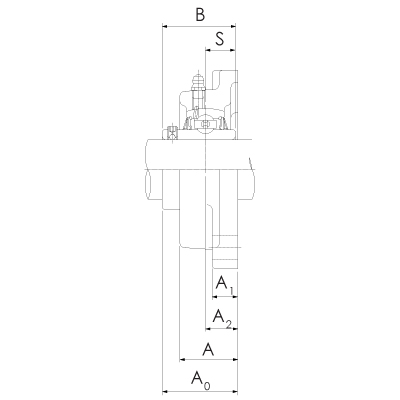

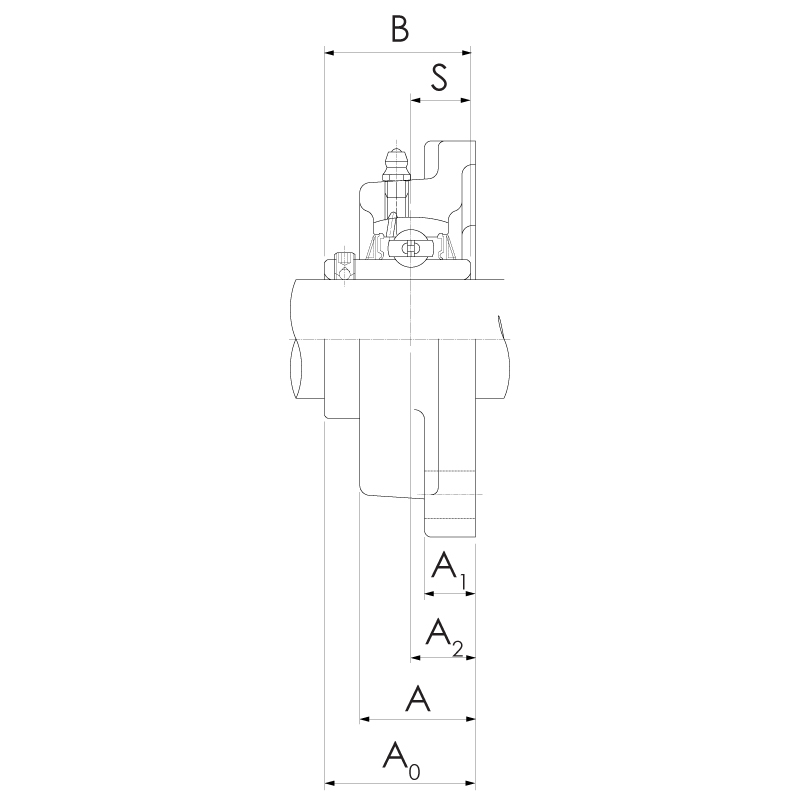

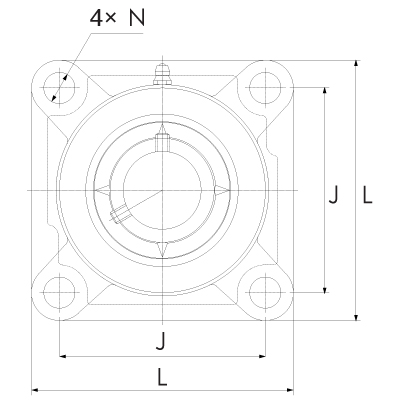

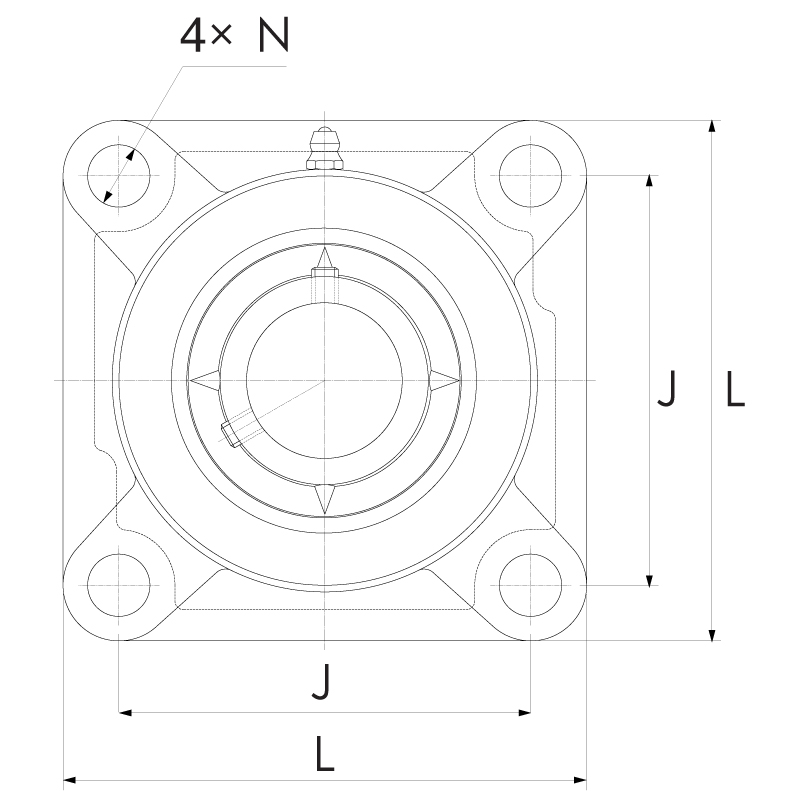

Flanschlagereinheit UCFX
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | L | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | L | B | |||
| mm | mm | mm | |||
| 10057655 | UCFX05 | 25,00 | 108,00 | 38,10 | |
| 10057656 | UCFX06 | 30,00 | 117,00 | 42,90 | |
| 10057657 | UCFX07 | 35,00 | 130,00 | 49,20 | |
| 10057658 | UCFX08 | 40,00 | 137,00 | 49,20 | |
| 10057659 | UCFX09 | 45,00 | 143,00 | 51,60 | |
| 10057660 | UCFX10 | 50,00 | 162,00 | 55,60 | |
| 10057661 | UCFX11 | 55,00 | 175,00 | 65,10 | |
| 10057662 | UCFX12 | 60,00 | 187,00 | 65,10 | |
| 10057663 | UCFX13 | 65,00 | 187,00 | 74,60 | |
| 10057664 | UCFX14 | 70,00 | 197,00 | 77,80 | |
| 10057665 | UCFX15 | 75,00 | 197,00 | 82,60 | |
| 10057666 | UCFX16 | 80,00 | 214,00 | 85,70 | |
| 10057667 | UCFX17 | 85,00 | 214,00 | 96,00 | |
| 10057668 | UCFX18 | 90,00 | 214,00 | 104,00 | |
| 10057669 | UCFX20 | 100,00 | 268,00 | 117,50 | |
