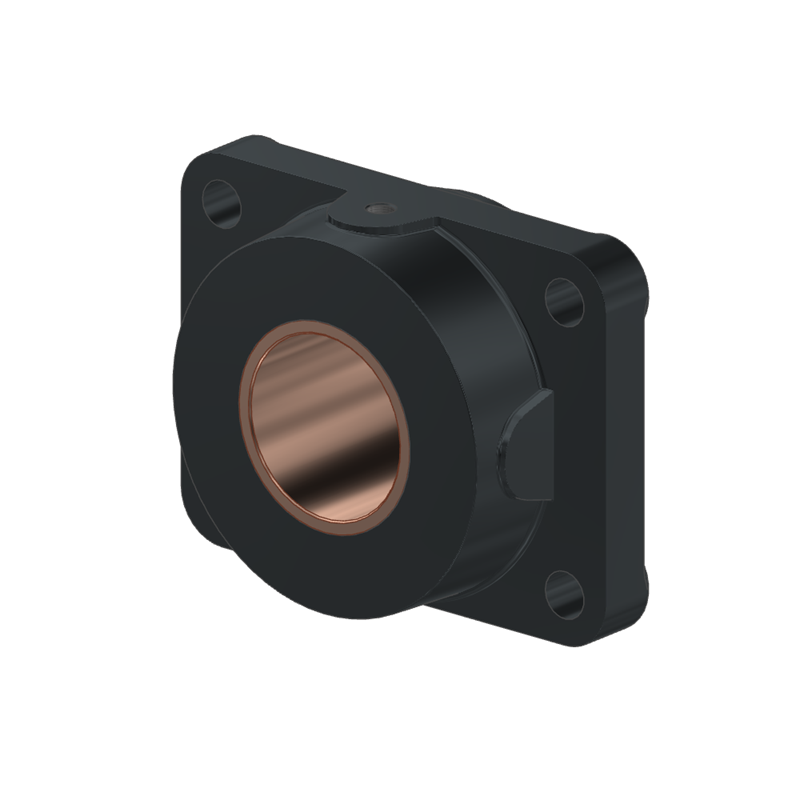

Gleitlagergehäuse DIN503 Form A mit Buchse

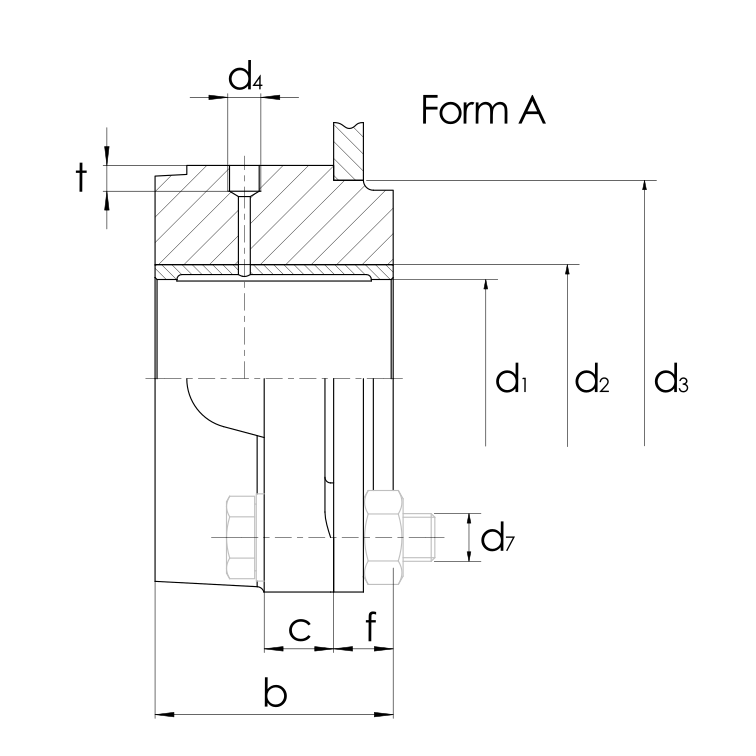

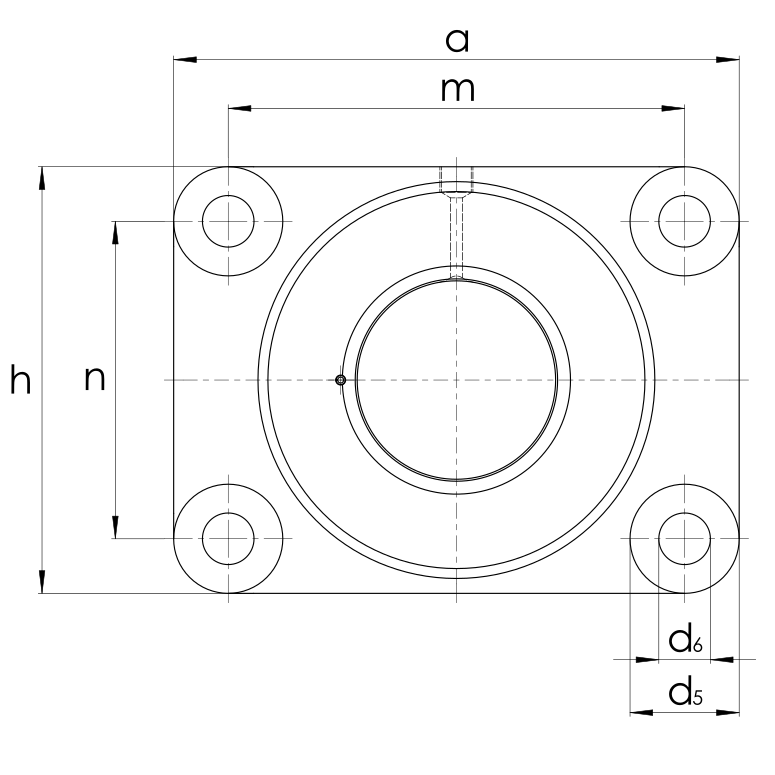

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d1 | b | a | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d1 | b | a | |||
| mm | mm | mm | |||
| 10213099 | DIN503-A35 | 35,00 | 70,00 | 145,00 | |
| 10213100 | DIN503-A40 | 40,00 | 70,00 | 145,00 | |
| 10213101 | DIN503-A45 | 45,00 | 80,00 | 175,00 | |
| 10213102 | DIN503-A50 | 50,00 | 80,00 | 175,00 | |
| 10213103 | DIN503-A55 | 55,00 | 90,00 | 195,00 | |
| 10213104 | DIN503-A60 | 60,00 | 90,00 | 195,00 | |
| 10213105 | DIN503-A65 | 65,00 | 100,00 | 220,00 | |
| 10213106 | DIN503-A70 | 70,00 | 100,00 | 220,00 | |
| 10213107 | DIN503-A75 | 75,00 | 100,00 | 240,00 | |
| 10213108 | DIN503-A80 | 80,00 | 100,00 | 240,00 | |
| 10213109 | DIN503-A90 | 90,00 | 120,00 | 260,00 | |
| 10209720 | DIN503-A100 | 100,00 | 120,00 | 285,00 | |
| 10213485 | DIN503-A110 | 110,00 | 120,00 | 285,00 | |
| 10213486 | DIN503-A120 | 120,00 | 140,00 | 310,00 | |
| 10213487 | DIN503-A125 | 125,00 | 140,00 | 310,00 | |
| 10213488 | DIN503-A130 | 130,00 | 140,00 | 310,00 | |
| 10213489 | DIN503-A140 | 140,00 | 160,00 | 330,00 | |
| 10213490 | DIN503-A150 | 150,00 | 160,00 | 330,00 | |
| 10318212 | DIN503-A160 | 160,00 | 180,00 | 365,00 | |
| 10318213 | DIN503-A180 | 180,00 | 180,00 | 365,00 | |
