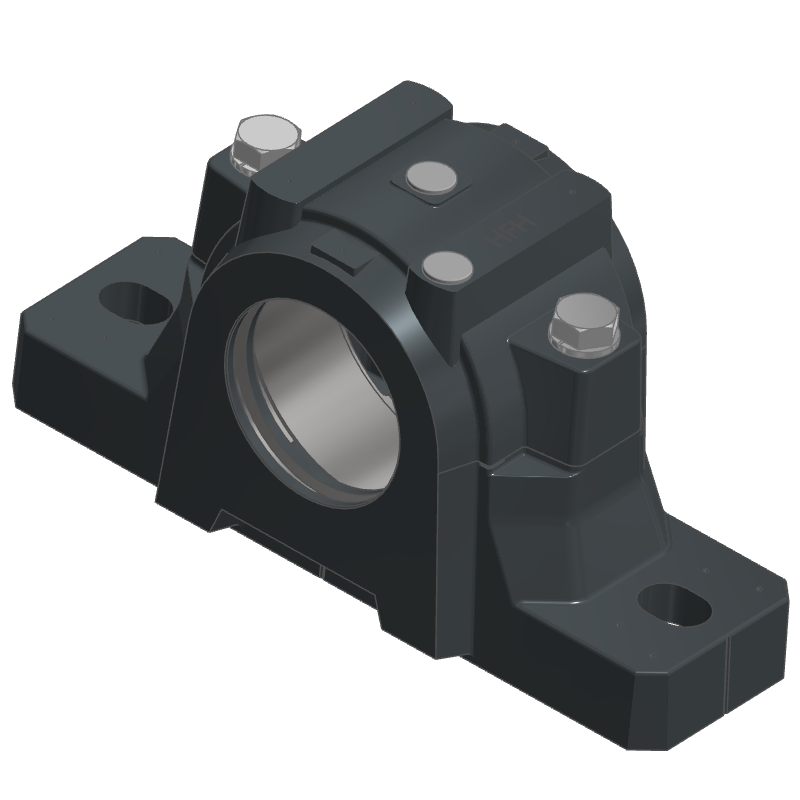

Stehlagergehäuse (geteilt) - SNL600

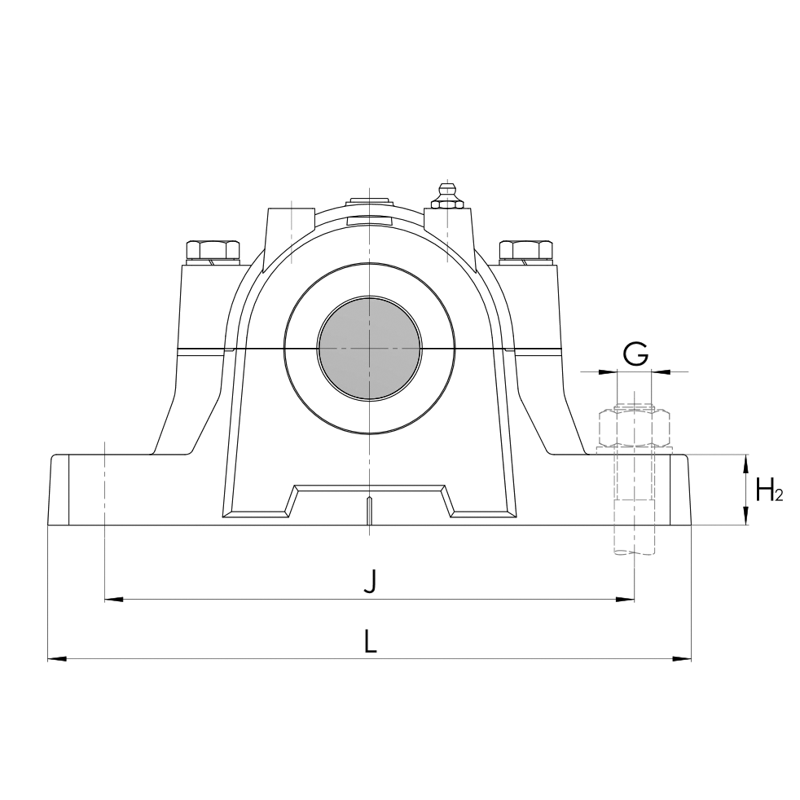

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| da | L | J | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| da | L | J | |||
| mm | mm | mm | |||
| 100615340 | SNL605 | 20,00 | 185,00 | 150,00 | |
| 100615350 | SNL606 | 25,00 | 185,00 | 150,00 | |
| 100615360 | SNL607 | 30,00 | 205,00 | 170,00 | |
| 100615380 | SNL608 | 35,00 | 205,00 | 170,00 | |
| 100615390 | SNL609 | 40,00 | 255,00 | 210,00 | |
| 100615400 | SNL610 | 45,00 | 255,00 | 210,00 | |
| 100615410 | SNL611 | 50,00 | 275,00 | 230,00 | |
| 100615420 | SNL612 | 50,00 | 280,00 | 230,00 | |
| 100615430 | SNL613 | 60,00 | 315,00 | 260,00 | |
| 100615450 | SNL615 | 65,00 | 345,00 | 290,00 | |
| 100615460 | SNL616 | 70,00 | 345,00 | 290,00 | |
| 100615470 | SNL617 | 75,00 | 380,00 | 320,00 | |
| 100615480 | SNL619 | 85,00 | 410,00 | 350,00 | |
| 100615490 | SNL620 | 90,00 | 410,00 | 350,00 | |
