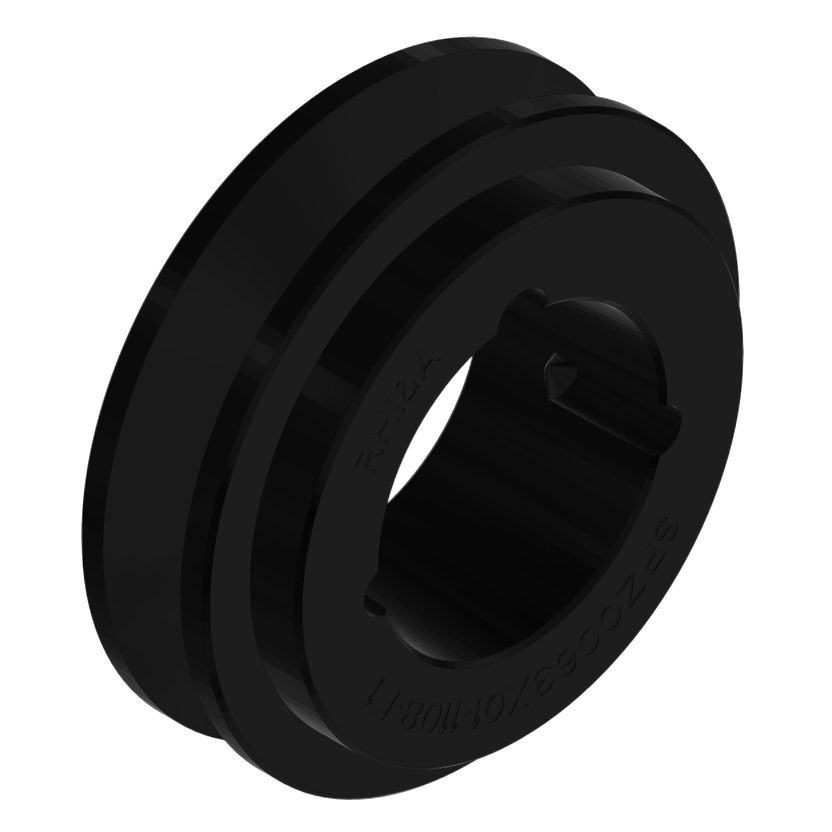

Keilriemenscheibe SPA x 03

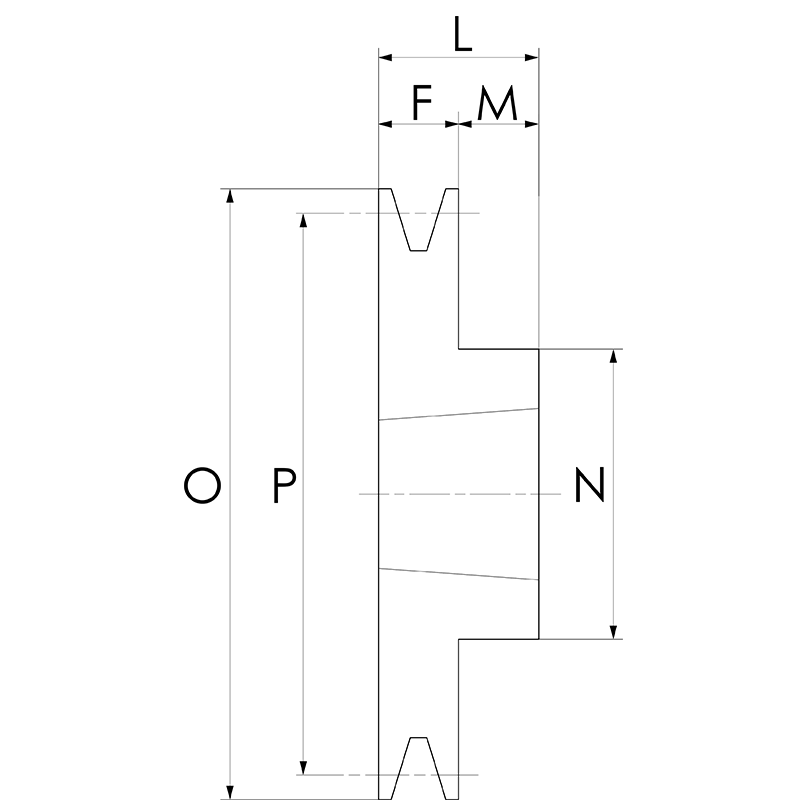

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| L | O | P | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| L | O | P | |||
| mm | mm | mm | |||
| 10051107 | SPA0075x03-1108-F8 | 22,00 | 80,50 | 75,00 | |
| 10051110 | SPA0080x03-1210-F8 | 25,00 | 85,50 | 80,00 | |
| 10051129 | SPA0106x03-1610-F2 | 25,00 | 111,50 | 106,00 | |
| 10051124 | SPA0100x03-1610-F2 | 25,00 | 105,50 | 100,00 | |
| 10051120 | SPA0095x03-1610-F8 | 25,00 | 100,50 | 95,00 | |
| 10051116 | SPA0090x03-1610-F8 | 25,00 | 95,50 | 90,00 | |
| 10051113 | SPA0085x03-1210-F8 | 25,00 | 90,50 | 85,00 | |
| 10051134 | SPA0112x03-2012-F8 | 32,00 | 117,50 | 112,00 | |
| 10051139 | SPA0118x03-2012-F2 | 32,00 | 123,50 | 118,00 | |
| 10051144 | SPA0125x03-2012-F2 | 32,00 | 130,50 | 125,00 | |
| 10051149 | SPA0132x03-2012-F2 | 32,00 | 137,50 | 132,00 | |
| 10051214 | SPA0280x03-2517-F6 | 45,00 | 285,50 | 280,00 | |
| 10051204 | SPA0250x03-2517-F6 | 45,00 | 255,50 | 250,00 | |
| 10051199 | SPA0236x03-2517-F6 | 45,00 | 241,50 | 236,00 | |
| 10051194 | SPA0224x03-2517-F6 | 45,00 | 229,50 | 224,00 | |
| 10051189 | SPA0212x03-2517-F6 | 45,00 | 217,50 | 212,00 | |
| 10051184 | SPA0200x03-2517-F6 | 45,00 | 205,50 | 200,00 | |
| 10051179 | SPA0190x03-2517-F8 | 45,00 | 195,50 | 190,00 | |
| 10051174 | SPA0180x03-2517-F8 | 45,00 | 185,50 | 180,00 | |
| 10051164 | SPA0160x03-2517-F8 | 45,00 | 165,50 | 160,00 | |
| 10051159 | SPA0150x03-2517-F8 | 45,00 | 155,50 | 150,00 | |
| 10051154 | SPA0140x03-2517-F8 | 45,00 | 145,50 | 140,00 | |
| 10051219 | SPA0300x03-3020-F4 | 51,00 | 305,50 | 300,00 | |
| 10051224 | SPA0315x03-3020-F4 | 51,00 | 320,50 | 315,00 | |
| 10051229 | SPA0355x03-3020-F4 | 51,00 | 360,50 | 355,00 | |
| 10051234 | SPA0400x03-3020-F4 | 51,00 | 405,50 | 400,00 | |
| 10051239 | SPA0450x03-3020-F4 | 51,00 | 455,50 | 450,00 | |
| 10051244 | SPA0500x03-3020-F4 | 51,00 | 505,50 | 500,00 | |
| 10051249 | SPA0560x03-3020-F4 | 51,00 | 565,50 | 560,00 | |
| 10051254 | SPA0630x03-3020-F4 | 51,00 | 635,50 | 630,00 | |
| 10051258 | SPA0800x03-3535-F4 | 89,00 | 805,50 | 800,00 | |
| 10140991 | SPA1000x03-3535-F4 | 89,00 | 1.005,50 | 1.000,00 | |
