LR2..-2RS (spherical)

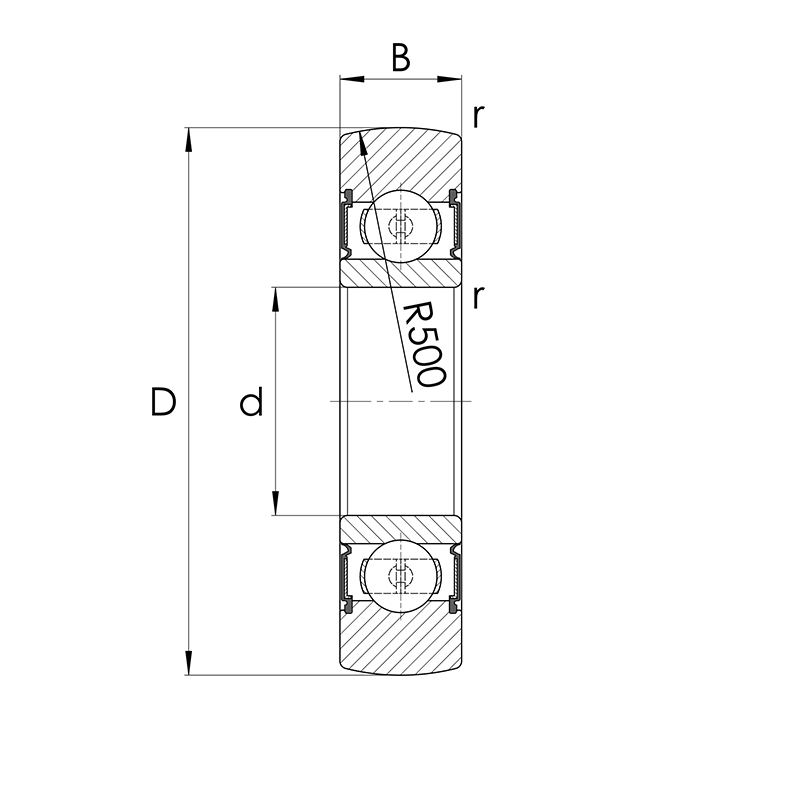

Track roller LR2..-2RS, outer surface spherical
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10050737 LR200-2RS 10.00 32.00 9.00 10050739 LR201-2RS 12.00 35.00 10.00 10050741 LR202-2RS 15.00 40.00 11.00 10050743 LR203-2RS 17.00 47.00 12.00 10050745 LR204-2RS 20.00 52.00 14.00 10050747 LR205-2RS 25.00 62.00 15.00 10050749 LR206-2RS 30.00 72.00 16.00 10050751 LR207-2RS 35.00 80.00 17.00 10050753 LR209-2RS 45.00 90.00 19.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
LR2..-X-2RS (cylindrical)

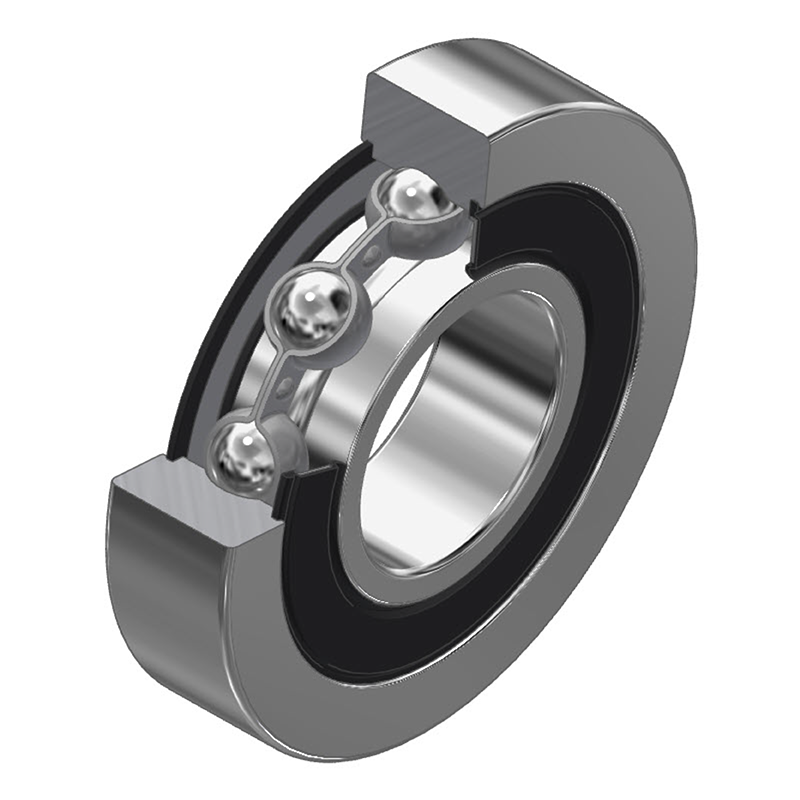

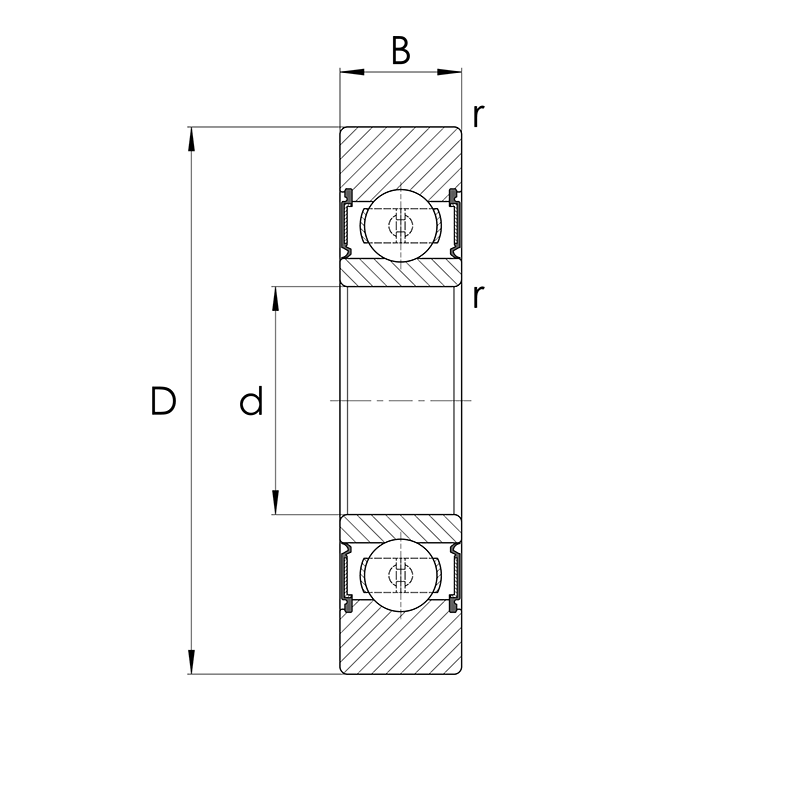

Track roller LR2..-X-2RS, outer surface cylindrical
Description Main dimensions Functions d D B mm mm mm SKU Description Main dimensions Functions d D B mm mm mm 10050738 LR200-X-2RS 10.00 32.00 9.00 10050740 LR201-X-2RS 12.00 35.00 10.00 10050742 LR202-X-2RS 15.00 40.00 11.00 10050744 LR203-X-2RS 17.00 47.00 12.00 10050746 LR204-X-2RS 20.00 52.00 14.00 10050748 LR205-X-2RS 25.00 62.00 15.00 10050750 LR206-X-2RS 30.00 72.00 16.00 10050752 LR207-X-2RS 35.00 80.00 17.00 10050754 LR209-X-2RS 45.00 90.00 19.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
Please note that the maximum possible speed of the rollers can be affected by the following factors:
- permissible operating temperature for rollers
- Type of bearing (deep groove ball bearing or angular contact ball bearing)
- load capacity
- Lubrication conditions
- Cooling conditions
- Seal used
The specified limit speeds serve as a guideline under optimal operating conditions, taking all factors into account.
