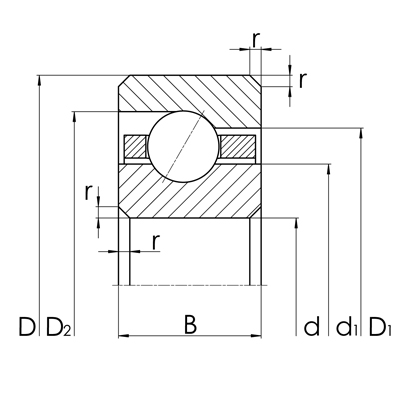

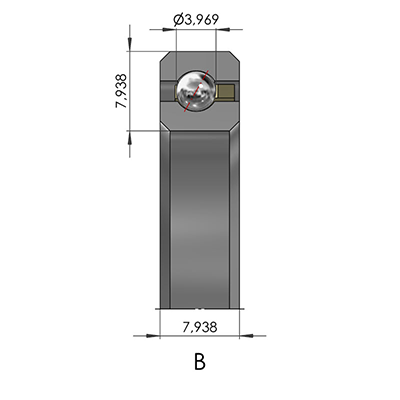

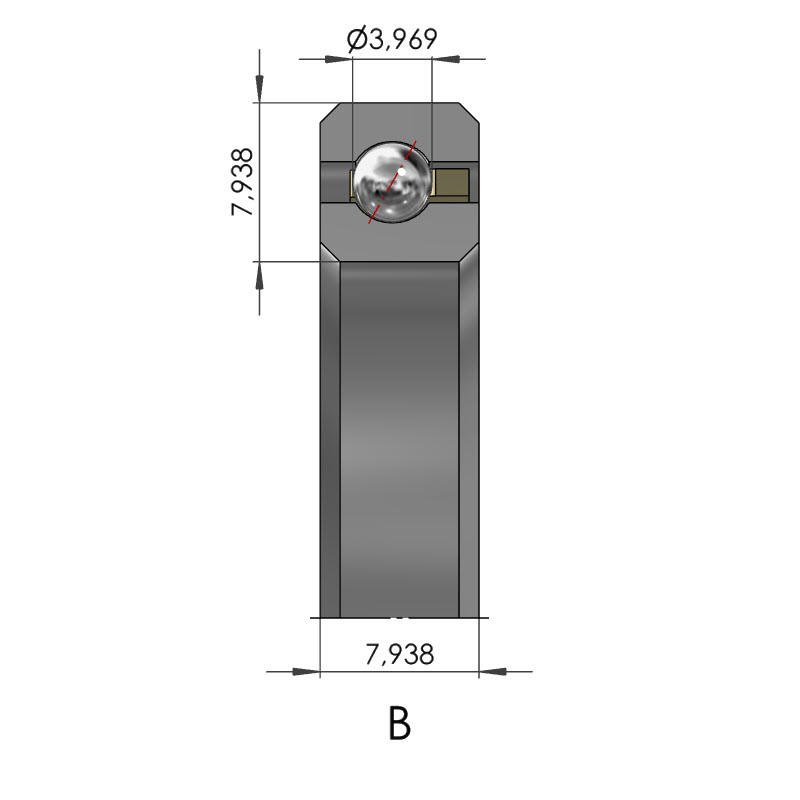

Thin section angular contact ball bearing - CSEB
| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10147405 | CSEB020 | 50.80 | 66.68 | 7.94 | |
| 10147406 | CSEB025 | 63.50 | 79.38 | 7.94 | |
| 10147407 | CSEB030 | 76.20 | 92.08 | 7.94 | |
| 10147408 | CSEB035 | 88.90 | 104.78 | 7.94 | |
| 10147409 | CSEB040 | 101.60 | 117.48 | 7.94 | |
| 10147410 | CSEB042 | 107.95 | 123.83 | 7.94 | |
| 10147411 | CSEB045 | 114.30 | 130.18 | 7.94 | |
| 10157389 | CSEB047 | 120.65 | 136.53 | 7.94 | |
| 10157391 | CSEB050 | 127.00 | 142.88 | 7.94 | |
| 10147412 | CSEB055 | 139.70 | 155.58 | 7.94 | |
| 10147413 | CSEB060 | 152.40 | 168.28 | 7.94 | |
| 10147414 | CSEB065 | 165.10 | 180.98 | 7.94 | |
| 10157393 | CSEB070 | 177.80 | 193.68 | 7.94 | |
| 10157395 | CSEB075 | 190.50 | 206.38 | 7.94 | |
| 10157397 | CSEB080 | 203.20 | 219.08 | 7.94 | |
| 10157399 | CSEB090 | 228.60 | 244.48 | 7.94 | |
| 10157401 | CSEB100 | 254.00 | 269.88 | 7.94 | |
| 10157403 | CSEB110 | 279.40 | 295.28 | 7.94 | |
| 10157405 | CSEB120 | 304.80 | 320.68 | 7.94 | |
| 10157407 | CSEB140 | 355.60 | 371.48 | 7.94 | |
| 10157409 | CSEB160 | 406.40 | 422.28 | 7.94 | |
| 10157411 | CSEB180 | 457.20 | 473.08 | 7.94 | |
| 10157413 | CSEB200 | 508.00 | 523.88 | 7.94 | |
Online Datasheet (Variants, 3D-View)
PDF-Datasheet
Link to shop
Product request
