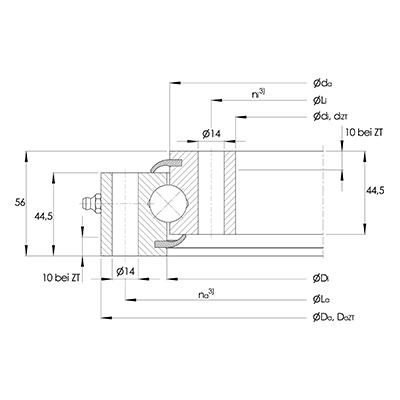

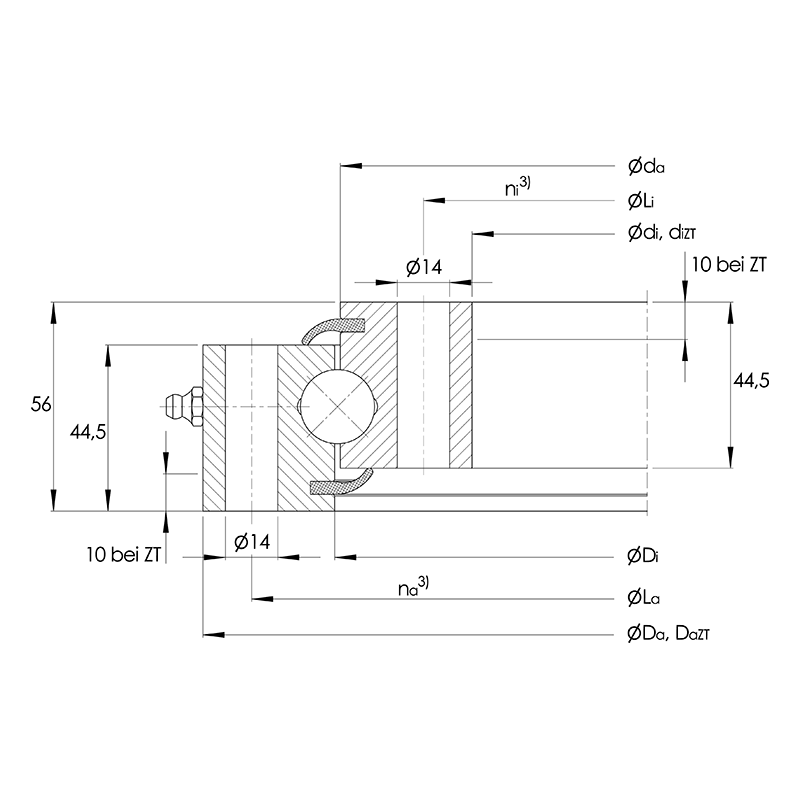

  • VSU20

    Four-point contact slewing bearing, light serie 20, non-toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the outer ring

    • Four-point contact slewing bearing VSU 20*
      Four-point contact slewing bearing VSU 20*
    • Four-point contact slewing bearing VSU 20
      Four-point contact slewing bearing VSU 20
      Description Main dimensions Functions
      d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
      mm mm mm
      SKU Description Main dimensions Functions
      d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
      mm mm mm
      10093813 VSU200414 486.00
      -0.50       		+0.50
      415.50       		412.50
      -0.50
      10093818 VSU200544 616.00
      -0.50       		+0.50
      545.50       		542.50
      -0.50
      10093823 VSU200644 716.00
      -0.60       		+0.60
      645.50       		642.50
      -0.60
      10093828 VSU200744 816.00
      -0.60       		+0.60
      745.50       		742.50
      -0.60
      10093833 VSU200844 916.00
      -0.60       		+0.60
      845.50       		842.50
      -0.60
      10093838 VSU200944 1,016.00
      -0.70       		+0.70
      945.50       		942.50
      -0.70
      10093843 VSU201094 1,166.00
      -0.70       		+0.70
      1,095.50       		1,092.50
      -0.70
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

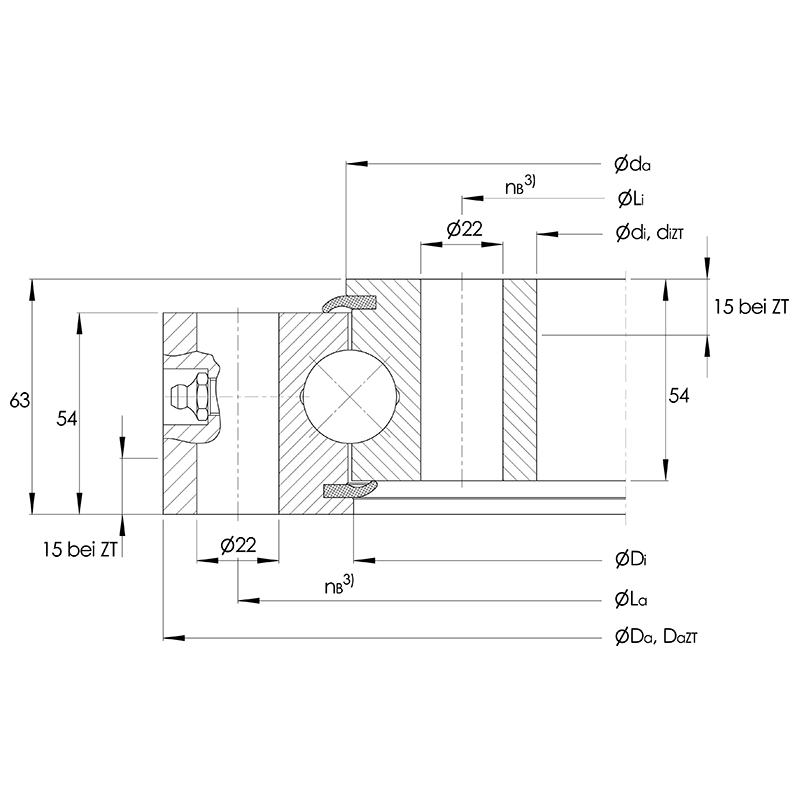

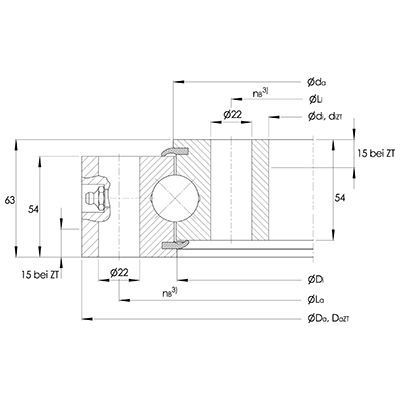

    • VSU25

      Four-point contact slewing bearing, heavy series 25, non-toothed, bearing clearance selectable, sealed, grease nipple on the circumference of the outer ring

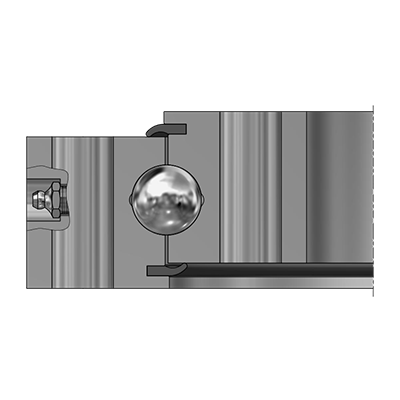

      • Four-point contact slewing bearing VSU 25*
        Four-point contact slewing bearing VSU 25*
      • Four-point contact slewing bearing VSU 25
        Four-point contact slewing bearing VSU 25
        Description Main dimensions Functions
        d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
        mm mm mm
        SKU Description Main dimensions Functions
        d D[[sub]]i[[/sub]] d[[sub]]a[[/sub]]
        mm mm mm
        10097271 VSU250755 855.00 753.00 757.00
        10097272 VSU250855 955.00 853.00 857.00
        10097273 VSU250955 1,055.00 953.00 957.00
        10097274 VSU251055 1,155.00 1,053.00 1,057.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
