  • RNA49

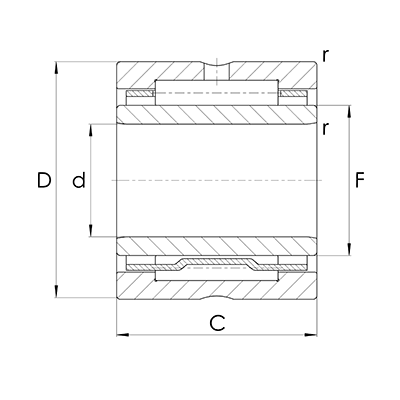

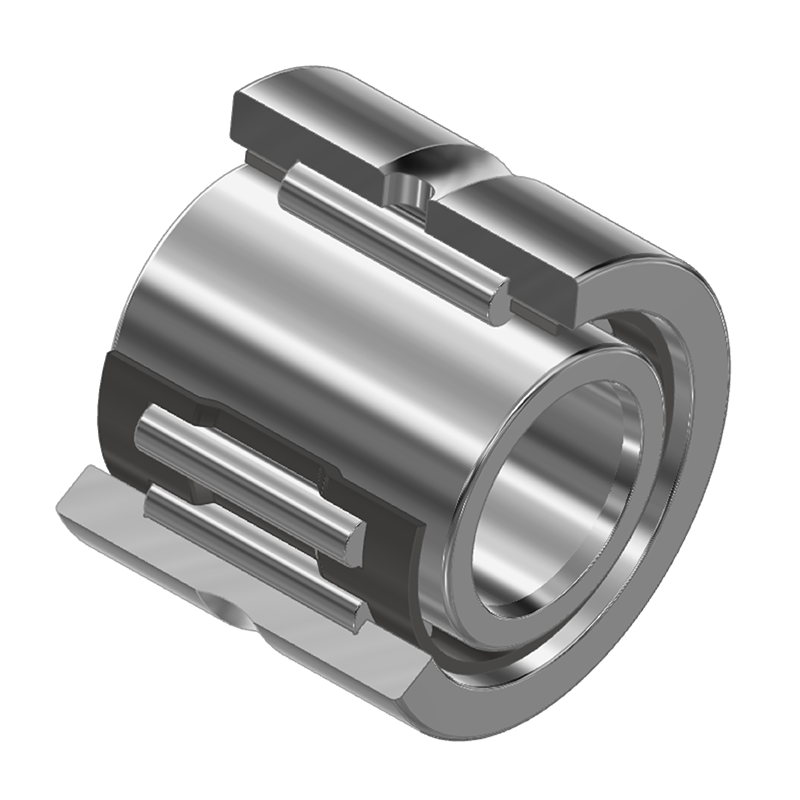

    Nadellager RNA49, Abmessungen nach DIN 617-1 / ISO 1206

    • Nadellager RNA49
      Nadellager RNA49
    • Nadellager RNA49
      Nadellager RNA49
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10041195 RNA4900 14,00 22,00 13,00
      10041198 RNA4901 16,00 24,00 13,00
      10041201 RNA4902 20,00 28,00 13,00
      10041204 RNA4903 22,00 30,00 13,00
      10041207 RNA4904 25,00 37,00 17,00
      10041192 RNA49/22 28,00 39,00 17,00
      10041210 RNA4905 30,00 42,00 17,00
      10041193 RNA49/28 32,00 45,00 17,00
      10041213 RNA4906 35,00 47,00 17,00
      10041194 RNA49/32 40,00 52,00 20,00
      10041216 RNA4907 42,00 55,00 20,00
      10041219 RNA4908 48,00 62,00 22,00
      10041222 RNA4909 52,00 68,00 22,00
      10041225 RNA4910 58,00 72,00 22,00
      10041228 RNA4911 63,00 80,00 25,00
      10041229 RNA4912 68,00 85,00 25,00
      10041230 RNA4913 72,00 90,00 25,00
      10041231 RNA4914 80,00 100,00 30,00
      10041232 RNA4915 85,00 105,00 30,00
      10041233 RNA4916 90,00 110,00 30,00
      10041234 RNA4917 100,00 120,00 35,00
      10041235 RNA4918 105,00 125,00 35,00
      10041236 RNA4919 110,00 130,00 35,00
      10041237 RNA4920 115,00 140,00 40,00
      10041238 RNA4922 125,00 150,00 40,00
      10041239 RNA4924 135,00 165,00 45,00
      10041240 RNA4926 150,00 180,00 50,00
      10041241 RNA4928 160,00 190,00 50,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • RNA49-RSR

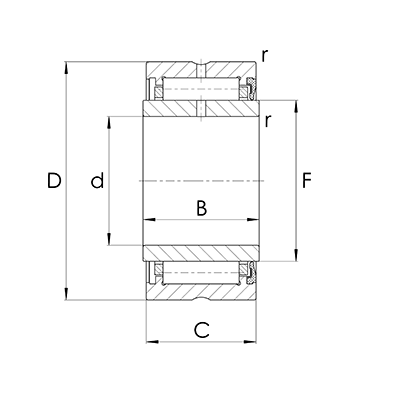

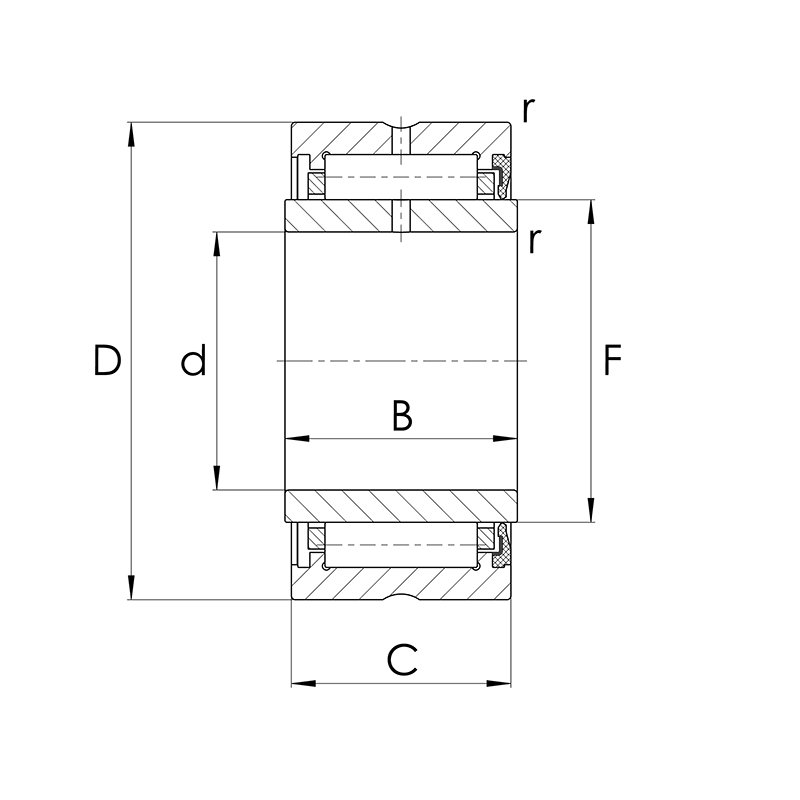

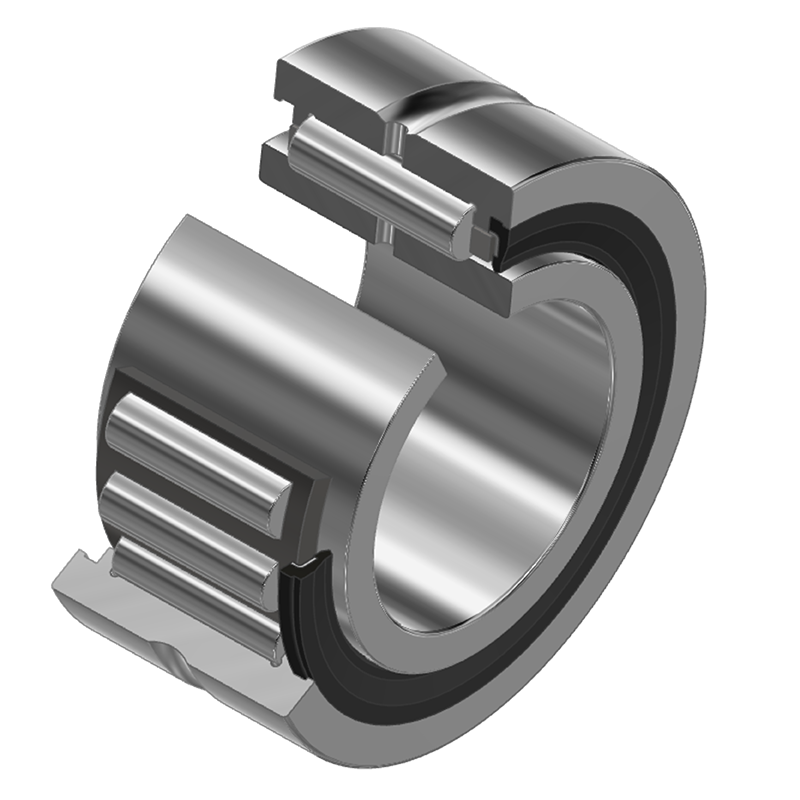

      Nadellager RNA49-RSR, Abmessungen nach DIN 617-1 / ISO 1206

      • Nadellager RNA49-RSR
        Nadellager RNA49-RSR
      • Nadellager RNA49-RSR
        Nadellager RNA49-RSR
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10041197 RNA4900-RSR 14,00 22,00 13,00
        10041200 RNA4901-RSR 16,00 24,00 13,00
        10041203 RNA4902-RSR 20,00 28,00 13,00
        10041206 RNA4903-RSR 22,00 30,00 13,00
        10041209 RNA4904-RSR 25,00 37,00 17,00
        10041212 RNA4905-RSR 30,00 42,00 17,00
        10041215 RNA4906-RSR 35,00 47,00 17,00
        10041218 RNA4907-RSR 42,00 55,00 20,00
        10041221 RNA4908-RSR 48,00 62,00 22,00
        10041224 RNA4909-RSR 52,00 68,00 22,00
        10041227 RNA4910-RSR 58,00 72,00 22,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

      • RNA49-2RSR

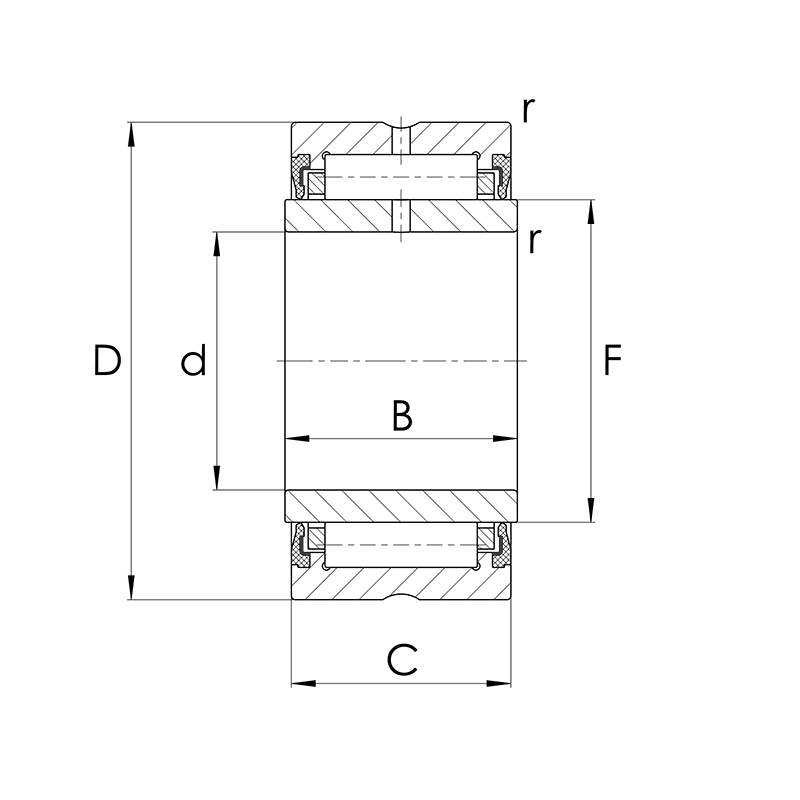

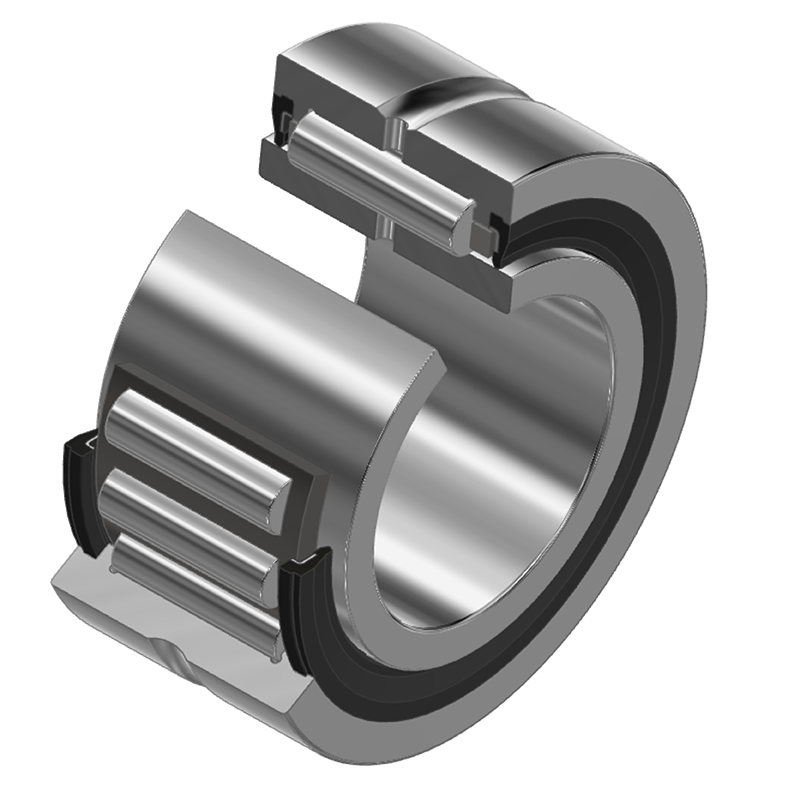

        Nadellager RNA49-2RSR, Abmessungen nach DIN 617-1 / ISO 1206

        • Nadellager RNA49-2RSR
          Nadellager RNA49-2RSR
        • Nadellager RNA49-2RSR
          Nadellager RNA49-2RSR
          Description Main dimensions Functions
          Fw D C
          mm mm mm
          SKU Description Main dimensions Functions
          Fw D C
          mm mm mm
          10041196 RNA4900-2RSR 14,00 22,00 13,00
          10041199 RNA4901-2RSR 16,00 24,00 13,00
          10041202 RNA4902-2RSR 20,00 28,00 13,00
          10041205 RNA4903-2RSR 22,00 30,00 13,00
          10041208 RNA4904-2RSR 25,00 37,00 17,00
          10041211 RNA4905-2RSR 30,00 42,00 17,00
          10041214 RNA4906-2RSR 35,00 47,00 17,00
          10041217 RNA4907-2RSR 42,00 55,00 20,00
          10041220 RNA4908-2RSR 48,00 62,00 22,00
          10041223 RNA4909-2RSR 52,00 68,00 22,00
          10041226 RNA4910-2RSR 58,00 72,00 22,00
          Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
