  • 54200

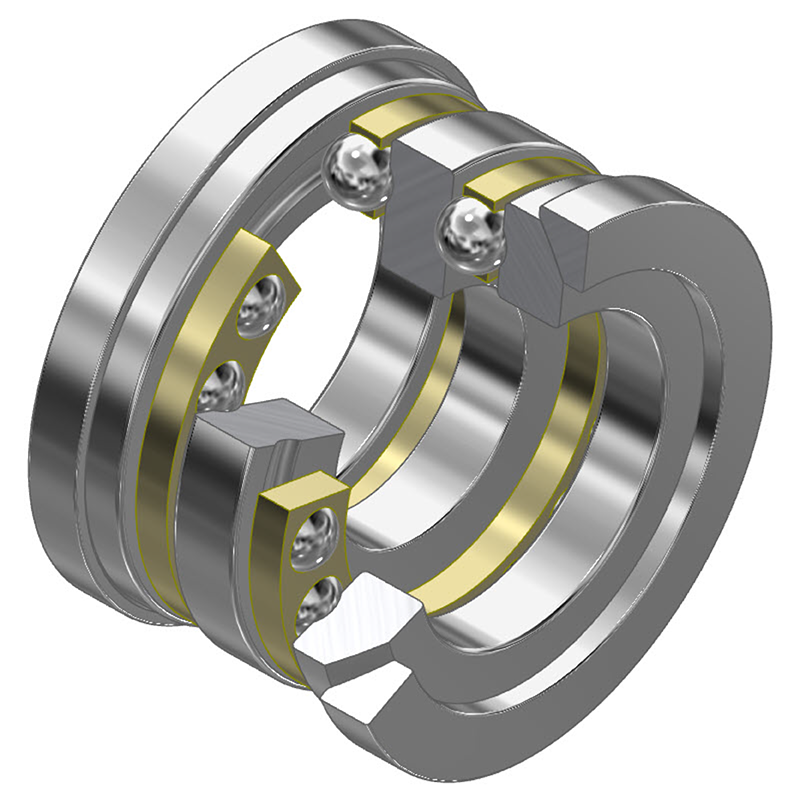

    Axial deep groove ball bearing, Serie 542, two-sided acting

    • Axial deep groove ball bearing
      Axial deep groove ball bearing
    • Axial deep groove ball bearing
      Axial deep groove ball bearing
    • Axial deep groove ball bearing
      Axial deep groove ball bearing

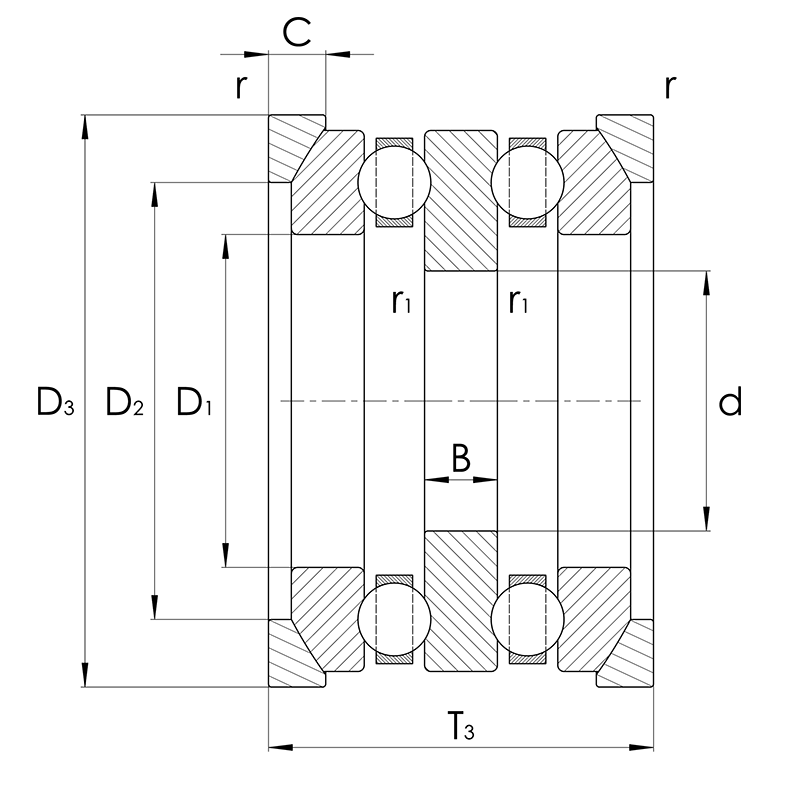

      Description Main dimensions Functions
      d D T
      mm mm mm
      SKU Description Main dimensions Functions
      d D T
      mm mm mm
      10365084 54205 20.00 47.00 0
      10365085 54206 25.00 52.00 0
      10082443 54208 30.00 68.00 0
      10082442 54207 30.00 62.00 0
      10082444 54209 35.00 73.00 0
      10365086 54210 40.00 78.00 0
      10082445 54211 45.00 90.00 0
      10365087 54212 50.00 95.00 0
      10365089 54214 55.00 105.00 0
      10365088 54213 55.00 100.00 0
      10365090 54215 60.00 110.00 0
      10365091 54216 65.00 115.00 0
      10365092 54217 70.00 125.00 0
      10365093 54218 75.00 135.00 0
      10365094 54220 85.00 150.00 0
      10365095 54222 95.00 160.00 0
      10365096 54224 100.00 170.00 0
      10365097 54226 110.00 190.00 0
      10365098 54228 120.00 200.00 0
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • 54300

      Axial deep groove ball bearing, Serie 543, two-sided acting

      • Axial deep groove ball bearing
        Axial deep groove ball bearing
      • Axial deep groove ball bearing
        Axial deep groove ball bearing
      • Axial deep groove ball bearing
        Axial deep groove ball bearing
        Description Main dimensions Functions
        d D T
        mm mm mm
        SKU Description Main dimensions Functions
        d D T
        mm mm mm
        10365099 54305 20.00 52.00 0
        10082446 54306 25.00 60.00 0
        10082447 54307 30.00 68.00 0
        10082448 54308 30.00 78.00 0
        10082449 54309 35.00 85.00 0
        10082450 54310 40.00 95.00 0
        10365100 54311 45.00 105.00 0
        10082451 54312 50.00 110.00 0
        10365101 54313 50.00 115.00 0
        10365102 54314 55.00 125.00 0
        10365103 54315 60.00 135.00 0
        10082452 54316 65.00 140.00 0
        10082453 54317 70.00 150.00 0
        10365104 54318 75.00 155.00 0
        10365105 54320 85.00 170.00 0
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
