  • GAR-DO

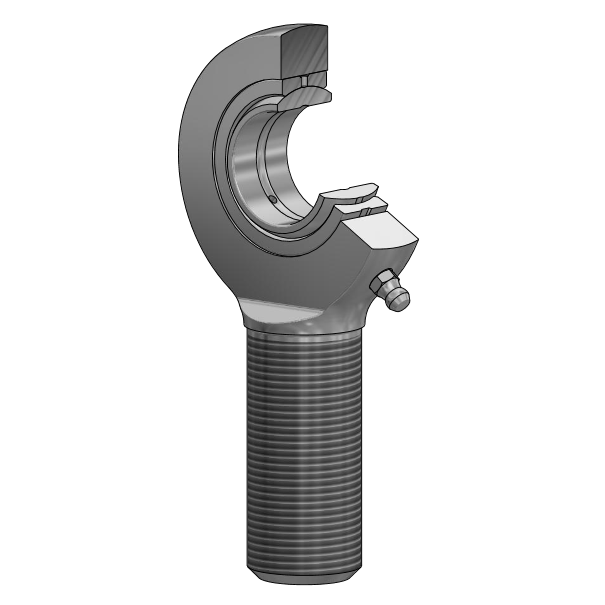

    Radial-Gelenkkopf GAR..DO / GAL..DO nach DIN ISO 12240-4

    • Radial-Gelenkkopf GAR..DO
      Radial-Gelenkkopf GAR..DO
    • Radial-Gelenkkopf GAR..DO
      Radial-Gelenkkopf GAR..DO
    • Radial-Gelenkkopf GAR..DO
      Radial-Gelenkkopf GAR..DO

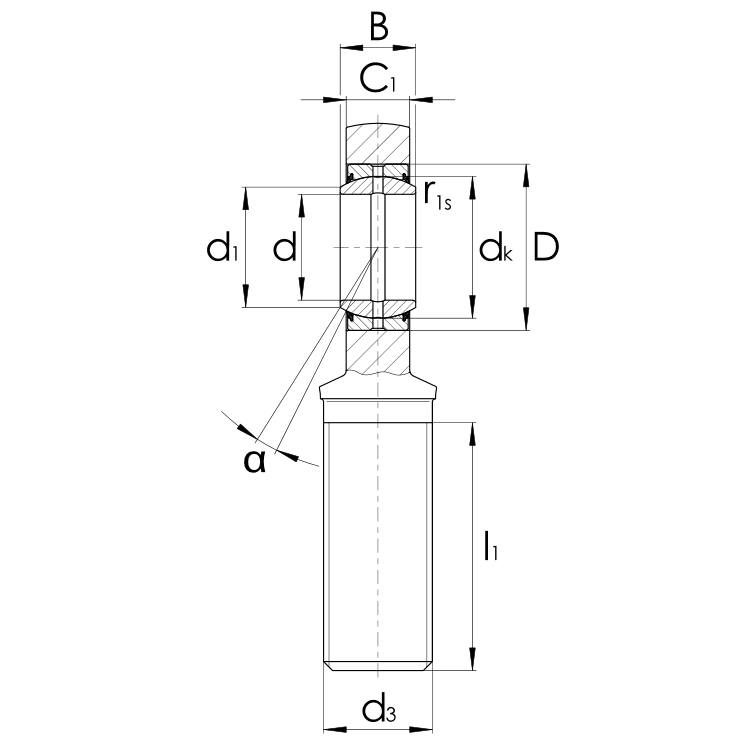

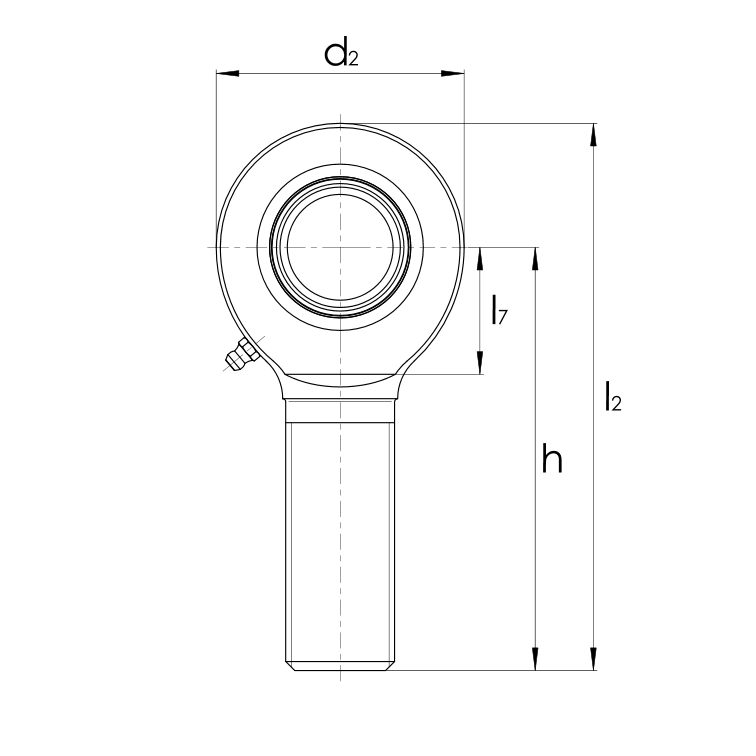

      Description Main dimensions Functions
      d D B
      mm mm mm
      SKU Description Main dimensions Functions
      d D B
      mm mm mm
      10041366 GAR6-DO 6,00 14,00 6,00
      10041372 GAR8-DO 8,00 16,00 8,00
      10041344 GAR10-DO 10,00 19,00 9,00
      10041346 GAR12-DO 12,00 22,00 10,00
      10041348 GAR15-DO 15,00 26,00 12,00
      10041350 GAR17-DO 17,00 30,00 14,00
      10041352 GAR20-DO 20,00 35,00 16,00
      10041354 GAR25-DO 25,00 42,00 20,00
      10041356 GAR30-DO 30,00 47,00 22,00
      10041358 GAR35-DO-2RS 35,00 55,00 25,00
      10041360 GAR40-DO-2RS 40,00 62,00 28,00
      10041362 GAR45-DO-2RS 45,00 68,00 32,00
      10041364 GAR50-DO-2RS 50,00 75,00 35,00
      10041368 GAR60-DO-2RS 60,00 90,00 44,00
      10041370 GAR70-DO-2RS 70,00 105,00 49,00
      10041374 GAR80-DO-2RS 80,00 120,00 55,00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

    • GAKL-PW

      Radial-Gelenkkopf GAR..DO / GAL..DO nach DIN ISO 12240-4

      • Radial-Gelenkkopf GAL..DO
        Radial-Gelenkkopf GAL..DO
      • Radial-Gelenkkopf GAL..DO
        Radial-Gelenkkopf GAL..DO
      • Radial-Gelenkkopf GAL..DO
        Radial-Gelenkkopf GAL..DO
        Description Main dimensions Functions
        d D B
        mm mm mm
        SKU Description Main dimensions Functions
        d D B
        mm mm mm
        10041334 GAL6-DO 6,00 14,00 6,00
        10041340 GAL8-DO 8,00 16,00 8,00
        10041312 GAL10-DO 10,00 19,00 9,00
        10041314 GAL12-DO 12,00 22,00 10,00
        10041316 GAL15-DO 15,00 26,00 12,00
        10041318 GAL17-DO 17,00 30,00 14,00
        10041320 GAL20-DO 20,00 35,00 16,00
        10041322 GAL25-DO 25,00 42,00 20,00
        10041324 GAL30-DO 30,00 47,00 22,00
        10041326 GAL35-DO-2RS 35,00 55,00 25,00
        10041328 GAL40-DO-2RS 40,00 62,00 28,00
        10041330 GAL45-DO-2RS 45,00 68,00 32,00
        10041332 GAL50-DO-2RS 50,00 75,00 35,00
        10041336 GAL60-DO-2RS 60,00 90,00 44,00
        10041338 GAL70-DO-2RS 70,00 105,00 49,00
        10041342 GAL80-DO-2RS 80,00 120,00 55,00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
