ZARN

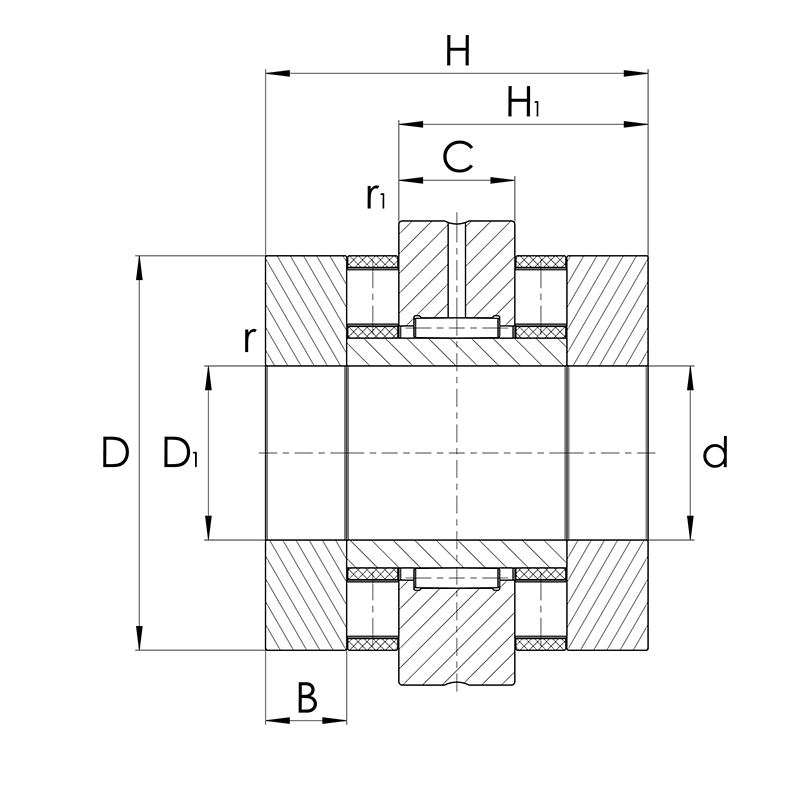

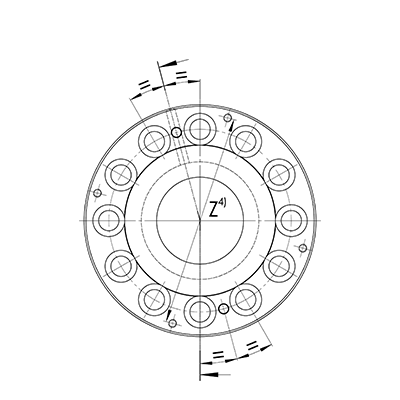

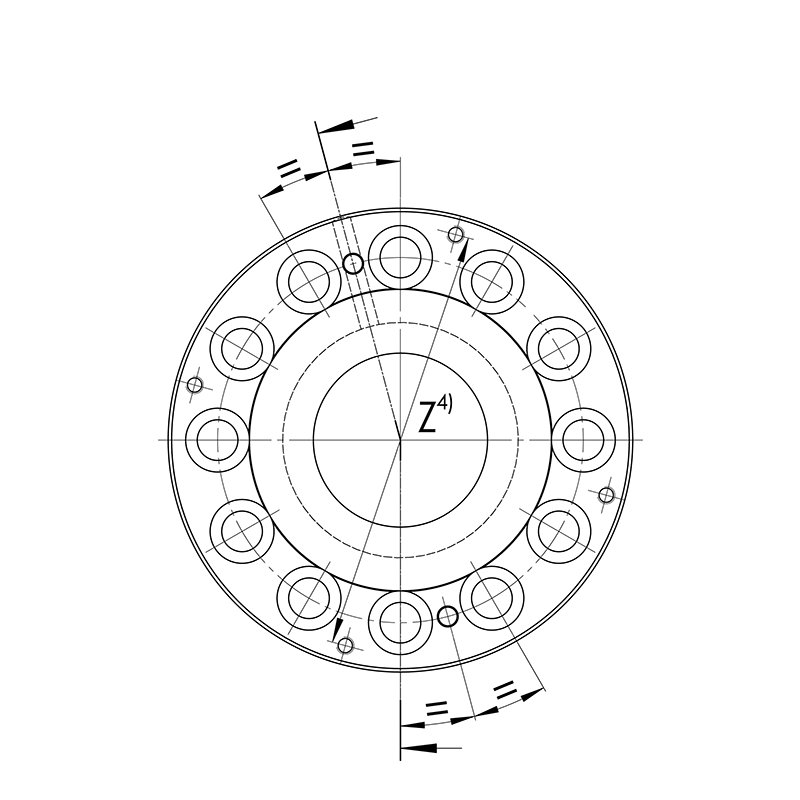

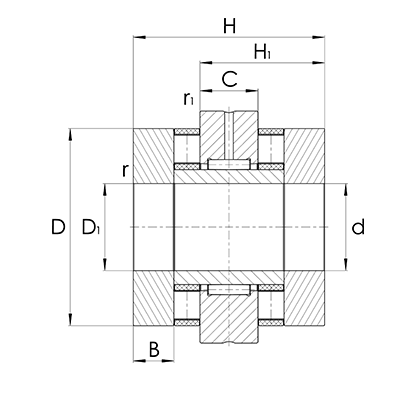

Needle roller axial cylindrical roller bearing ZARN
Description Main dimensions Functions d D H mm mm mm SKU Description Main dimensions Functions d D H mm mm mm 10146917 ZARN1545-TV 15.00 45.00 40.00 10144505 ZARN1747-TV 17.00 47.00 43.00 10144506 ZARN2052-TV 20.00 52.00 46.00 10144507 ZARN2062-TV 20.00 62.00 60.00 10144509 ZARN2572-TV 25.00 72.00 60.00 10144508 ZARN2557-TV 25.00 57.00 50.00 10144511 ZARN3080-TV 30.00 80.00 66.00 10144510 ZARN3062-TV 30.00 62.00 50.00 10144512 ZARN3570-TV 35.00 70.00 54.00 10144513 ZARN3585-TV 35.00 85.00 66.00 10144514 ZARN4075-TV 40.00 75.00 54.00 10144515 ZARN4090-TV 40.00 90.00 75.00 10144516 ZARN4580-TV 45.00 80.00 60.00 10144517 ZARN45105-TV 45.00 105.00 82.00 10144518 ZARN5090-TV 50.00 90.00 60.00 10144519 ZARN50110-TV 50.00 110.00 82.00 10144520 ZARN55115-TV 55.00 115.00 82.00 10144521 ZARN60120-TV 60.00 120.00 82.00 10144522 ZARN65125-TV 65.00 125.00 82.00 10144523 ZARN70130-TV 70.00 130.00 82.00 10144524 ZARN75155-TV 75.00 155.00 100.00 10144525 ZARN90180-TV 90.00 180.00 100.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request -
ZARN-L

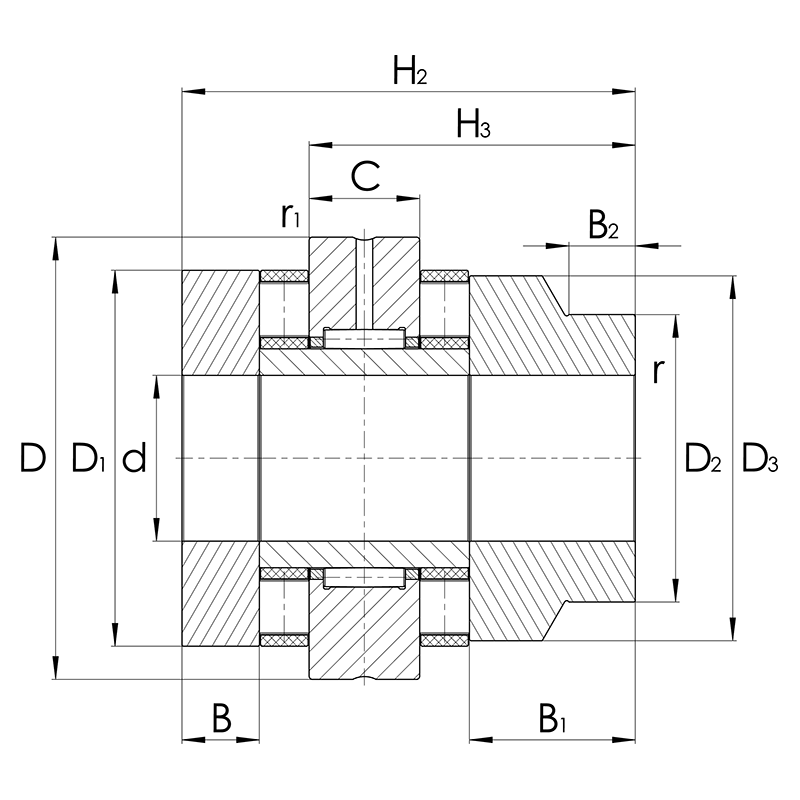

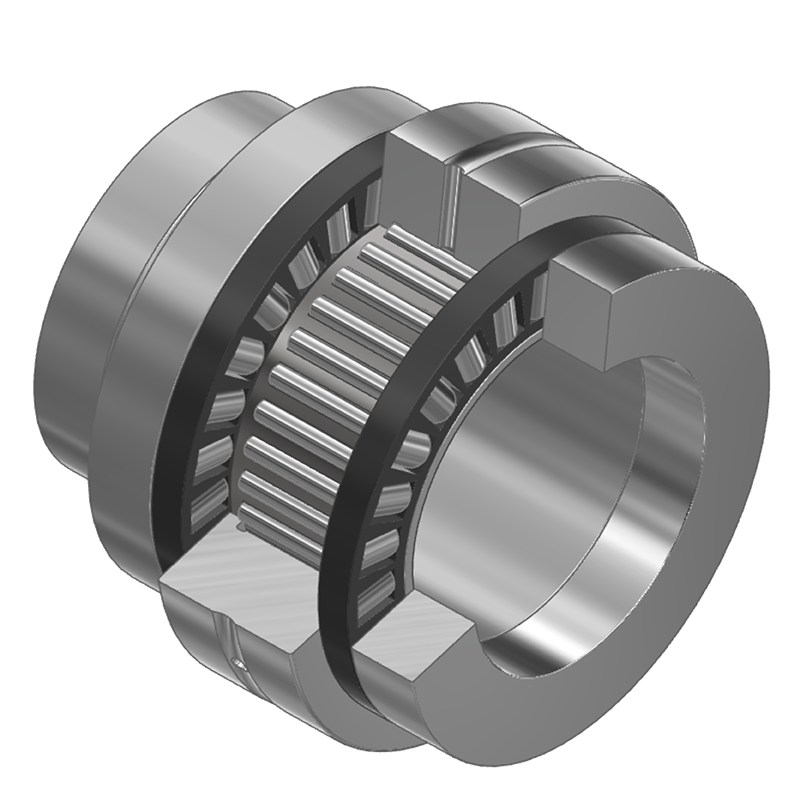

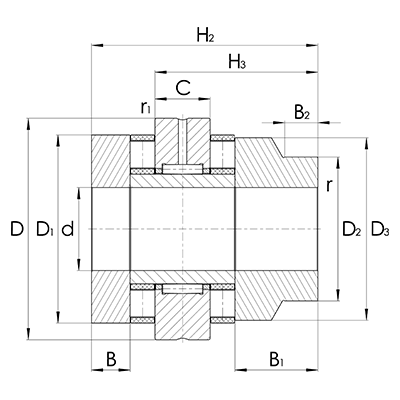

Needle roller axial cylindrical roller bearing ZARN-L
Description Main dimensions Functions d D H2 mm mm mm SKU Description Main dimensions Functions d D H2 mm mm mm 10144526 ZARN1545-L-TV 15.00 45.00 53.00 10144527 ZARN1747-L-TV 17.00 47.00 57.00 10144528 ZARN2052-L-TV 20.00 52.00 60.00 10144529 ZARN2062-L-TV 20.00 62.00 75.00 10144530 ZARN2557-L-TV 25.00 57.00 65.00 10144531 ZARN2572-L-TV 25.00 72.00 75.00 10144532 ZARN3062-L-TV 30.00 62.00 65.00 10144533 ZARN3080-L-TV 30.00 80.00 82.00 10144534 ZARN3570-L-TV 35.00 70.00 70.00 10144535 ZARN3585-L-TV 35.00 85.00 82.00 10144537 ZARN4090-L-TV 40.00 90.00 93.00 10144536 ZARN4075-L-TV 40.00 75.00 70.00 10144538 ZARN4580-L-TV 45.00 80.00 75.00 10144539 ZARN45105-L-TV 45.00 105.00 103.00 10144540 ZARN5090-L-TV 50.00 90.00 78.00 10144541 ZARN50110-L-TV 50.00 110.00 103.00 10144542 ZARN55115-L-TV 55.00 115.00 103.00 10144543 ZARN60120-L-TV 60.00 120.00 103.00 10144544 ZARN65125-L-TV 65.00 125.00 103.00 10144545 ZARN70130-L-TV 70.00 130.00 103.00 10144546 ZARN75155-L-TV 75.00 155.00 125.00 10144547 ZARN90180-L-TV 90.00 180.00 135.00 Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
