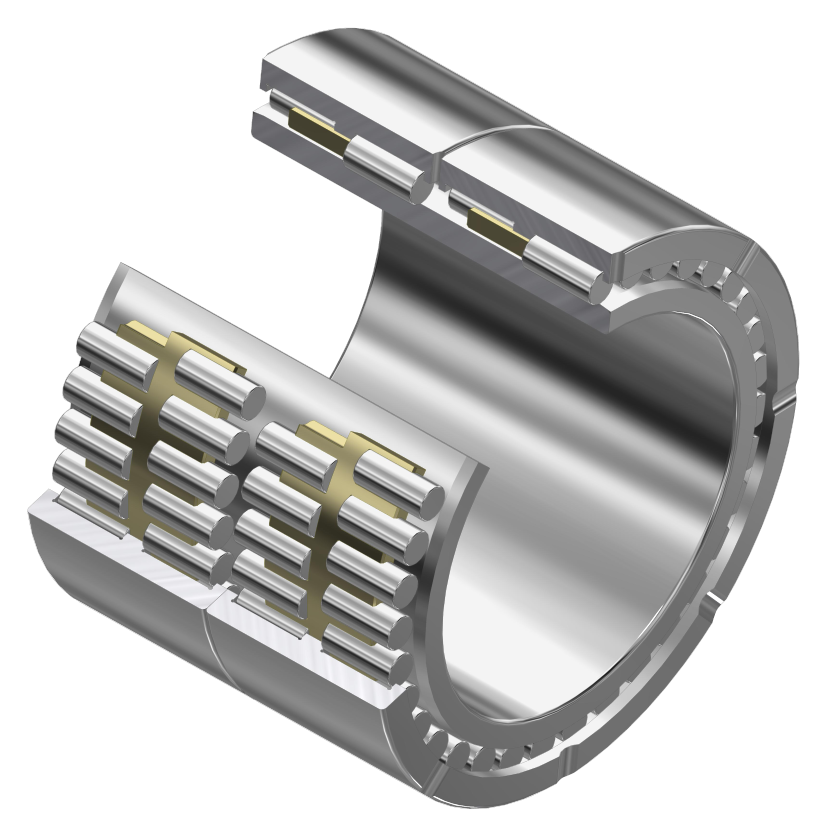

Cylindrical roller bearing BC4, four rows

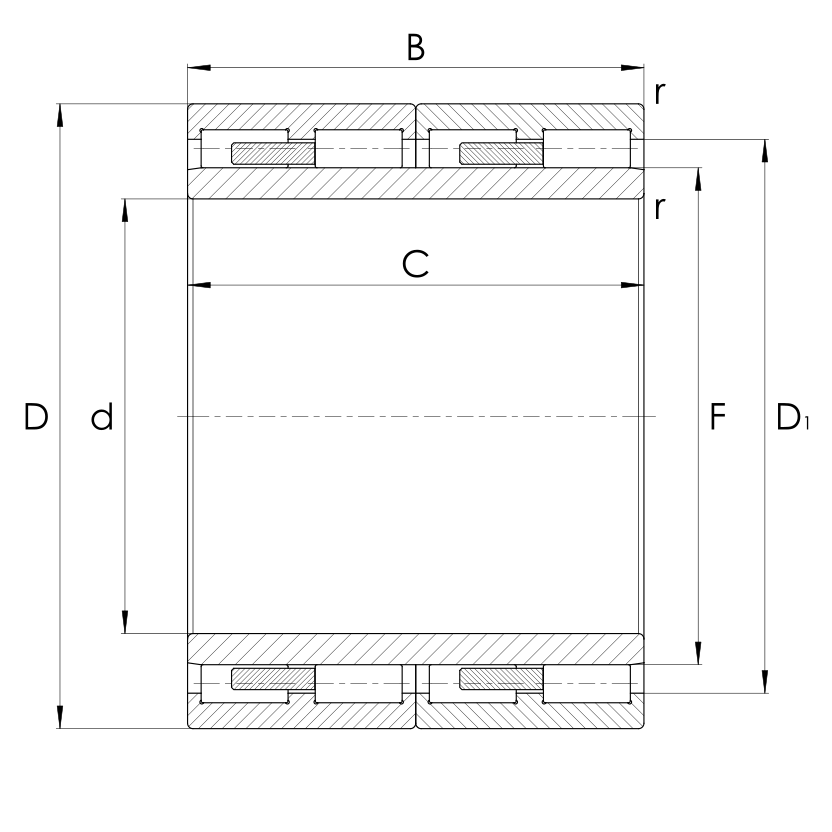

| Description | Main dimensions | Functions | ||
|---|---|---|---|---|
| d | D | B | ||
| mm | mm | mm | ||
| SKU | Description | Main dimensions | Functions | ||
|---|---|---|---|---|---|
| d | D | B | |||
| mm | mm | mm | |||
| 10555887 | BC4-0108 | 160.00 | 230.00 | 130.00 | |
| 10555890 | BC4-0111 | 165.10 | 225.45 | 168.30 | |
| 10555897 | BC4-0119 | 170.00 | 240.00 | 130.00 | |
| 10555896 | BC4-0118 | 170.00 | 230.00 | 160.00 | |
| 10555893 | BC4-0114 | 180.00 | 260.00 | 168.00 | |
| 10555888 | BC4-0109 | 190.00 | 270.00 | 200.00 | |
| 10555894 | BC4-0116 | 190.00 | 280.00 | 200.00 | |
| 10555879 | BC4-0098 | 190.00 | 260.00 | 168.00 | |
| 10555892 | BC4-0113 | 200.00 | 270.00 | 170.00 | |
| 10555872 | BC4-0051 | 200.00 | 270.00 | 200.00 | |
| 10555873 | BC4-0092 | 200.00 | 280.00 | 200.00 | |
| 10555876 | BC4-0095 | 200.00 | 280.00 | 170.00 | |
| 10555885 | BC4-0106 | 200.00 | 290.00 | 192.00 | |
| 10555878 | BC4-0097 | 220.00 | 310.00 | 225.00 | |
| 10555895 | BC4-0117 | 220.00 | 310.00 | 192.00 | |
| 10555891 | BC4-0112 | 230.00 | 330.00 | 206.00 | |
| 10555880 | BC4-0099 | 240.00 | 330.00 | 220.00 | |
| 10555889 | BC4-0110 | 260.00 | 370.00 | 220.00 | |
| 10555881 | BC4-0100 | 280.00 | 390.00 | 275.00 | |
| 10555886 | BC4-0107 | 280.00 | 390.00 | 220.00 | |
| 10555875 | BC4-0094 | 300.00 | 420.00 | 300.00 | |
| 10555898 | BC4-0124 | 300.00 | 420.00 | 300.00 | |
| 10555861 | 315802/VJ202 | 400.00 | 590.00 | 440.00 | |
| 10555913 | BC4-8059 | 400.00 | 560.00 | 300.00 | |
| 10555853 | 313513 | 420.00 | 600.00 | 440.00 | |
| 10555868 | 635043 | 440.00 | 660.00 | 340.00 | |
| 10555867 | 319320 | 480.00 | 680.00 | 420.00 | |
| 10555866 | 319254/VJ202 | 500.00 | 650.00 | 260.00 | |
| 10555850 | 312844/VJ202 | 529.91 | 870.00 | 670.00 | |
| 10555860 | 315526 | 606.67 | 920.00 | 640.00 | |
| 10555915 | BC4-8066/HA3 | 750.00 | 1,090.00 | 750.00 | |
| 10555916 | BC4-8067/HA3 | 900.00 | 1,280.00 | 780.00 | |
| 10555904 | BC4-8016/HA4 | 1,300.00 | 1,655.00 | 890.00 | |
| 10555910 | BC4-8042/HA4 | 1,400.00 | 1,780.00 | 1,200.00 | |
