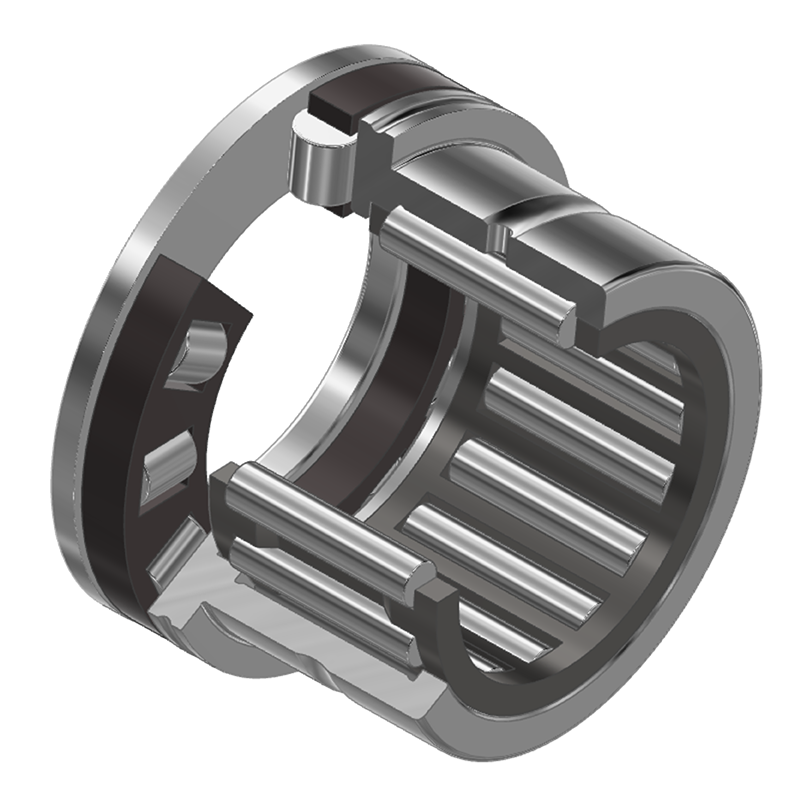

  • NKXR

    Needle axial cylindrical roller bearing according to DIN 5492

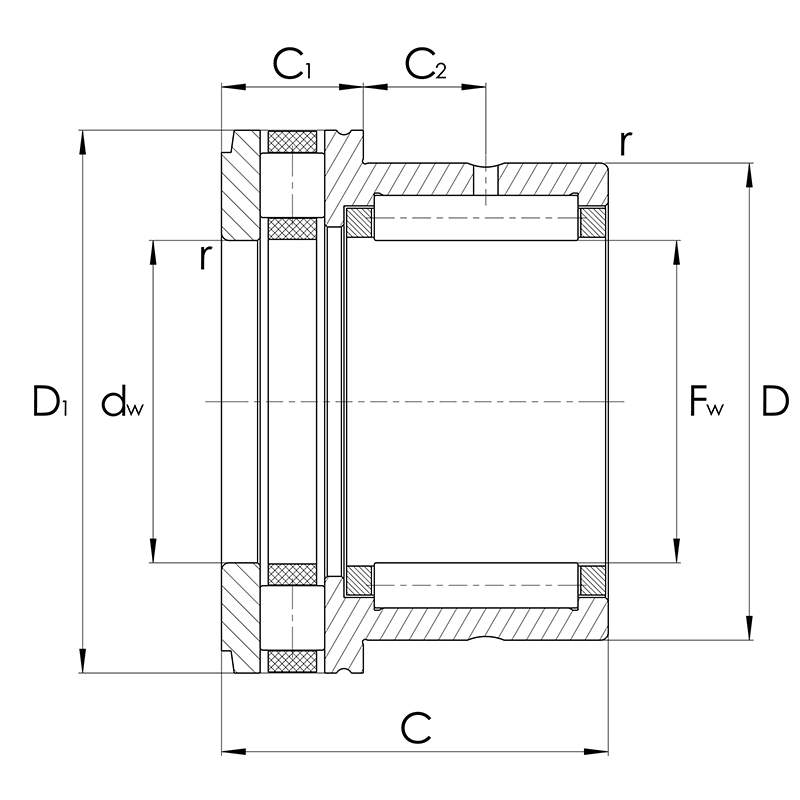

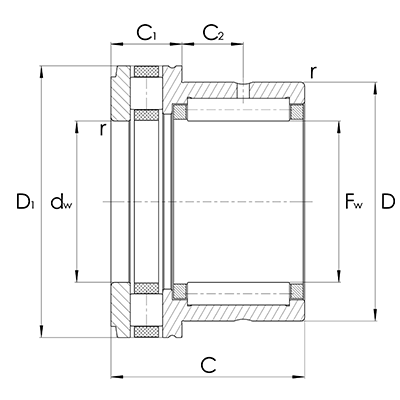

    • NKXR, axial one-side acting
      NKXR, axial one-side acting
    • NKXR, axial one-side acting
      NKXR, axial one-side acting
    • NKXR, axial one-side acting
      NKXR, axial one-side acting
      Description Main dimensions Functions
      Fw D C
      mm mm mm
      SKU Description Main dimensions Functions
      Fw D C
      mm mm mm
      10080551 NKXR15 15.00 24.00 23.00
      10080553 NKXR17 17.00 26.00 25.00
      10080555 NKXR20 20.00 30.00 30.00
      10080557 NKXR25 25.00 37.00 30.00
      10080559 NKXR30 30.00 42.00 30.00
      10080561 NKXR35 35.00 47.00 30.00
      10080563 NKXR40 40.00 52.00 32.00
      10080565 NKXR45 45.00 58.00 32.00
      10080567 NKXR50 50.00 62.00 35.00
      Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request

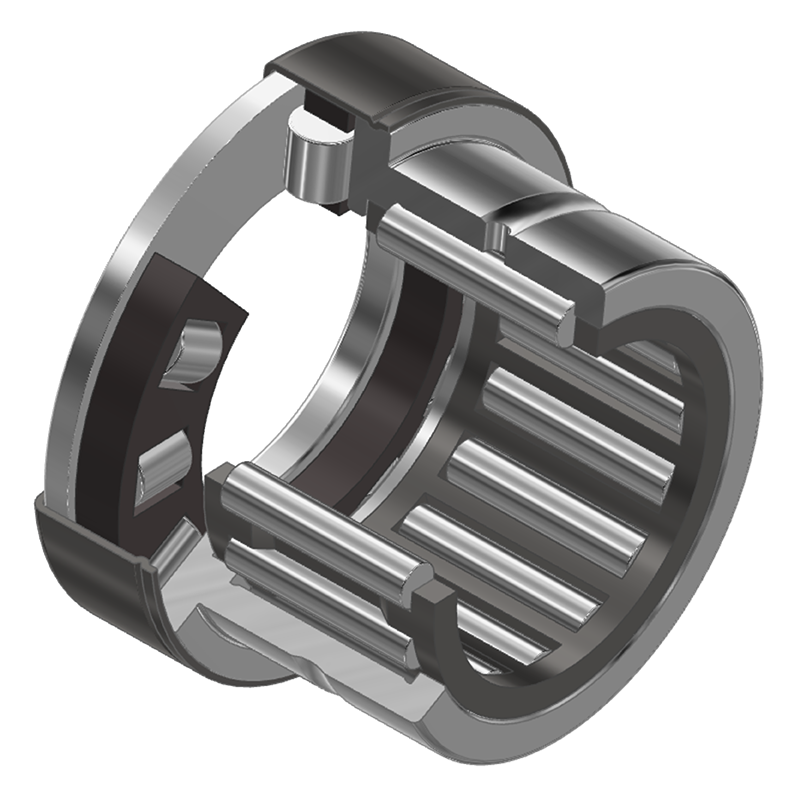

    • NKXR..-Z

      Needle axial cylindrical roller bearing according to DIN 5492

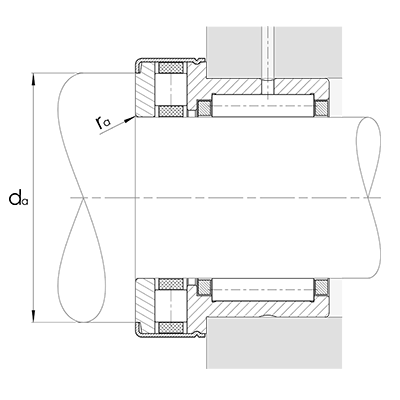

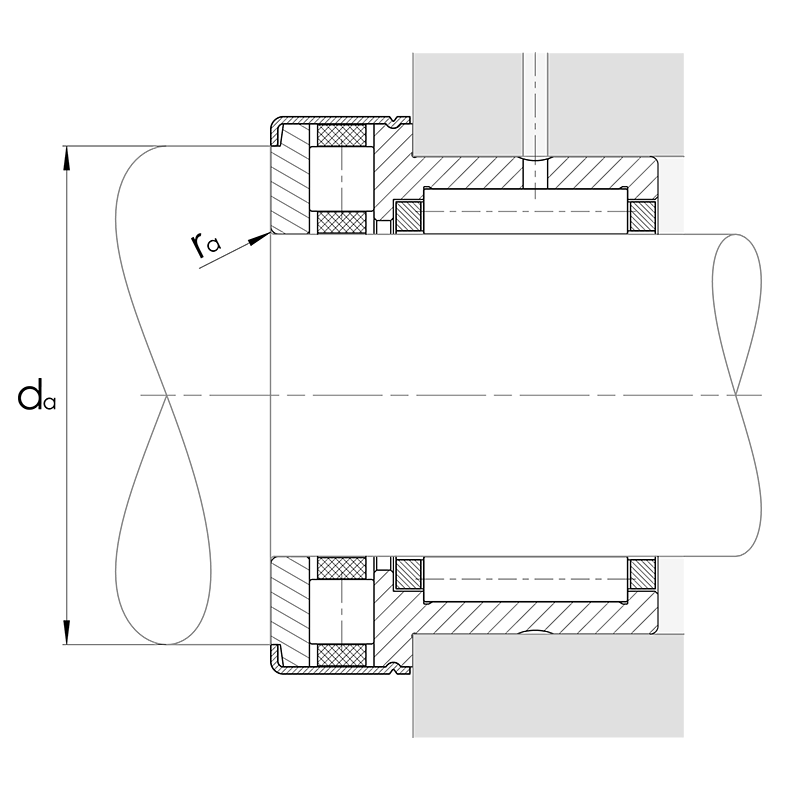

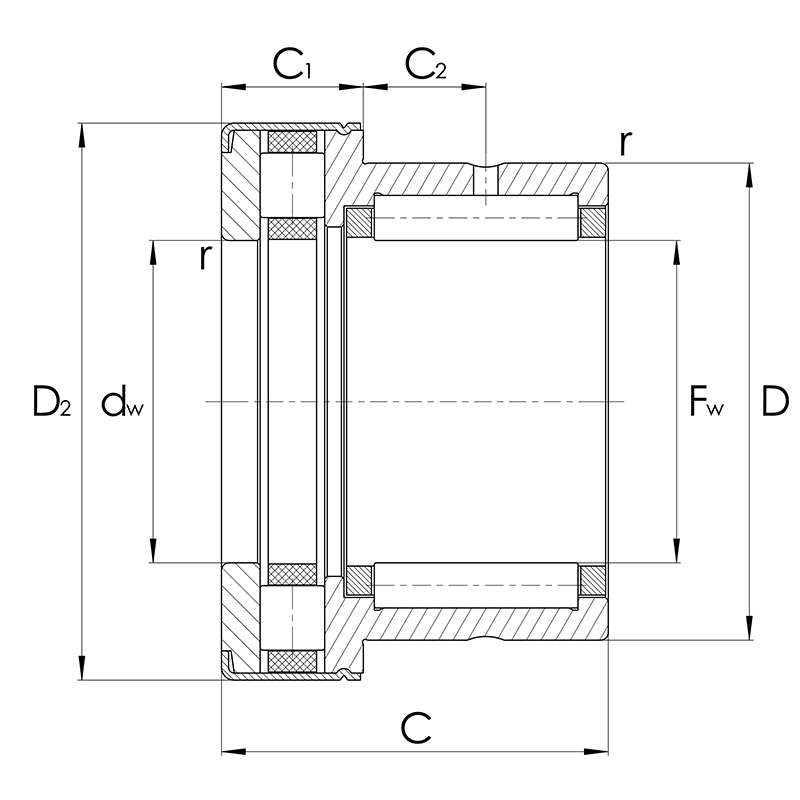

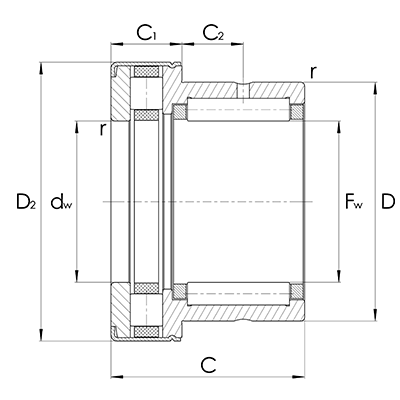

      • NKXR..-Z, axial one-side acting
        NKXR..-Z, axial one-side acting
      • NKXR..-Z, axial one-side acting
        NKXR..-Z, axial one-side acting
      • NKXR..-Z, axial one-side acting
        NKXR..-Z, axial one-side acting
        Description Main dimensions Functions
        Fw D C
        mm mm mm
        SKU Description Main dimensions Functions
        Fw D C
        mm mm mm
        10080552 NKXR15-Z 15.00 24.00 23.00
        10080554 NKXR17-Z 17.00 26.00 25.00
        10080556 NKXR20-Z 20.00 30.00 30.00
        10080558 NKXR25-Z 25.00 37.00 30.00
        10080560 NKXR30-Z 30.00 42.00 30.00
        10080562 NKXR35-Z 35.00 47.00 30.00
        10080564 NKXR40-Z 40.00 52.00 32.00
        10080566 NKXR45-Z 45.00 58.00 32.00
        Online Datasheet (Variants, 3D-View) PDF-Datasheet Link to shop Product request
