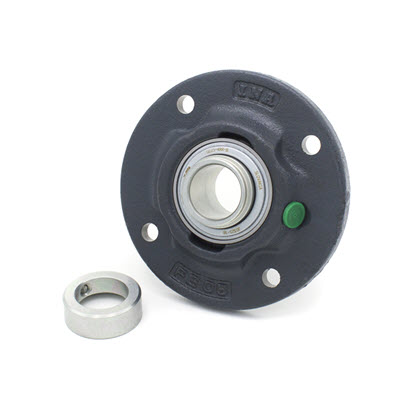

Flange bearing RVFWO50
Main dimensions according to european standards

Designation	Dimension	Remark
d	50.00 mm	shaft diameter
L	44.60 mm
A	230.00 mm
B	31.00 mm
J	66.70 mm
E	187.00 mm
C	19.00 mm
s	23.00 mm
Z	140.00 mm

Designation	Dimension	Remark
	4.600 kg	Weight

Designation	Dimension									Components
	d	A	B	C	E	s	Z	J	L	Housing	Bearing
	mm	mm	mm	mm	mm	mm	mm	mm	mm
RVFWO40	40,00	194,00	27,00	17,00	158,00	19,00	115,00	54,60	39,10	GG.RVFWO08	HC308
RVFWO50	50,00	230,00	31,00	19,00	187,00	23,00	140,00	66,70	44,60	GG.RVFWO10	HC310
RVFWO60	60,00	256,00	36,00	22,00	212,00	23,00	160,00	68,40	47,90	GG.RVFWO12	HC312
RVFWO70	70,00	300,00	43,00	25,00	252,00	25,00	185,00	75,40	49,90	GG.RVFWO14	HC314
RVFWO80	80,00	275,00	50,00	22,00	235,00	22,00	200,00	93,70	56,70	GG.RVFWO16	HC316
RVFWO90	90,00	300,00	50,00	22,00	260,00	22,00	220,00	101,00	62,50	GG.RVFWO18	HC318
RVFWO100	100,00	340,00	57,00	27,00	295,00	26,00	250,00	109,50	68,50	GG.RVFWO20	HC320

Designation	Dimension									Components
	d	A	B	C	E	s	Z	J	L	Housing	Bearing
	mm	mm	mm	mm	mm	mm	mm	mm	mm
RVFWO50	50,00	230,00	31,00	19,00	187,00	23,00	140,00	66,70	44,60	GG.RVFWO10	HC310

No more data could be loaded.

Name	Brand	Webshop	Notice
RVFWO50	HFH		Premium quality, house brand

No more data could be loaded.

Our 3D models serve as visual support and are created with great care and the information is checked for accuracy. However, no liability can be accepted for any incorrect or incomplete information. The release of step files is reserved exclusively for corporate customers. To request a step file, please use the step file request link.

3D WebGL

Step-file

Flange bearing

RVFWO

All statements without guarantee. Please note the following product information
