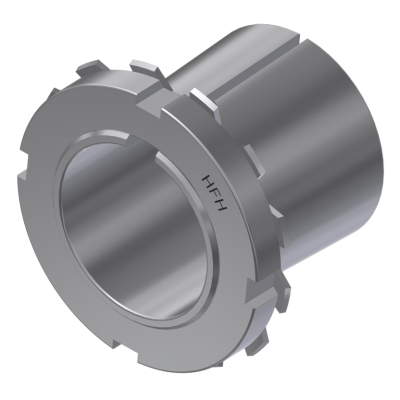

adapter sleeve H3936 Cone: 1:12 DIN 5415
Main dimensions for H3936
| Designation | Dimension | Remark |
|---|---|---|
| d | 180.00 mm | |
| d1 | 160.00 mm | shaft diameter |
| c | 30.00 mm | |
| D | 210.00 mm | |
| J | 87.00 mm |
Performance data for H3936
| Designation | Dimension | Remark |
|---|---|---|
| M 180 x 3 | screw thread |
Other sizes of H3936 series H3900 (7)
| Designation | Dimension | |||||||
|---|---|---|---|---|---|---|---|---|
| d | d1 | c | c1 | D | J | screw thread | Cone | |
| mm | mm | mm | mm | mm | mm | |||
| H3924 | 120,00 | 110,00 | 22,00 | - | 145,00 | 60,00 | M 120 x 2 | 1:12 |
| H3926 | 130,00 | 115,00 | 23,00 | - | 155,00 | 65,00 | M 130 x 2 | 1:12 |
| H3928 | 140,00 | 125,00 | 24,00 | - | 165,00 | 66,00 | M 140 x 2 | 1:12 |
| H3930 | 150,00 | 135,00 | 26,00 | - | 180,00 | 76,00 | M 150 x 2 | 1:12 |
| H3932 | 160,00 | 140,00 | 28,00 | - | 190,00 | 78,00 | M 160 x 3 | 1:12 |
| H3934 | 170,00 | 150,00 | 29,00 | - | 200,00 | 79,00 | M 170 x 3 | 1:12 |
| H3936 | 180,00 | 160,00 | 30,00 | - | 210,00 | 87,00 | M 180 x 3 | 1:12 |
