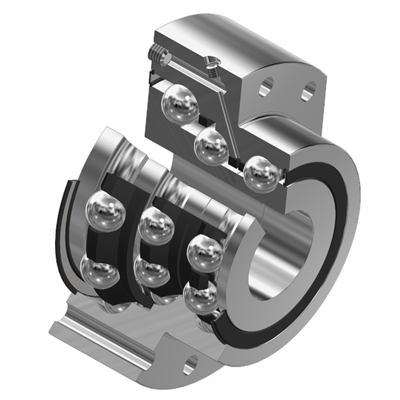

Axial angular contact ball bearing - DKLFA30110-2RS

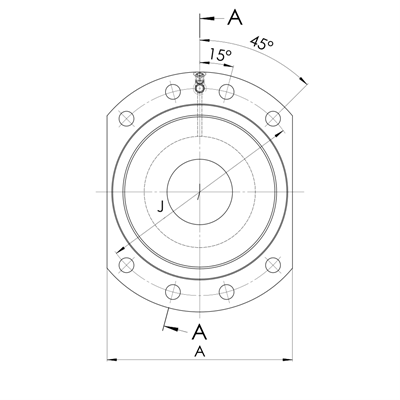

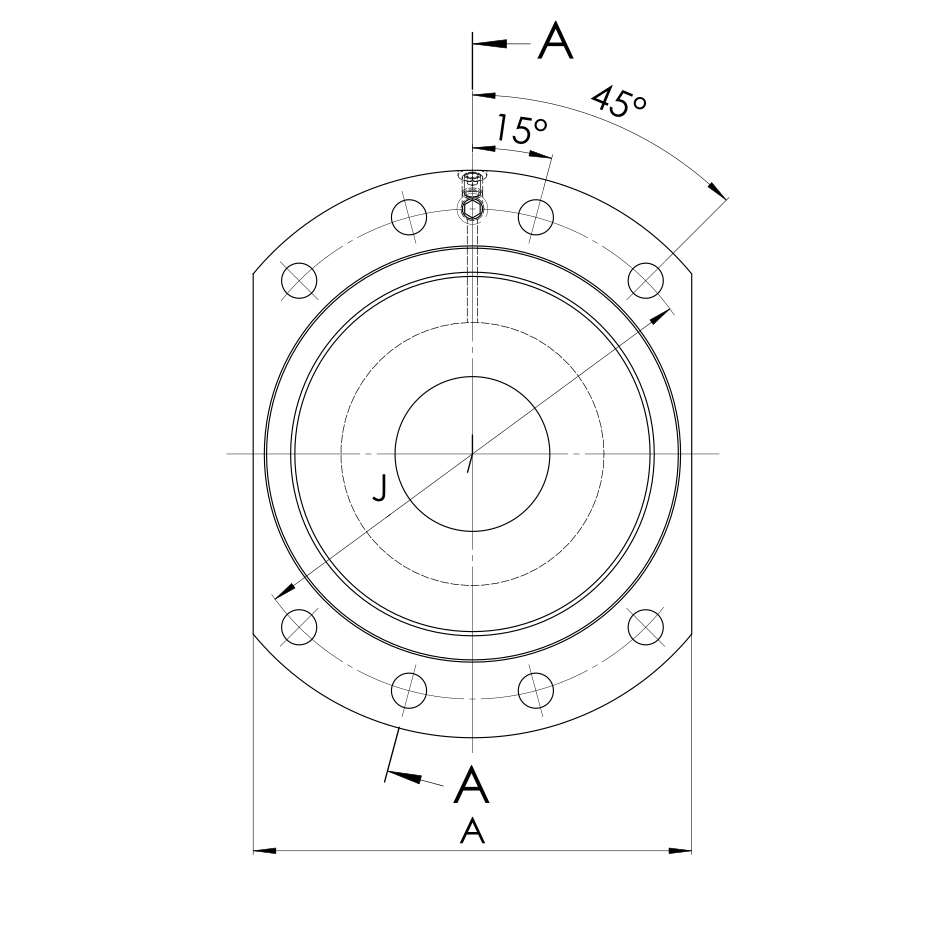

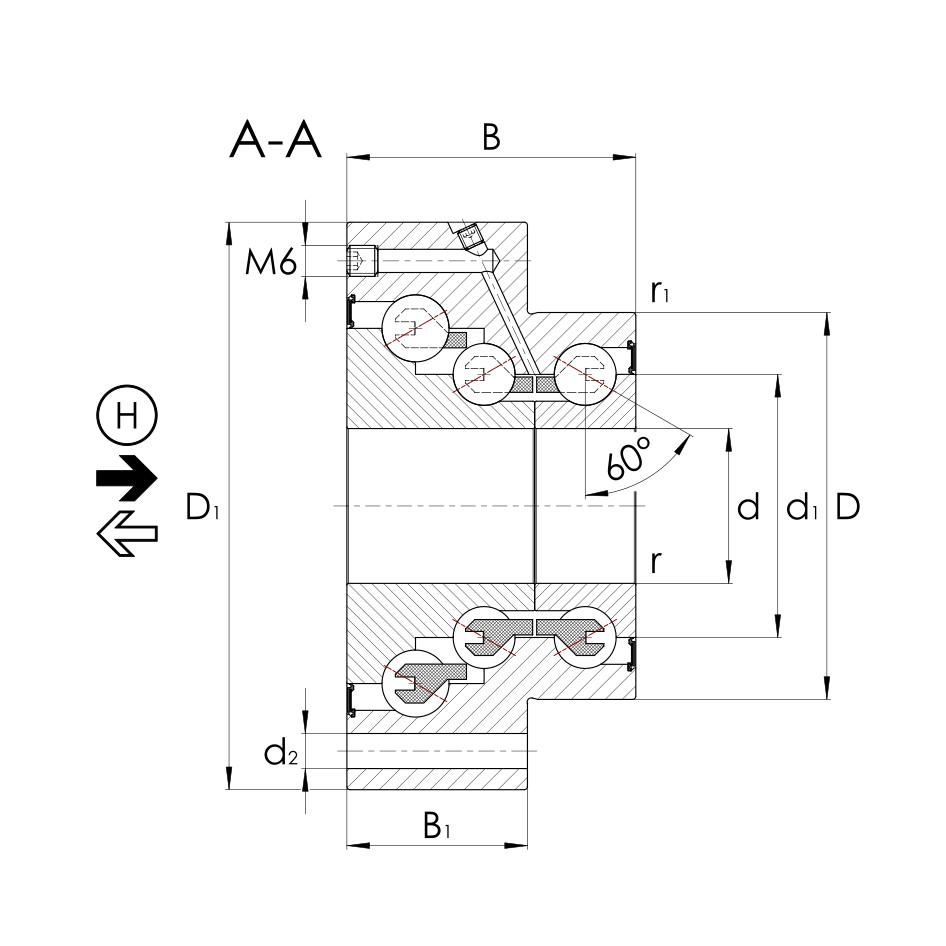

Main dimensions for DKLFA30110-2RS
| Designation | Dimension | Remark |
|---|---|---|
| d | 30.00 mm | shaft diameter (tolerance: 0 / -0.01 mm) |
| D | 75.00 mm | outer diameter (tolerance: 0 / -0.01 mm) |
| B | 56.00 mm | width (tolerance: -0.25 mm) |
| d1 | 51.00 mm | flange diameter of the inner ring |
| D1 | 110.00 mm | outer diameter of flange |
| B1 | 35.00 mm | height of flange |
| d2 | 8.80 mm | diameter mounting hole |
| J | 95.00 mm | Pitch circle diameter (holes) |
| A | 85.00 mm | width of flange |
| rmin. | 0.30 mm | min. edge distance |
| r1 min. | 0.60 mm | min. edge distance |
| da min. | 47.00 mm | Minimum diameter shaft shoulder |
| da max. | 64.00 mm | Maximum diameter shaft shoulder |
| M8 (10.9) | 8x Fastening screws DIN EN ISO 4762 (not included) |
Performance data for DKLFA30110-2RS
| Designation | Dimension | Remark |
|---|---|---|
| Ca | 59,000 N | dynamic load rating, axial (effect of force left) |
| C0a | 108,000 N | static load rating, axial (effect of force left) |
| Ca | 106,000 N | dynamic load rating, axial (effect of force left, main load direction, load always required) |
| C0a | 257,000 N | static load rating, axial (effect of force right, main load direction, load always required) |
| Cu | 6,700 N | fatigue limit load |
| nG Fett | 3,500 min-1 | Limiting speed with greasing |
| nGϑ | 1,600 min-1 | Thermally permissible speed |
| MR | 1.50 Nm | Bearing friction torque |
| 5 µm | Axial runout | |
| Mm | 3.230 kg * cm2 | Mass moment of inertia |
| CkL | 650 Nm/mrad | Tilting stiffness |
| CaL | 1,300 N/µm | Rigidity (effect of force left, axial) |
| CaL | 1,600 N/µm | Rigidity (effect of force right, axial) |
| 2.500 kg | Weight |
Other sizes of DKLFA30110-2RS series DKLFA (0)
No more data could be loaded.
Variants of DKLFA30110-2RS (0)
No more data could be loaded.
Alternate brands for DKLFA30110-2RS (0)
No more data could be loaded.
Product features for DKLFA30110-2RS (2)
| Properties | Suffix | Description |
|---|---|---|
| Sealing | 2RS | Double side lip seal |
| Characteristic | - | heavy load type |
Für dieses Produkt ist ein 3D-Model verfügbar
Our 3D models serve as visual support and are created with great care and the information is checked for accuracy. However, no liability can be accepted for any incorrect or incomplete information. The release of step files is reserved exclusively for corporate customers. To request a step file, please use the step file request link.
3D WebGL
Step-file
