Axial angular contact ball bearing - DKLFA30100-2RS
Main dimensions for DKLFA30100-2RS
| Designation | Dimension | Remark |
|---|---|---|
| d | 30.00 mm | shaft diameter (tolerance: 0 / -0.01 mm) |
| D | 62.00 mm | outer diameter (tolerance: 0 / -0.01 mm) |
| B | 38.00 mm | width (tolerance: -0.25 mm) |
| d1 | 45.50 mm | flange diameter of the inner ring |
| D1 | 100.00 mm | outer diameter of flange |
| B1 | 22.00 mm | height of flange |
| d2 | 8.80 mm | diameter mounting hole |
| J | 80.00 mm | Pitch circle diameter (holes) |
| A | 72.00 mm | width of flange |
| rmin. | 0.30 mm | min. edge distance |
| r1 min. | 0.60 mm | min. edge distance |

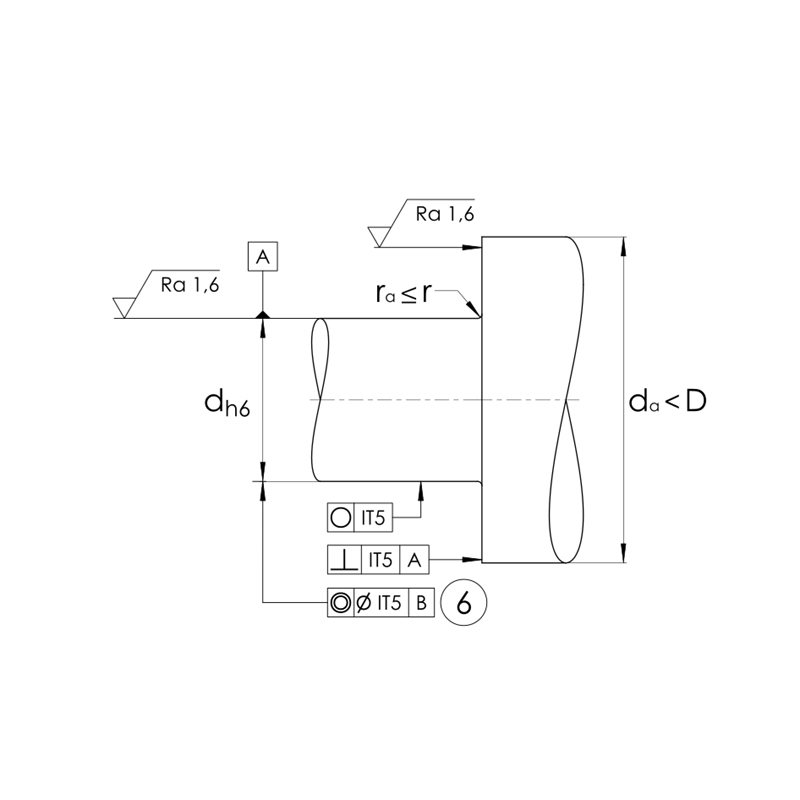

| da min. | 40.00 mm | Minimum diameter shaft shoulder |
| da max. | 53.00 mm | Maximum diameter shaft shoulder |
| M8 (10.9) | 6x Fastening screws DIN EN ISO 4762 (not included) |
Performance data for DKLFA30100-2RS
| Designation | Dimension | Remark |
|---|---|---|
| Ca | 29,000 N | dynamic load rating, axial (effect of force left) |
| C0a | 64,000 N | static load rating, axial (effect of force left) |
| Ca | 55,000 N | dynamic load rating, axial (effect of force left, main load direction, load always required) |
| C0a | 165,000 N | static load rating, axial (effect of force right, main load direction, load always required) |
| Cu | 4,550 N | fatigue limit load |
| nG Fett | 4,000 min-1 | Limiting speed with greasing |
| nGϑ | 1,800 min-1 | Thermally permissible speed |
| MR | 0.75 Nm | Bearing friction torque |
| 5 µm | Axial runout | |
| Mm | 1.700 kg * cm2 | Mass moment of inertia |
| CkL | 500 Nm/mrad | Tilting stiffness |
| CaL | 900 N/µm | Rigidity (effect of force left, axial) |
| CaL | 1,400 N/µm | Rigidity (effect of force right, axial) |
| 1.000 kg | Weight |
Other sizes of DKLFA30100-2RS series DKLFA (0)
No more data could be loaded.
Variants of DKLFA30100-2RS (0)
No more data could be loaded.
Accessories to DKLFA30100-2RS (3)
| Type | Designation | Brand | Full designation |
|---|---|---|---|
| AM30 | Precision locknut for axial clamping | HFH | Precision locknut for axial clamping - AM30 |
| ZM35 | Precision locknut for radial clamping | HFH | Precision locknut for radial clamping - ZM35 |
| ZMA30/52 | Precision locknut for radial clamping | HFH | Precision locknut for radial clamping - ZMA30/52 |
Alternate brands for DKLFA30100-2RS (0)
No more data could be loaded.
Product features for DKLFA30100-2RS (1)
| Properties | Suffix | Description |
|---|---|---|
| Sealing | 2RS | Double side lip seal |
