Stud type track rollers KRV19-PP

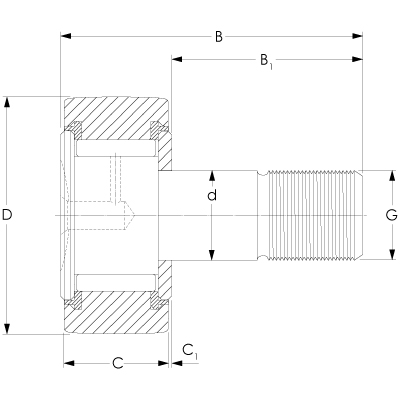

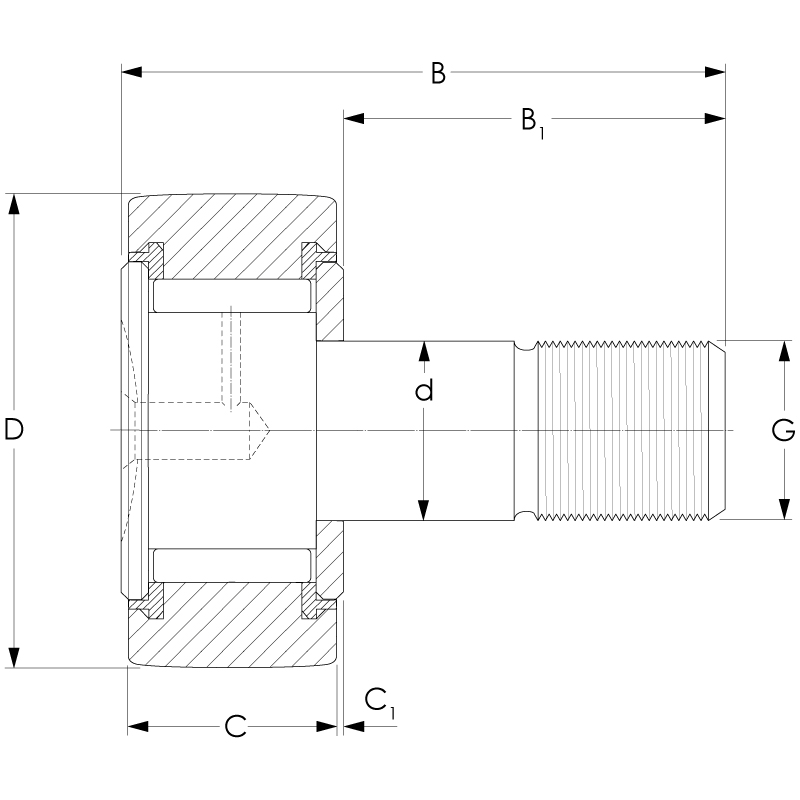

Designation	Dimension	Remark
D	19.00 mm	outer diameter, Track roller
d	8.00 mm	diameter of roller stud / stud
B	32.00 mm	Width of roll pin
C	11.00 mm	Width of the outer ring
C₁	0.60 mm	overhang axial washer

Designation	Dimension	Remark
C_r	5,000 N	dynamic load rating, radial
C_0r	7,600 N	static load rating, radial
n_G	9,500 min^-1	Limiting speed with greasing
	0.032 kg	Weight

Designation	Dimension							Performance data
	D	d	B	B₁	C	C₁	G	C_r	C_0r	n_{G max}
	mm	mm	mm	mm	mm	mm		N	N	min^-1
KRV16-PP	16.00	6.00	28.00	-	11.00	0.60	-	4,500	6,200	10,500
KRV19-PP	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500
KRV32-PP	32.00	12.00	40.00	-	14.00	0.60	-	9,000	14,500	7,000
KRV35-PP	35.00	16.00	52.00	-	18.00	0.80	-	11,700	22,000	6,500
KRV40-PP	40.00	18.00	58.00	-	20.00	0.80	-	13,500	25,200	5,300
KRV72-PP	72.00	24.00	80.00	-	29.00	0.80	-	31,300	76,000	4,300
KRV80-PP	80.00	30.00	100.00	-	35.00	1.00	-	43,400	108,000	3,400
KRV90-PP	90.00	30.00	100.00	-	35.00	1.00	-	45,000	116,000	3,400

Designation	Dimension							Performance data
	D	d	B	B₁	C	C₁	G	C_r	C_0r	n_{G max}
	mm	mm	mm	mm	mm	mm		N	N	min^-1
KRV19-PP	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500
KRV19-X-PP	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500
KRV19-PP-RR	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500
KRV19-X-PP-B	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500
KRV19-X-PP-RR	19.00	8.00	32.00	-	11.00	0.60	-	5,000	7,600	9,500

No more data could be loaded.

Name	Brand	Webshop	Notice
KRV19-PP	HFH		Premium quality, house brand

No more data could be loaded.
