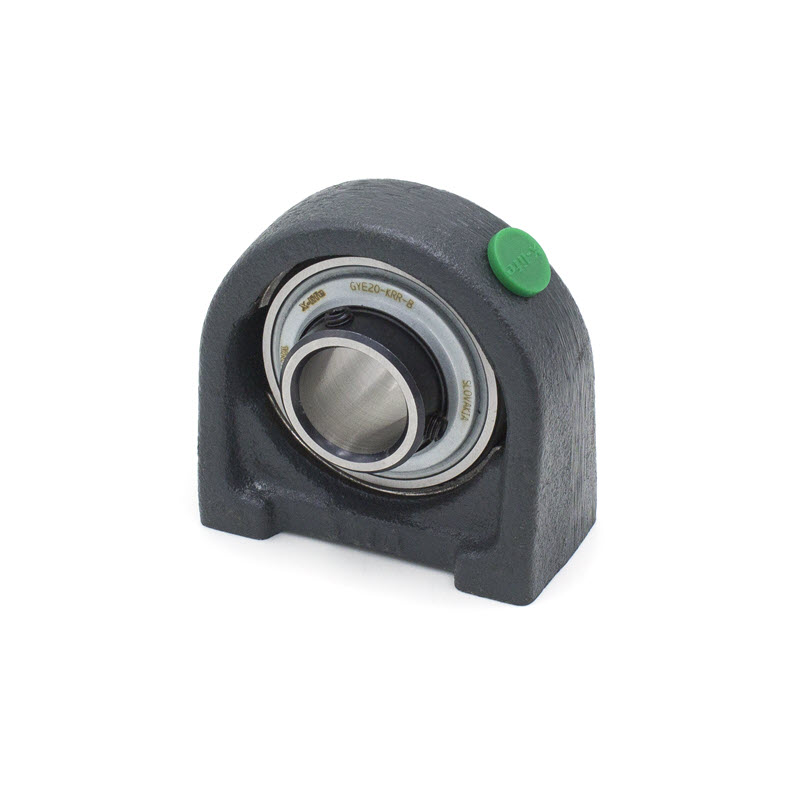

Pillow block housing SWG35A

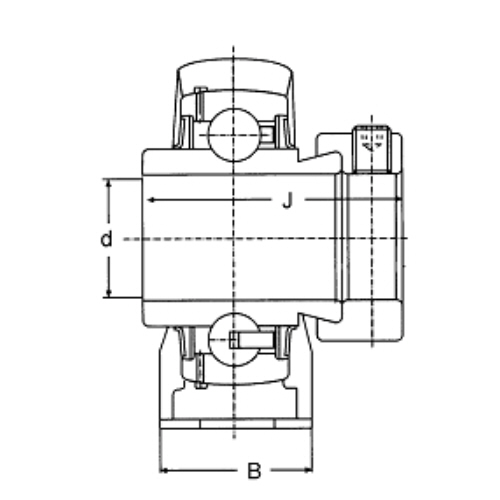

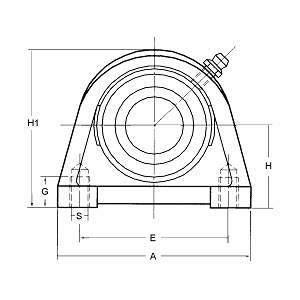

Main dimensions according to european standards
Main dimensions for SWG35A
| Designation | Dimension | Remark |
|---|---|---|
| d | 35.00 mm | shaft diameter |
| H | 47.60 mm | |
| H1 | 93.00 mm | |
| A | 103.00 mm | |
| B | 45.00 mm | |
| S | M10 mm | |
| J | 51.10 mm | |
| E | 82.60 mm | |
| S | M10 |
Performance data for SWG35A
| Designation | Dimension | Remark |
|---|---|---|
| 0.950 kg | Weight |
Other sizes of SWG35A series SWGA (9)
| Designation | Dimension | Components | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | B | C | E | H | H1 | J | S | S1 | S2 | Housing | Bearing | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| SWG20A | 20,00 | 65,00 | 32,00 | - | 50,80 | 33,30 | 64,00 | 43,70 | M8 | - | - | GG.SWG20 | HC204 |
| SWG25A | 25,00 | 70,00 | 36,00 | - | 50,80 | 36,50 | 70,00 | 44,40 | M10 | - | - | GG.SWG25 | HC205 |
| SWG30A | 30,00 | 98,00 | 40,00 | - | 76,20 | 42,90 | 82,00 | 48,40 | M10 | - | - | GG.SWG30 | HC206 |
| SWG35A | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 51,10 | M10 | - | - | GG.SWG35 | HC207 |
| SWG40A | 40,00 | 116,00 | 48,00 | - | 88,90 | 49,20 | 99,00 | 56,30 | M12 | - | - | GG.SWG40 | HC208 |
| SWG45A | 45,00 | 120,00 | 48,00 | - | 95,30 | 54,20 | 107,00 | 56,30 | M12 | - | - | GG.SWG45 | HC209 |
| SWG50A | 50,00 | 135,00 | 54,00 | - | 101,60 | 57,20 | 115,00 | 62,70 | M16 | - | - | GG.SWG50 | HC210 |
| SWG55A | 55,00 | 151,00 | 60,00 | - | 118,00 | 63,50 | 126,00 | 71,40 | M16 | - | - | GG.SWG55 | HC211 |
| SWG60A | 60,00 | 151,00 | 60,00 | - | 118,00 | 69,90 | 140,00 | 77,80 | M16 | - | - | GG.SWG60 | HC212 |
Variants of SWG35A (6)
| Designation | Dimension | Components | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | B | C | E | H | H1 | J | S | S1 | S2 | Housing | Bearing | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| SWG35 | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 38,90 | M10 | - | - | GG.SWG35 | SA207 |
| SWG35S | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 32,00 | M10 | - | - | GG.SWG35 | SB207 |
| SWG35U | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 42,90 | M10 | - | - | GG.SWG35 | UC207 |
| SWG35T | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 51,10 | M10 | - | - | GG.SWG35 | HC207R3 |
| SWG35A | 35,00 | 103,00 | 45,00 | - | 82,60 | 47,60 | 93,00 | 51,10 | M10 | - | - | GG.SWG35 | HC207 |
| SWG40K | 35,00 | 116,00 | 48,00 | - | 88,90 | 49,20 | 99,00 | 46,00 | M12 | - | - | GG.SWG40 | UK208+H |
Accessories to SWG35A (0)
