Clamping housing unit PHUSE30

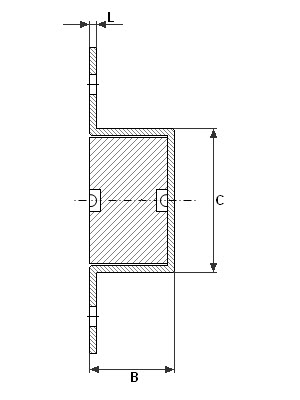

Main dimensions according to european standards

Clamping housing unit PHUSE30

Designation	Dimension	Remark
d	30.00 mm	shaft diameter
L	4.00 mm
L₁	26.70 mm
H	103.00 mm
H₃	88.00 mm
A	187.00 mm
A₁	50.00 mm
B	28.00 mm
B₁	22.00 mm
J	35.80 mm
E	140.00 mm
E₁	80.00 mm
F	20.00 mm
K	M12 mm
C	52.00 mm
s	11.50 mm
G	65.00 mm

Designation	Dimension	Remark
	65	Fastening screws (not included in delivery)
C_r	19,500 N	dynamic load rating, radial

Designation	Dimension																	Components
	d	d₂	A	A₁	B	B₁	C	s	K	J	F	E	E₁	L₁	Q	H	H₃	Housing	Bearing
	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm		mm	mm
PHUSE25	25,00	37,50	187,00	50,00	28,00	22,00	52,00	11,50	M12	31,00	20,00	140,00	80,00	4,00	Rp 1/8	103,00	78,00	GG.PHUSE05	SA205
PHUSE30	30,00	44,00	187,00	50,00	28,00	22,00	52,00	11,50	M12	35,80	20,00	140,00	80,00	4,00	Rp 1/8	103,00	88,00	GG.PHUSE06	SA206
PHUSE35	35,00	51,00	187,00	50,00	28,00	22,00	52,00	11,50	M12	38,90	20,00	140,00	80,00	4,00	Rp 1/8	103,00	98,00	GG.PHUSE07	SA207
PHUSE40	40,00	58,00	256,00	60,00	36,00	30,00	60,00	14,00	M16	43,70	20,00	180,00	100,00	4,00	Rp 1/8	130,00	108,00	GG.PHUSE08	SA208
PHUSE50	50,00	69,00	256,00	60,00	36,00	30,00	60,00	14,00	M16	43,80	20,00	180,00	100,00	4,00	Rp 1/8	130,00	120,00	GG.PHUSE10	SA210

Designation	Dimension																	Components
	d	d₂	A	A₁	B	B₁	C	s	K	J	F	E	E₁	L₁	Q	H	H₃	Housing	Bearing
	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm		mm	mm
PHUSE30	30,00	44,00	187,00	50,00	28,00	22,00	52,00	11,50	M12	35,80	20,00	140,00	80,00	4,00	Rp 1/8	103,00	88,00	GG.PHUSE06	SA206

No more data could be loaded.

Name	Brand	Webshop	Notice
PHUSE30	HFH		Premium quality, house brand

No more data could be loaded.

Our 3D models serve as visual support and are created with great care and the information is checked for accuracy. However, no liability can be accepted for any incorrect or incomplete information. The release of step files is reserved exclusively for corporate customers. To request a step file, please use the step file request link.

3D WebGL

Step-file

Clamping housing unit

Phuse200

All statements without guarantee. Please note the following product information

Funktionen

Image Zoom

Clamping housing unit PHUSE30
Main dimensions according to european standards
