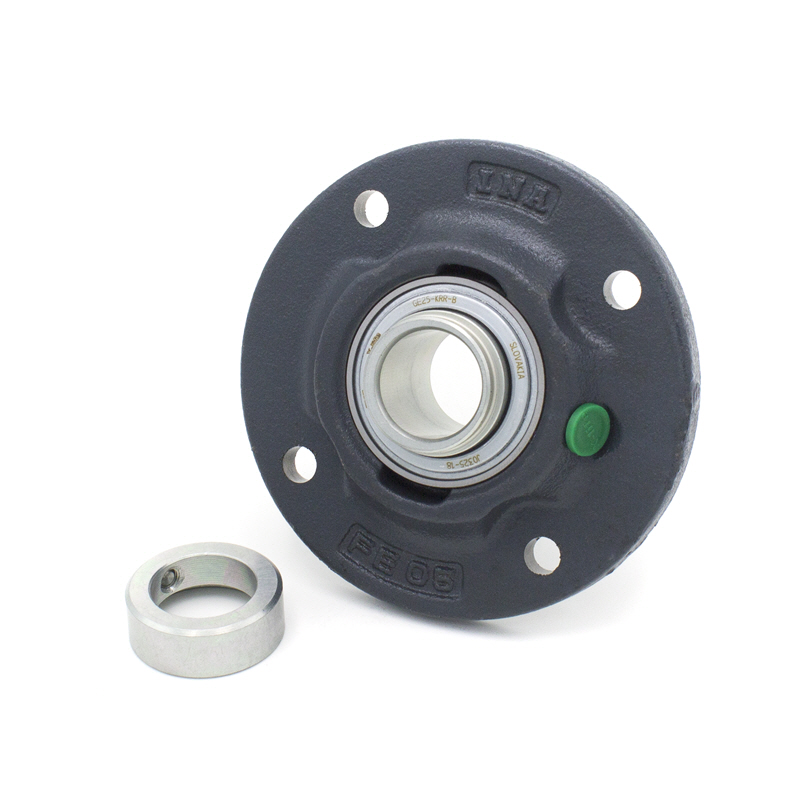

Flange bearing FWSN45
Main dimensions according to european standards
Main dimensions for FWSN45
| Designation | Dimension | Remark |
|---|---|---|
| d | 45.00 mm | shaft diameter |
| L | 40.10 mm | |
| A | 155.00 mm | |
| B | 26.50 mm | |
| J | 43.70 mm | |
| E | 130.00 mm | |
| C | 12.00 mm | |
| s | 14.00 mm | |
| G | 4.00 mm | |
| Z | 105.00 mm |
Performance data for FWSN45
| Designation | Dimension | Remark |
|---|---|---|
| 1.400 kg | Weight |
Other sizes of FWSN45 series FWSN (9)
| Designation | Dimension | Components | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | B | C | E | G | Z | J | L | s | Housing | Bearing | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| FWSN20 | 20,00 | 100,00 | 25,50 | 7,00 | 78,00 | 5,00 | 62,00 | 31,00 | 28,40 | 9,00 | GG.FWSN04 | SA204 |
| FWSN25 | 25,00 | 115,00 | 22,00 | 9,00 | 92,00 | 3,00 | 75,00 | 31,00 | 29,90 | 9,00 | GG.FWSN05 | SA205 |
| FWSN30 | 30,00 | 127,00 | 22,50 | 9,50 | 105,00 | 3,00 | 85,00 | 35,70 | 34,20 | 9,00 | GG.FWSN06 | SA206 |
| FWSN35 | 35,00 | 135,00 | 22,50 | 10,00 | 110,00 | 4,00 | 90,00 | 38,90 | 35,90 | 11,50 | GG.FWSN07 | SA207 |
| FWSN40 | 40,00 | 145,00 | 26,00 | 11,50 | 120,00 | 4,00 | 100,00 | 43,70 | 40,10 | 11,50 | GG.FWSN08 | SA208 |
| FWSN45 | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 43,70 | 40,10 | 14,00 | GG.FWSN09 | SA209 |
| FWSN50 | 50,00 | 165,00 | 28,00 | 13,00 | 136,00 | 4,00 | 115,00 | 43,70 | 41,10 | 14,00 | GG.FWSN10 | SA210 |
| FWSN55 | 55,00 | 185,00 | 43,00 | 15,00 | 150,00 | 12,00 | 125,00 | 48,40 | 41,10 | 14,00 | GG.FWSN11 | SA211 |
| FWSN60 | 60,00 | 195,00 | 33,00 | 16,00 | 165,00 | 4,00 | 140,00 | 53,10 | 52,80 | 14,00 | GG.FWSN12 | SA212 |
Variants of FWSN45 (6)
| Designation | Dimension | Components | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | B | C | E | G | Z | J | L | s | Housing | Bearing | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| FWSN45 | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 43,70 | 40,10 | 14,00 | GG.FWSN09 | SA209 |
| FWSN45U | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 49,20 | 37,70 | 14,00 | GG.FWSN09 | UC209 |
| FWSN45A | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 56,30 | 42,50 | 14,00 | GG.FWSN09 | HC209 |
| FWSN45T | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 56,30 | 42,50 | 14,00 | GG.FWSN09 | HC209R3 |
| FWSN50K | 45,00 | 165,00 | 28,00 | 13,00 | 136,00 | 4,00 | 115,00 | 55,00 | 31,50 | 14,00 | GG.FWSN10 | UK210 |
| FWSN45S | 45,00 | 155,00 | 26,50 | 12,00 | 130,00 | 4,00 | 105,00 | 41,20 | 37,70 | 14,00 | GG.FWSN09 | SB209 |
