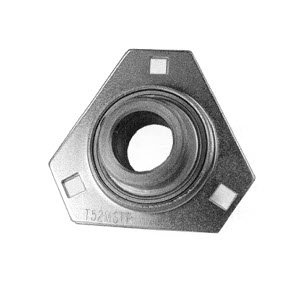

Flange bearing (sheet steel) DBF20
Main dimensions according to european standards

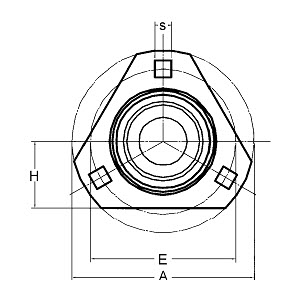

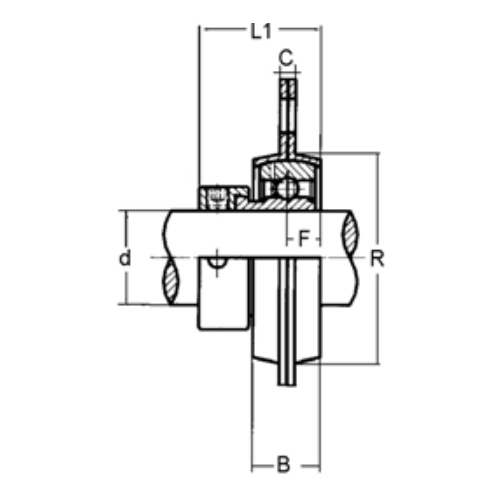

Main dimensions for DBF20
| Designation | Dimension | Remark |
|---|---|---|
| d | 20.00 mm | shaft diameter |
| L | 32.00 mm | |
| H | 33.30 mm | |
| A | 90.50 mm | |
| B | 16.00 mm | |
| D | 55.00 mm | |
| E | 71.50 mm | |
| F | 8.00 mm | |
| C | 4.00 mm | |
| s | 8.70 mm | |
| R | 55.00 mm |
Performance data for DBF20
| Designation | Dimension | Remark |
|---|---|---|
| 0.120 kg | Weight |
Other sizes of DBF20 series DBF (7)
| Designation | Dimension | Components | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | B | C | D | E | F | H | L | R | s | Housing | Bearing | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| DBF12 | 12,00 | 81,00 | 14,00 | 4,00 | 48,00 | 63,50 | 7,00 | 29,00 | 29,60 | 48,00 | 7,50 | GS.DBF01 | SA201 |
| DBF15 | 15,00 | 81,00 | 14,00 | 4,00 | 48,00 | 63,50 | 7,00 | 29,00 | 29,60 | 48,00 | 7,50 | GS.DBF02 | SA202 |
| DBF17 | 17,00 | 81,00 | 14,00 | 4,00 | 48,00 | 63,50 | 7,00 | 29,00 | 29,60 | 48,00 | 7,50 | GS.DBF03 | SA203 |
| DBF20 | 20,00 | 90,50 | 16,00 | 4,00 | 55,00 | 71,50 | 8,00 | 33,30 | 32,00 | 55,00 | 8,70 | GS.DBF04 | SA204 |
| DBF25 | 25,00 | 95,30 | 18,00 | 4,00 | 60,00 | 76,00 | 9,00 | 34,90 | 32,50 | 60,00 | 8,70 | GS.DBF05 | SA205 |
| DBF30 | 30,00 | 112,70 | 18,00 | 5,00 | 71,00 | 90,50 | 9,00 | 38,10 | 36,70 | 71,00 | 10,50 | GS.DBF06 | SA206 |
| DBF35 | 35,00 | 127,00 | 21,00 | 5,00 | 81,00 | 100,00 | 10,50 | 44,50 | 41,00 | 81,00 | 10,50 | GS.DBF07 | SA207 |
Accessories to DBF20 (0)
No more data could be loaded.
Alternate brands for DBF20 (1)
| Name | Brand | Webshop | Notice |
|---|---|---|---|
| DBF20 | HFH | Premium quality, house brand |
Product features for DBF20 (0)
No more data could be loaded.
Für dieses Produkt ist ein 3D-Model verfügbar
Our 3D models serve as visual support and are created with great care and the information is checked for accuracy. However, no liability can be accepted for any incorrect or incomplete information. The release of step files is reserved exclusively for corporate customers. To request a step file, please use the step file request link.
3D WebGL
Step-file
Variants of DBF20 (1)
All statements without guarantee. Please note the following product information
