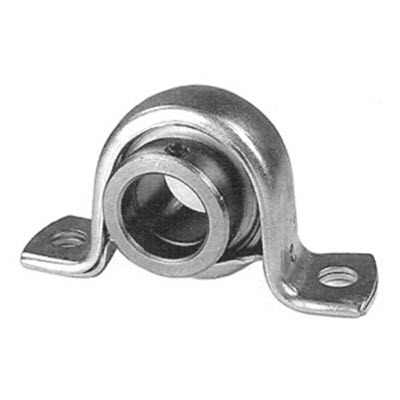

Sheet steel pillow block unit BS30S

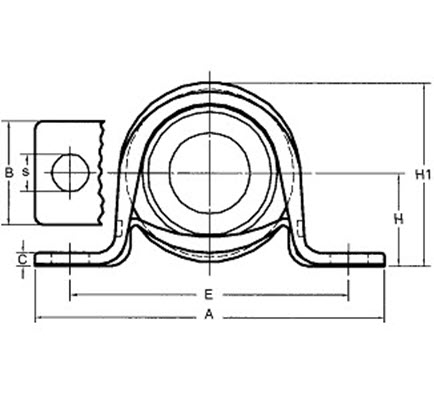

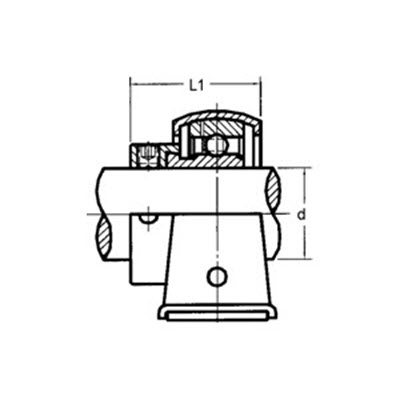

Main dimensions according to european standards

Designation	Dimension	Remark
d	30.00 mm	shaft diameter
L	40.00 mm
H	33.30 mm
H₁	66.30 mm
A	117.00 mm
B	38.00 mm
E	95.00 mm
C	4.00 mm
s	11.00 mm

Designation	Dimension	Remark
	0.250 kg	Weight

Designation	Dimension									Components
	d	A	B	C	E	H	H₁	L	s	Housing	Bearing
	mm	mm	mm	mm	mm	mm		mm	mm
BS12S	12,00	86,00	25,00	3,20	68,00	22,20	43,80	28,50	9,50	B-BS12	SB201
BS15S	15,00	86,00	25,00	3,20	68,00	22,20	43,80	28,50	9,50	B-BS15	SB202
BS17S	17,00	86,00	25,00	3,20	68,00	22,20	43,80	28,50	9,50	B-BS17	SB203
BS20S	20,00	98,00	32,00	3,20	76,00	25,40	50,50	34,00	9,50	B-BS20	SB204
BS25S	25,00	108,00	32,00	4,00	86,00	28,60	56,60	35,50	11,00	B-BS25	SB205
BS30S	30,00	117,00	38,00	4,00	95,00	33,30	66,30	40,00	11,00	B-BS30	SB206
BS35S	35,00	129,00	42,00	4,60	106,00	39,70	78,00	46,50	11,00	B-BS35	SB207

Designation	Dimension									Components
	d	A	B	C	E	H	H₁	L	s	Housing	Bearing
	mm	mm	mm	mm	mm	mm		mm	mm
BS30	30,00	117,00	38,00	4,00	95,00	33,30	66,30	45,70	11,00	B-BS30	SA206
BS30S	30,00	117,00	38,00	4,00	95,00	33,30	66,30	40,00	11,00	B-BS30	SB206

No more data could be loaded.

Name	Brand	Webshop	Notice
BS30S	HFH		Premium quality, house brand

No more data could be loaded.

Our 3D models serve as visual support and are created with great care and the information is checked for accuracy. However, no liability can be accepted for any incorrect or incomplete information. The release of step files is reserved exclusively for corporate customers. To request a step file, please use the step file request link.

3D WebGL

Step-file

Sheet steel pillow block unit

All statements without guarantee. Please note the following product information
